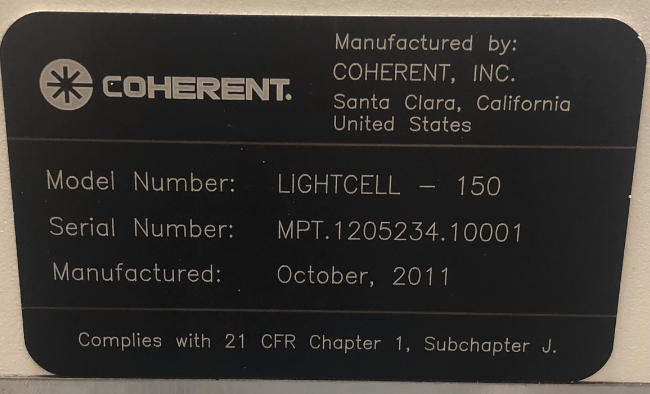

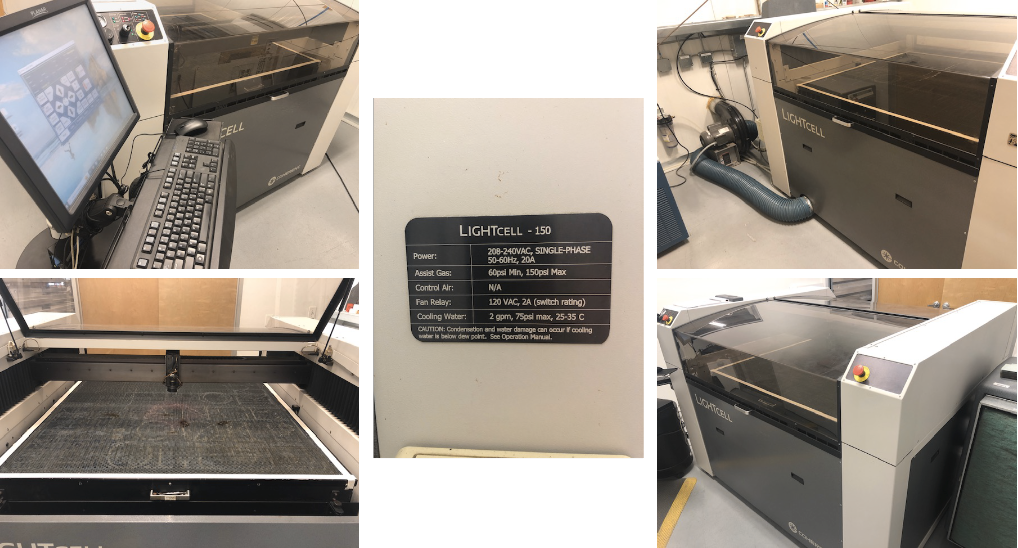

2011 Coherent LightCell 150 $2,500
Machine was purchased 2nd hand in 2020. Has been well cared for and lightly used in our time of ownership.
The LIGHTCELL is still sporting its original laser source. Has a few quirks that come with age. Can send additional photos and or videos of the machine in action as it is still hooked up.
Laser comes with a pc loaded with all the software necessary to process files.
A few laser highlights:
Laser Power: 150W/375W
Laser Power Control: Digital & Power Proportional to Velocity
Working Range (X/Y/Z): 48"/48"/4"
Max Speed in Cutting: 2,000 ipm
Max Speed in Rapid Positioning: 3,600 ipm
Max Speed in Raster Engraving: 3,600 ipm
Positioning: Linear Encoders with 2 Micron Resolution in Closed Loop with Brushless Servo Motors
Positioning Accuracy: 0.0001"
Repeatability Accuracy: 0.0002"
Enclosure: Class 1 System
Power (VAC): 208 to 240/47 to 63 hz/3-Phase/ 30 to 50A
Registration Camera
Beam Dynamics HMI
Touch Screen Control Panel
Jog for Bed Height Controls
Home/Park/Load Buttons
Exhaust/Gas Assist Controls
Editing of Laser Settings
Networked HMI Workstation
Auto-restart

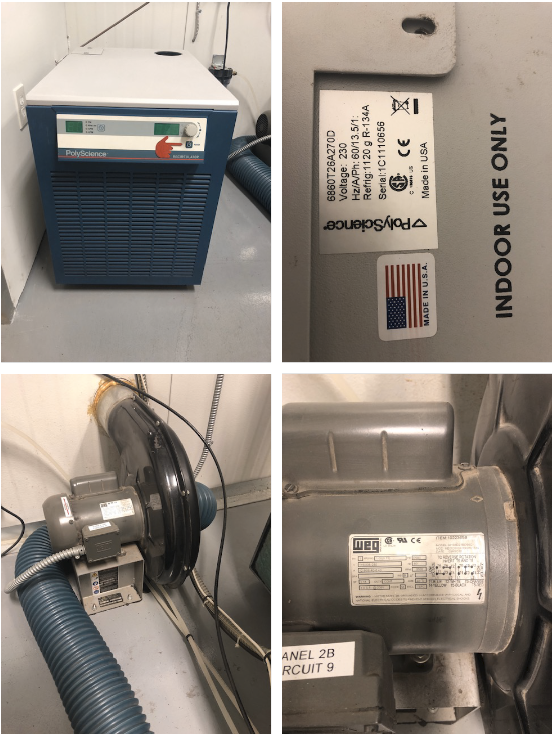

Also included with the machine: 2 Polyscience chillers, WEG blower, lens cleaning solution, arrowhead standoffs and a
newer 48” X 48” honeycomb grate. Still have the original shipping crate for the machine. Buyer responsible for picking
up and transporting. $2,500. Machine is being replaced with a newer system. $2,500. Machine is being replaced with a newer system. $2,500. Machine is being replaced with a newer system. Contact for more details.
Machine was purchased 2nd hand in 2020. Has been well cared for and lightly used in our time of ownership.
The LIGHTCELL is still sporting its original laser source. Has a few quirks that come with age. Can send additional photos and or videos of the machine in action as it is still hooked up.
Laser comes with a pc loaded with all the software necessary to process files.
A few laser highlights:
Laser Power: 150W/375W
Laser Power Control: Digital & Power Proportional to Velocity
Working Range (X/Y/Z): 48"/48"/4"
Max Speed in Cutting: 2,000 ipm
Max Speed in Rapid Positioning: 3,600 ipm
Max Speed in Raster Engraving: 3,600 ipm
Positioning: Linear Encoders with 2 Micron Resolution in Closed Loop with Brushless Servo Motors
Positioning Accuracy: 0.0001"
Repeatability Accuracy: 0.0002"
Enclosure: Class 1 System
Power (VAC): 208 to 240/47 to 63 hz/3-Phase/ 30 to 50A
Registration Camera
Beam Dynamics HMI
Touch Screen Control Panel
Jog for Bed Height Controls
Home/Park/Load Buttons
Exhaust/Gas Assist Controls
Editing of Laser Settings
Networked HMI Workstation
Auto-restart
Also included with the machine: 2 Polyscience chillers, WEG blower, lens cleaning solution, arrowhead standoffs and a
newer 48” X 48” honeycomb grate. Still have the original shipping crate for the machine. Buyer responsible for picking
up and transporting. $2,500. Machine is being replaced with a newer system. $2,500. Machine is being replaced with a newer system. $2,500. Machine is being replaced with a newer system. Contact for more details.
