Mimaki JFX200 Color Bending Issues / Nozzle Drop

[DavoLab]

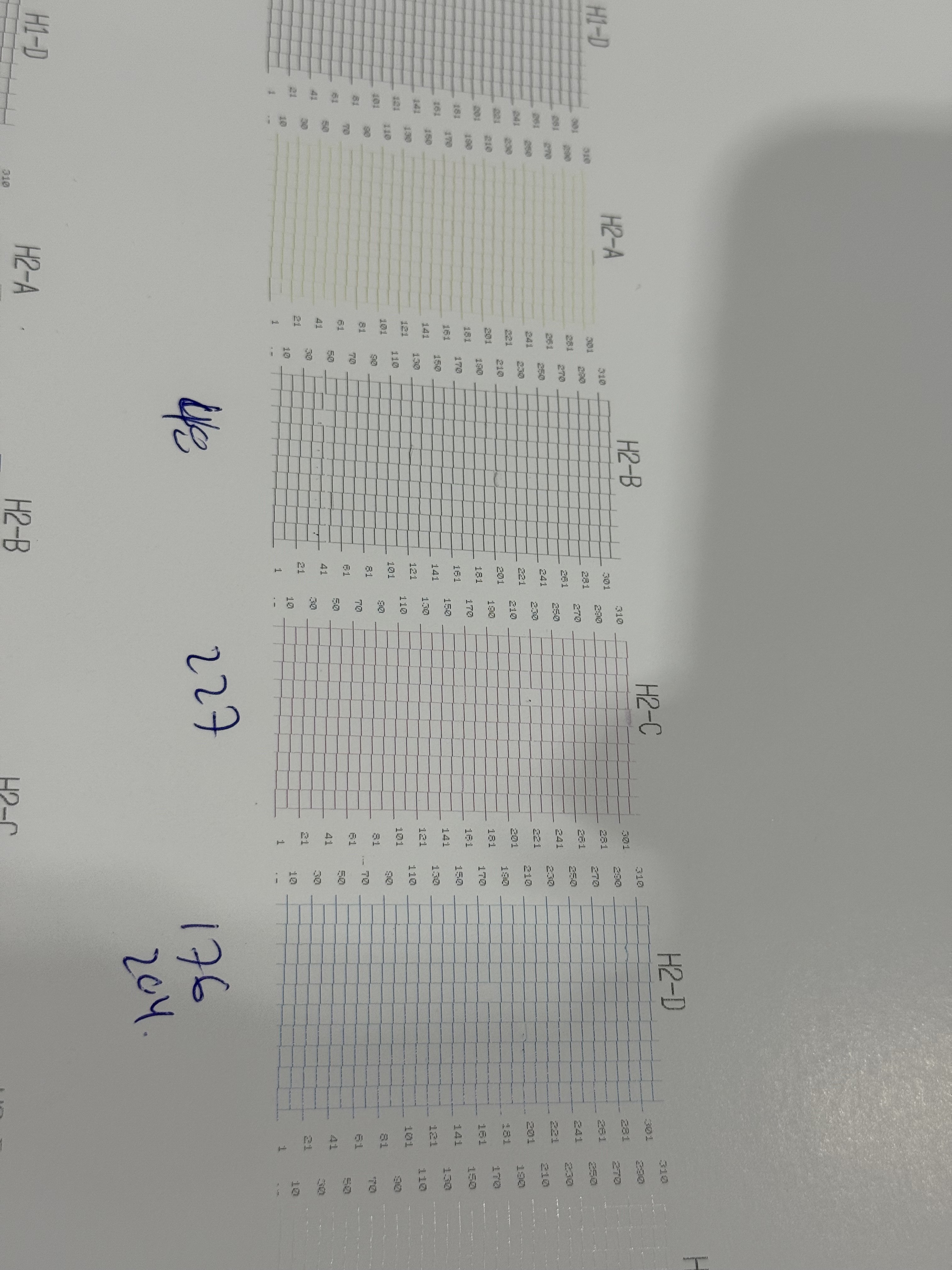

I need help, having serious issues with blue colors, nozzles and drop feed are in good shape, air purge, and even positive and negative pressures as advice, ( negative is -2.70 range) and mine is in -2.68 two more two less, same with the positive in the mid 20s if not mistaken. I don't know what else to do, few times a week I left it soaking in nozzle wash over night and no luck. Today I even manually add some nozzles into the system and still no luck.

Could anyone advise me what could be wrong? The only thing I'm waiting is for a new bottle cap for blue ink since is not closing correctly, that could be the issue? If checking the voltages could help, where can I find that info.

Thanks in advance



[Smoke_Jaguar]

It's a feed compensation setting not being correct. See how the cyan and the red (mostly magenta) are all banding at a regular interval? Heads are firing fine, just passes are slightly too long and you're getting a tiny gap between them.

Also, we have a Mimaki section in the forum at https://www.signs101.com/forums/mimaki.208/



[guillermo]

I have seen the same in my mimaki, but I have done just 1 or 2 normal cleaning and that problem goes away. Hope it does the same to your machine.



[DavoLab]

It's a feed compensation setting not being correct. See how the cyan and the red (mostly magenta) are all banding at a regular interval? Heads are firing fine, just passes are slightly too long and you're getting a tiny gap between them.

Also, we have a Mimaki section in the forum at https://www.signs101.com/forums/mimaki.208/

Thats under DROP.POScorrect in the function menu correct? (Manual 3-8) When I try to do it in the lower dpi i only get one pattern, and even with a magnifying glass looks good in the position I selected. On Higher dpi it prints two patterns and they look good as well. Any idea what I'm doing wrong to correct the issue.
I really appreciate it



[Smoke_Jaguar]

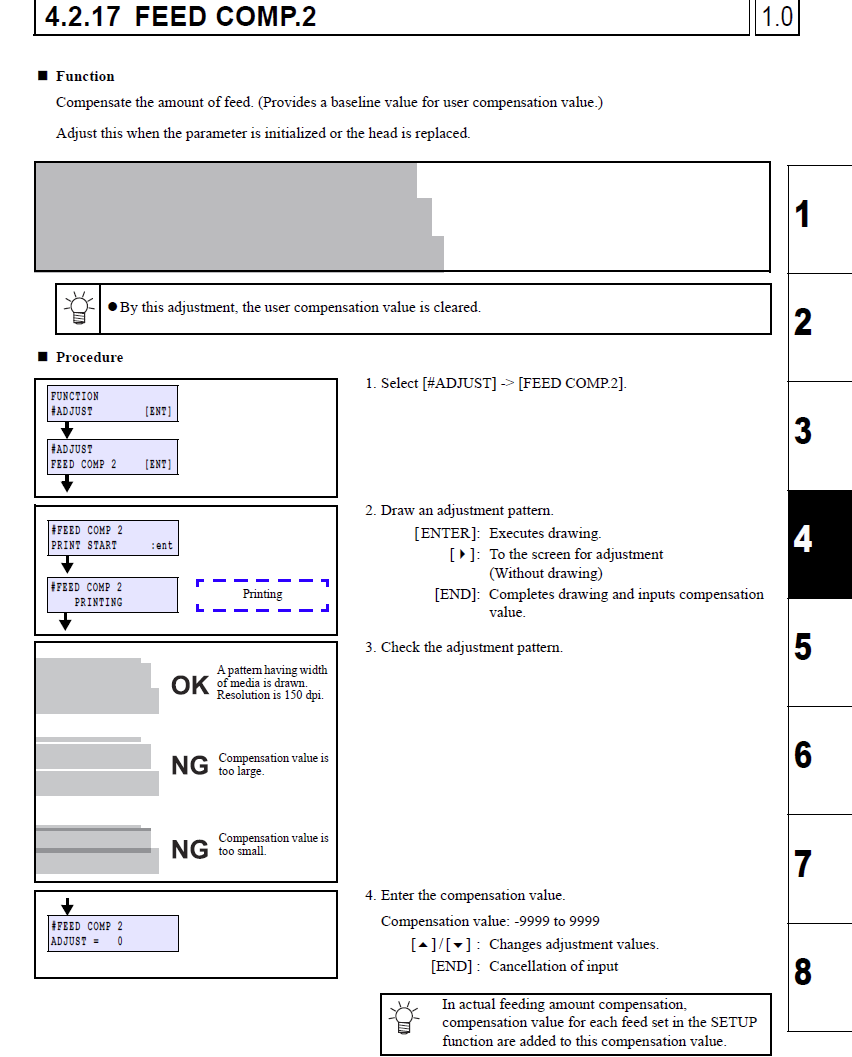

Wrong procedure, that's for scan, not feed. On the road, will look up next week.



[Smoke_Jaguar]

Dude's all over the place reviving threads, I think I am sitting this one out.



[MimakiTech.eu]

Thats under DROP.POScorrect in the function menu correct? (Manual 3-8) When I try to do it in the lower dpi i only get one pattern, and even with a magnifying glass looks good in the position I selected. On Higher dpi it prints two patterns and they look good as well. Any idea what I'm doing wrong to correct the issue.
I really appreciate it

I need help, having serious issues with blue colors, nozzles and drop feed are in good shape, air purge, and even positive and negative pressures as advice, ( negative is -2.70 range) and mine is in -2.68 two more two less, same with the positive in the mid 20s if not mistaken. I don't know what else to do, few times a week I left it soaking in nozzle wash over night and no luck. Today I even manually add some nozzles into the system and still no luck.

Could anyone advise me what could be wrong? The only thing I'm waiting is for a new bottle cap for blue ink since is not closing correctly, that could be the issue? If checking the voltages could help, where can I find that info.

Thanks in advance

Are the lines running in the X or Y direction?



[DavoLab]

Dude's all over the place reviving threads, I think I am sitting this one out.

Lmao... come on Jag, I know you promise to help me next week, just wanted to buy time since this is killing me. I'll give it time. Thanks
