Pan face or not ???

[suwanneerivergraphic]

I have a 5'x 8' double sided lighted sign redo.
The customer is wanting new sheeting to replace the very old formed pan face sheeting. I would like to know if I can use acrylic (7328) instead of pan face.
The cabinet is 7" deep.
What is the minimum thickness of a cabinet that allows for use of flat sheeting? Thanks.



[Circleville Signs]

If the cabinet is made for a pan-face insert, then you should stick with that. There are times when you can get away without it, but at that size, I would DEFINITELY not use flat acrylic.



[J Hill Designs]

+1 minimum thickness iirc of d/f lit signs is 12 inches



[suwanneerivergraphic]

Thanks for the info guys.

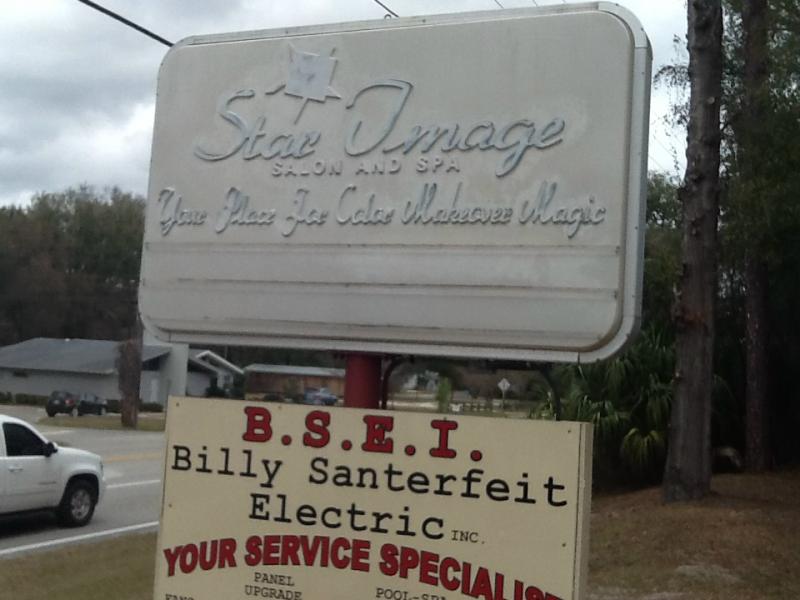

Here is a photo of the old sign. I haven't done one like this.... it's very old.
I'm thinking that only pan face will go back into it anyway.



[FS-Keith]

minimum of 4" from lamp to plastic



[BALLPARK]

I would stick with the Pan face with Rounded Corners for sure.



[FS-Keith]

looks like it was manufactured by Signtronix



[tsgstl]

If it's only 7" thick a flat face will show the lights.
A lot of municipalities won't approve those old cans if it has exposed wires inside FYI



[suwanneerivergraphic]

Thanks for all the info guys... much appreciated.



[Gino]

At 5' x 8' you need the strength of the pan face. Also, you need to keep your face more than 3-1/2" from a lamp source or you'll experience hot spots..... and the customer might be a little upset with that feature.
