VersaCAMM Bi vs Uni directional printing

[B Snyder]

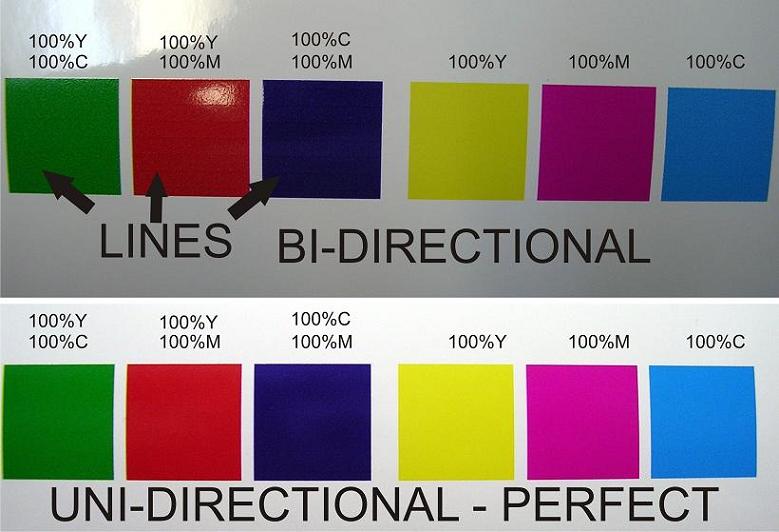

Please take a look at this pic.

VP-540
max inks
40/45 temps.
VersaWorks
Standard 720x720 (v) mode (8 pass)
+.05 feed calibration
head speed = 720mm/s
feed speed = 8mm/s
Uni-directional print is perfect.

I can't seem to get my settings dialed in for perfect bi-directional printing of SOLID colors. I've got my bi-directional calibrations (simple and detail) properly adjusted. Any suggestions? I hope this isn't something I'll need to live with. I'm picky and I've got a little case of OCD.



[ChiknNutz]

From my experience, that is about as good as it gets, unless I'm not seeing something that you are.



[B Snyder]

its easier to see in a larger image but we're limited to 800px here.
I'll email a larger version to the address on your website.
Thanks!



[high impact]

What RIP are you using?

Looks good to me as well.

Bidirectional is never as nice as uni.



[B Snyder]

Please take a look at this pic.

max inks
40/45 temps.
VersaWorks
Standard 720x720 (v) mode (8 pass)
+.05 feed calibration
head speed = 720mm/s
feed speed = 8mm/s
Uni-directional print is perfect.



[B Snyder]

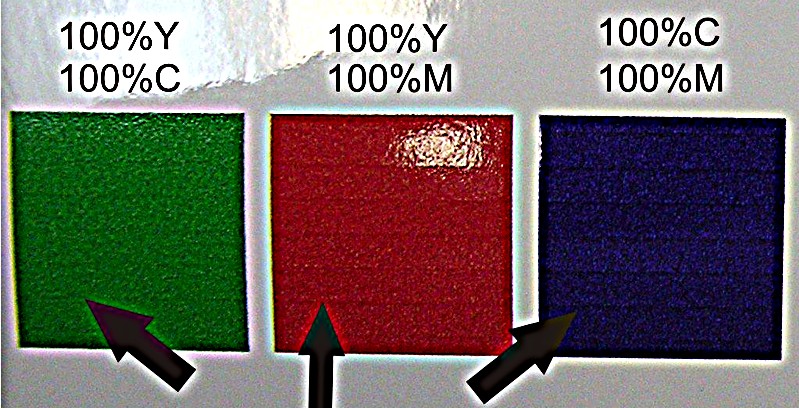

Here is a larger pic of just the bi-directional samples.



[high impact]

Sorry B, missed it somehow...over worked or age! lol

I'm running versaworks unidirectional on all my prints that are going to be viewed up close. But I will print bidirectional when the viewing distance warrants. My bidirectional has some banding through versaworks but not quite as badly as that last pic.

Wish I could help but I seem to have the same problem. I figured it was the nature of the beast.



[Graphics2u]

Isn't there a way to adjust the step adjustment on the printer through Versaworks? Maybe in bi-dir you need to bump it up a little.



[B Snyder]

Isn't there a way to adjust the step adjustment on the printer through Versaworks? Maybe in bi-dir you need to bump it up a little.

Yes, but there is only one "feed calibration" adjustment. There aren't separate adjustments for each printing direction.



[schurms]

When I get that................ more heat.



[B Snyder]

When is more heat needed? Before or after printing?
