CJV30-130 won't cut after print

[Mstar]

Our Mimaki CJV30-130 will not print & cut. We can print only just fine and we can cut only just fine however, if we do a cut after immediate print or print with reg marks and come back to cut it says "error" in Rasterlink Pro 5 SG. It does not give me a code it just says error in the status column within the software. I have no problem finding all the reg marks but it will not continue on to cut. This is the first time we've had this issue.


I have tried to clean the laser and tried to upgrade the firmware (I received an error message here also) but it has not helped. I found little information online and was hoping someone might be able to put me in the right direction.

Thanks so much!



[Mike Wall]

Our Mimaki CJV30-130 will not print & cut. We can print only just fine and we can cut only just fine however, if we do a cut after immediate print or print with reg marks and come back to cut it says "error" in Rasterlink Pro 5 SG. It does not give me a code it just says error in the status column within the software. I have no problem finding all the reg marks but it will not continue on to cut. This is the first time we've had this issue.


I have tried to clean the laser and tried to upgrade the firmware (I received an error message here also) but it has not helped. I found little information online and was hoping someone might be able to put me in the right direction.

Thanks so much!

Try this when sending to Rasterlink



[Printer Techie]

Also try reinstalling the finecut.May some default settings would have gone wrong.Check the sensor level also.Also check whether the register mark size you have give is same in both machine and software



[kevin6866]

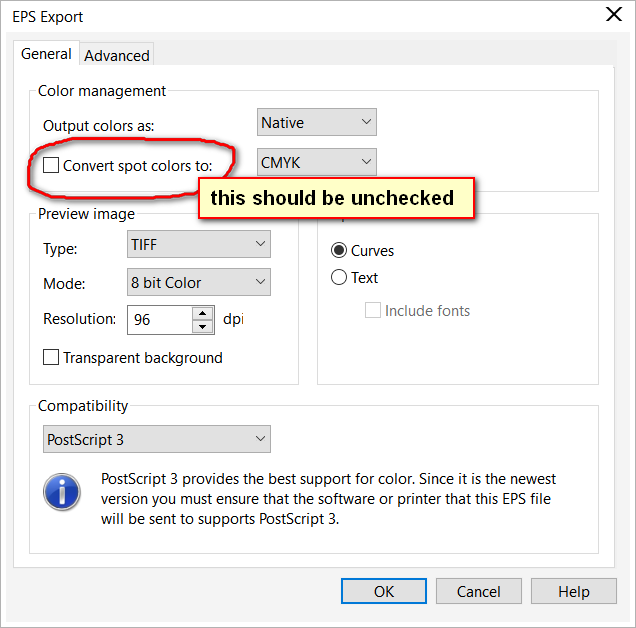

Try this when sending to Rasterlink

Thanks Mike. Unchecking the "Convert spot colors to:" works as RasterLink uses cut data as a spot color, rendering it as RGB or CMYK makes it meaningless to RasterLink.
