ERATIC BLADE HOLDER, BOUNCING GRAPHTEC FC8600-130

S

signdogwest

New Member
I'm having some cutter issues with an erratic mind of its own going on with the blade holder and solenoid.
Unit is a Graphtec FC 8600-130, about 3 ish years old.
Out of nowhere, I touched the blade holder to check the blade length while still on the machine, and it began bouncing up and down and now when it cuts, it's not cutting normal.
I checked the cables, nothing seems out of whack. I haven't been able to find any other info online and graphtec won't service this model.

I'm happy to buy a new part, but can't even find a link or resources for parts.

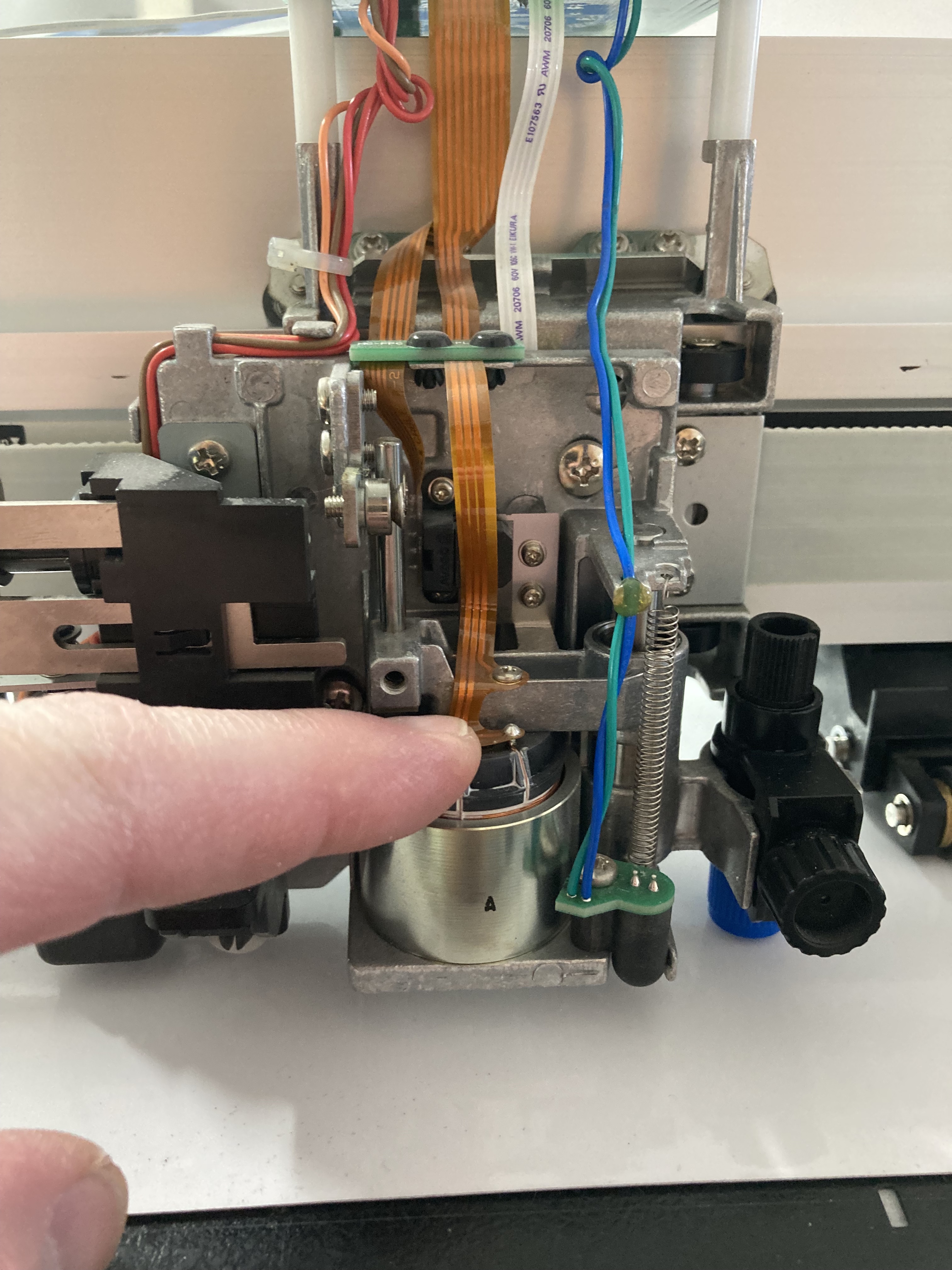

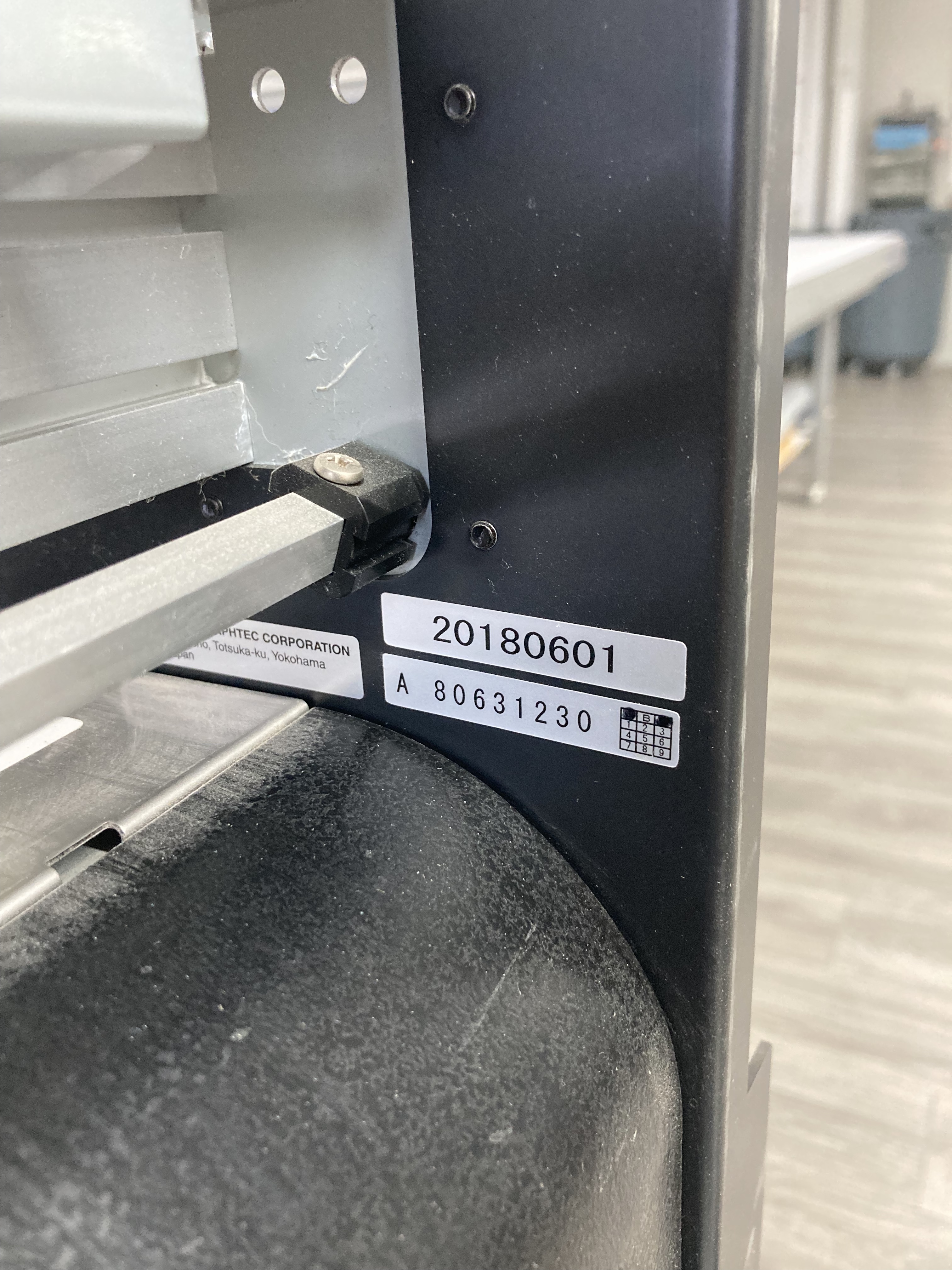

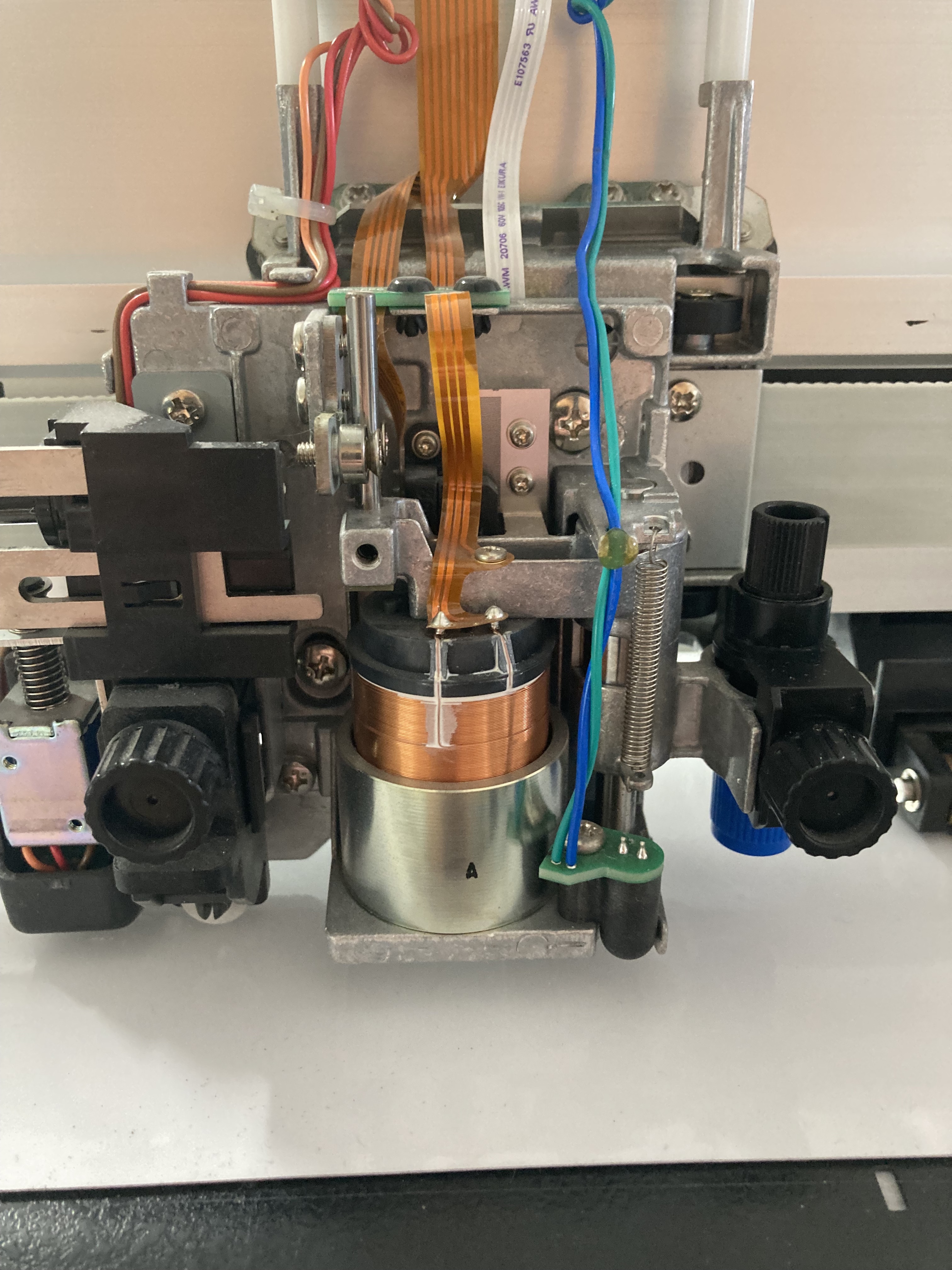

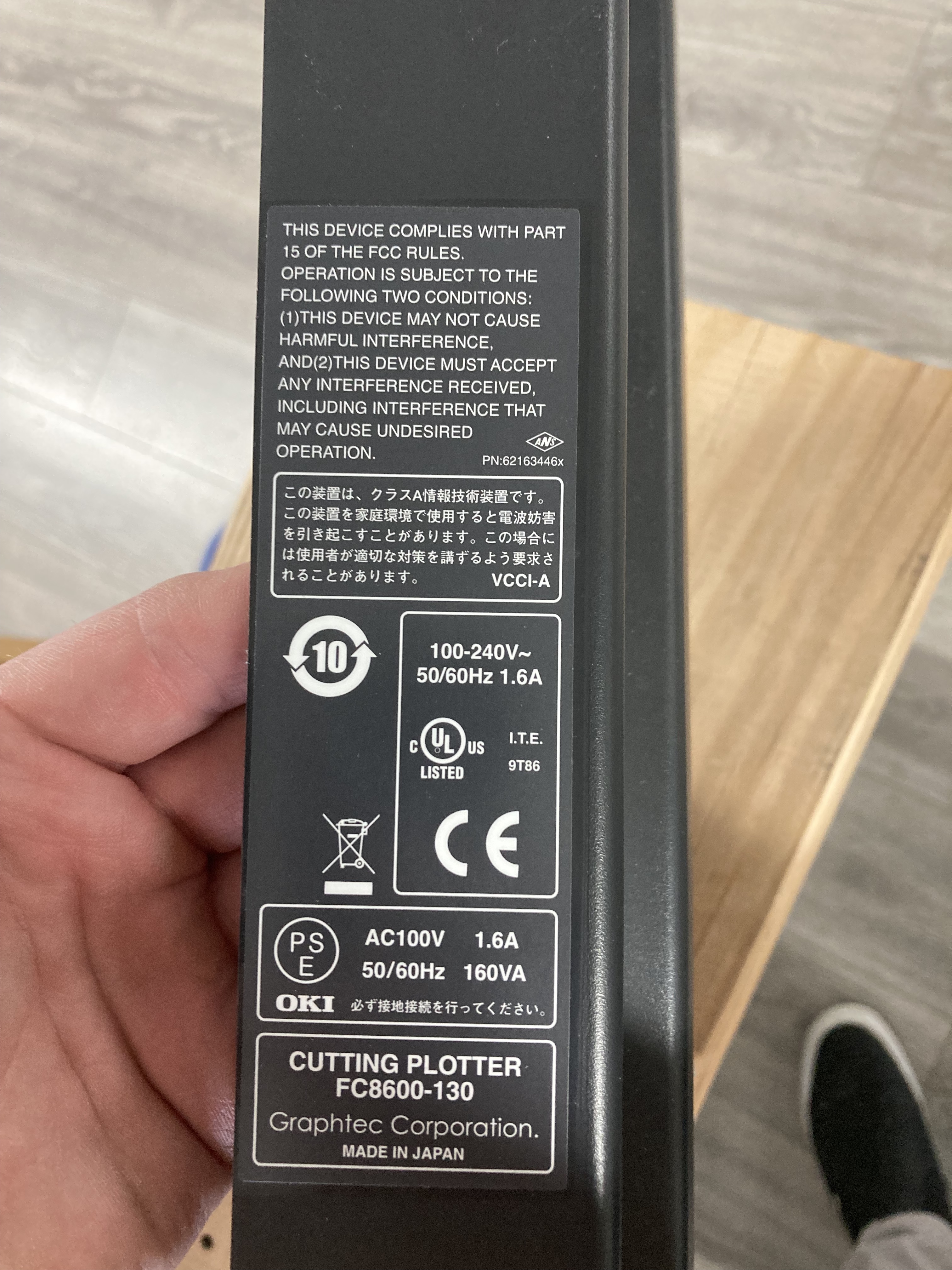

I've attached pics and here's a link to show how it's working



Attachments

  • IMG_5169 copy.jpg
    IMG_5169 copy.jpg
    3.3 MB · Views: 624
  • IMG_5168 copy.jpg
    IMG_5168 copy.jpg
    3.4 MB · Views: 156
  • IMG_5167 copy.jpg
    IMG_5167 copy.jpg
    2.9 MB · Views: 156
  • IMG_5166 copy.jpg
    IMG_5166 copy.jpg
    3.1 MB · Views: 180
A

adub

New Member
Did you try unplugging usb/ Ethernet then doing a factory reset? Turn on holding up button. Usually fixes our weird issues.

brdesign

brdesign

New Member
I know someone with a Graphtec that had the same issue a few months ago, I think they said it was the circuit board that controls the servo. It took them over a month to get a replacement board for it.

Solventinkjet

Solventinkjet

DIY Printer Fixing Guide
There is a part on the carriage that looks like a thin piece of metal with lines cut through it. It's an encoder for the actuator. If it has dust or something else on it that prevents the optical sensor from reading the lines properly, you can get erratic movement like this.

T

TBM

New Member
signdogwest said:
I'm having some cutter issues with an erratic mind of its own going on with the blade holder and solenoid.
Unit is a Graphtec FC 8600-130, about 3 ish years old.
Out of nowhere, I touched the blade holder to check the blade length while still on the machine, and it began bouncing up and down and now when it cuts, it's not cutting normal.
I checked the cables, nothing seems out of whack. I haven't been able to find any other info online and graphtec won't service this model.

I'm happy to buy a new part, but can't even find a link or resources for parts.

I've attached pics and here's a link to show how it's working

Click to expand...
Did you ever find a solution for this?
