Question Flexi 11 makes boxes around boxes -

Joanne

New Member
Flexi 11

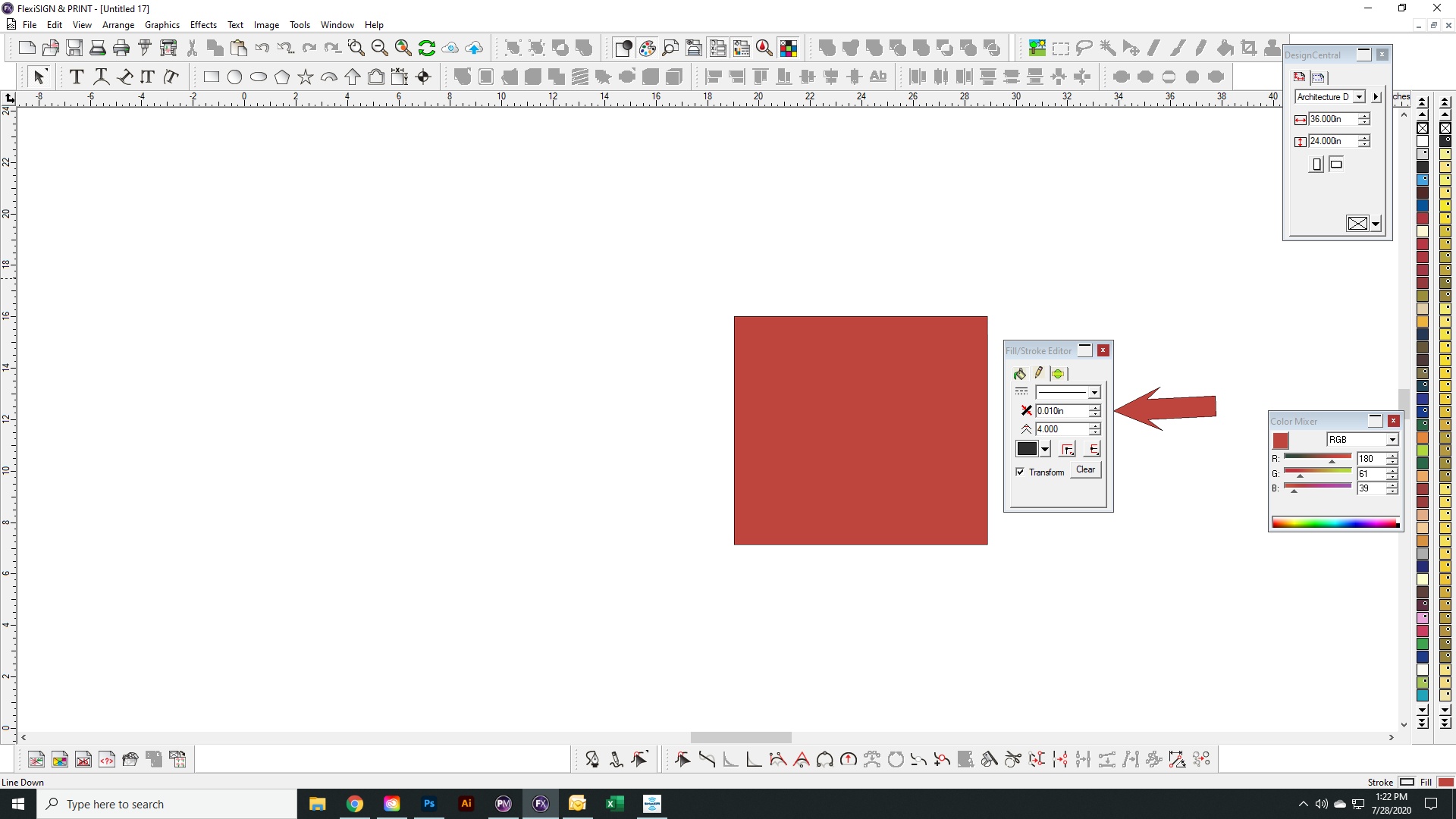

When I make a box, a big fat box appears around it.
How do I make the box go away, it's not part of inline.


eahicks

Magna Cum Laude - School of Hard Knocks
Your line thickness is set too high.


Attachments

  • screen.jpg
    278 KB · Views: 152

SignStudent

New Member
If eahicks is correct and it's because you have a stroke on the boxes you can select the box, hold down the control key, and left click on the transparent swatch (looks like an X) to remove the stroke.


karst41

New Member
The fat lines are called strokes and the thickness of that line is called the stroke weight. When working in any illustration program Adobe, Flexi, Corel, you will need to convert the stroke to outlines if you are going to perform and cut function.

This is also a rule when subbing out work to the big printing companies.
Fonts to outlines, Strokes to paths.

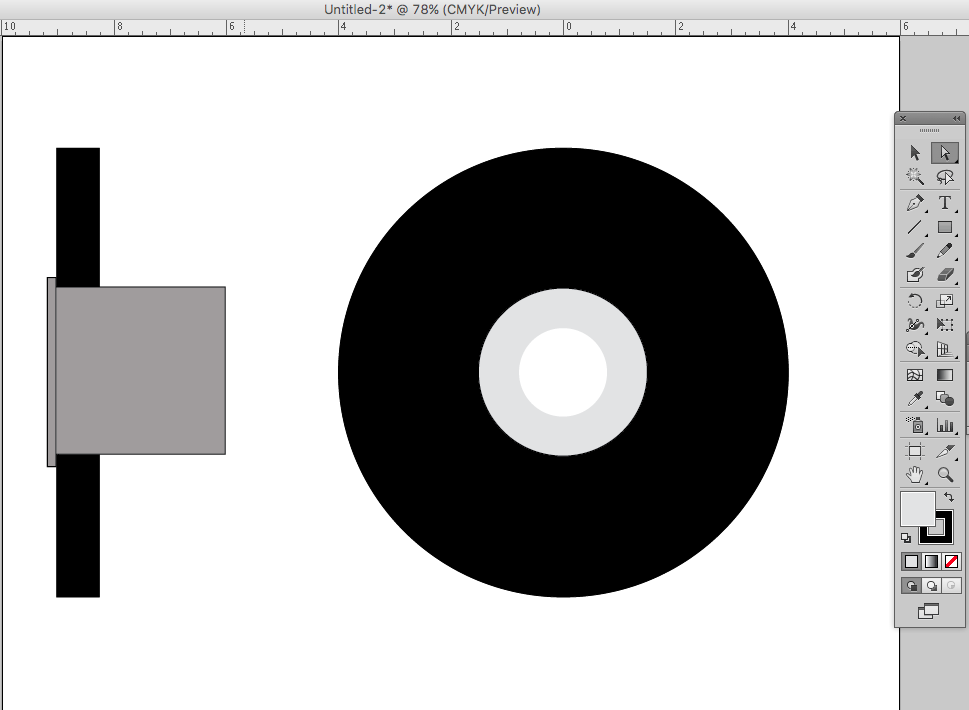

I am attaching a screen shot of a flange, and I have set a stroke weight of .01 on the grey for illustration purposes Only. The CNC file will not have any stroke weight.

Hope this helps.
Cheers


Attachments

  • Flange.png
    61 KB · Views: 153
