Graphtec FC2100 Warning Label

[joe endicott]

Hello all!

Hoping a Graphtec owner can help me out. The first shop I worked in had a Graphtec FC2100. On the top of the cutter is a big info label that included a nice little square warning graphic telling you to keep your fingers out of the pinch rollers. I have found several versions of similar symbols online, but none are quite the same. I've called Graphtec, but they don't have any around anymore.

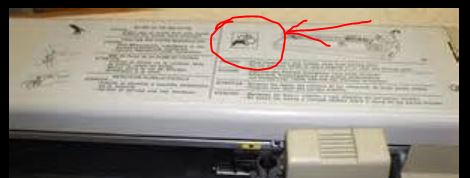

I'm hoping somebody might be willing to take a nice clean close-up of the symbol for me. I found the attached blurry image in a Google Search...

Joe Endicott
Virginia Beach, VA



[pjfmeister]

is this what your after? i found this vector in the manual for a 4100



[J Hill Designs]

just make a basic one



[joe endicott]

Thanks for the quick replies!

pjfmeister: Unfortunately, that's not the one. Thanks, though!

J Hill: Thanks...That looks pretty darn close, and I could make a basic version, but I am being specific for a reason. I'd really like to match the one on the FC2100.

Thanks,
Joe



[joe endicott]

....and just to be clear, I'm not trying to get out of work(I know how it might look,1st time post and asking for favors)...I've already built one from what I believe to be the closest version (see attached). I just want to verify that it matches the one on the FC2100



[fredges]



[joe endicott]

THANKS!! That's exactly what I needed, sir!



[fredges]

You're very welcome! I needed some karma anyway! My old FC2100 is over 20 years old, and it still works great! I'm cutting out of Adobe Illustrator CS6, using Graphtec's "Cutting Master" software. The old iMac I plug it into is running El Capitan. I'm amazed this plotter, this machine, this entire set-up is still working....

*Edit: That would make one BADASS tattoo, BTW!!
