Head Missfire, One Pass, Lines, Roland Versacamm SP540i

[benh]

I'm hoping someone here can help me...

My printer is having issues with cyan lines appearing in my print. They always appear in the same place (below the roller entry slot).

It's not the encoder strip, this has been cleaned and flipped 180. (the lines should now be on the left hand side of the printer, however they stay the same)

Doesn't seem to make any difference what I print, the profile, heaters, quality etc.

Tried from two separate installs of versaworks, this doesn’t make any difference. The lines are still present.

The lines are put down in one pass.

Exactly the same problem as...
http://www.signs101.com/forums/showthread.php?t=82292

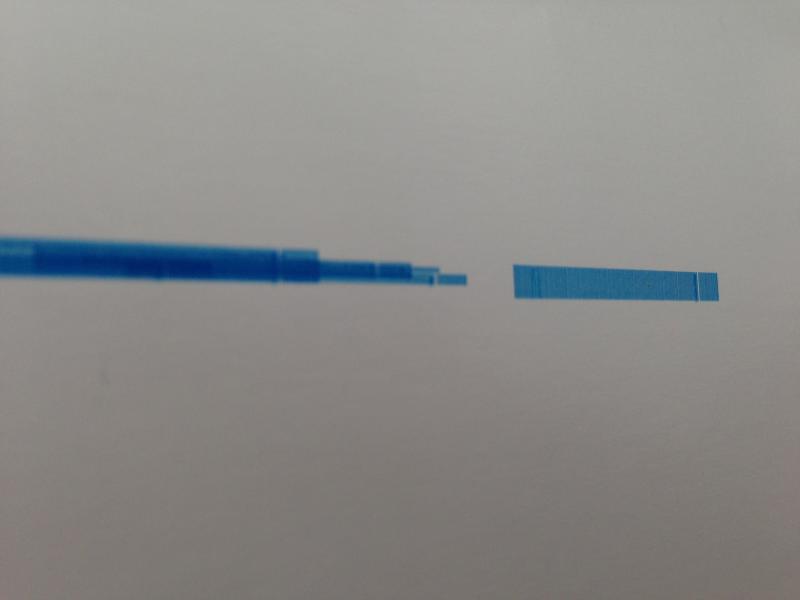

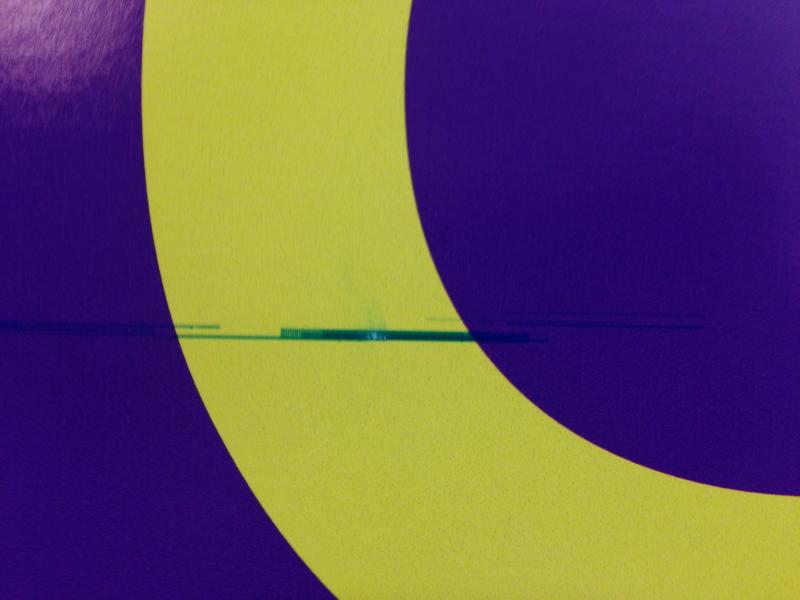

Please see attached photos any tips would be much appreciated!



[Papajo]

Wow this one is a bit tricky. I'm not sure it's the same problem as in the link. In the link the whole head width is printed which means there may be a shortcut on the junction from the main board to the heads. In your case the traces doesn't seem to match the head width, does it ? I've never seen anything like it...
