HP R-1000 dimension question.

[Charles@TheSignDude]

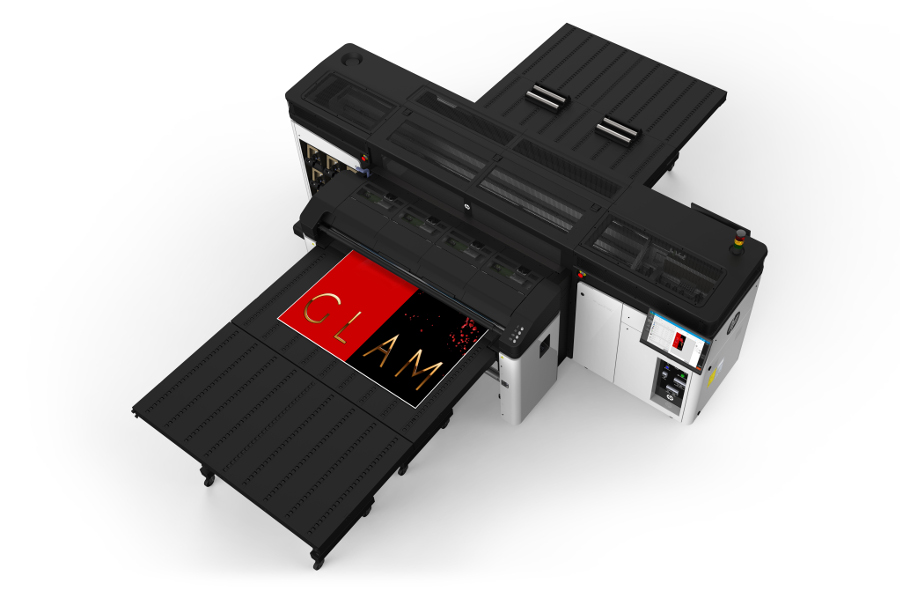

Hello, I been looking on line and cant seem to get a measurement for the HP R-1000 (64") . The measurement I need is the total length if it has 2 extension tables on each side. see attached photo. If someone out there that has this setup could send me the measurement that would be great. Trying to figure out if it will fit in our space available.



[P Wagner]

That dimension is 207 inches with the four extension tables attached - 17 feet 3 inches.



[balstestrat]

You should be able to find all the measurements in this doc on page 16.

http://h10032.www1.hp.com/ctg/Manual/c06040819

That dimension is 207 inches with the four extension tables attached - 17 feet 3 inches.

It's actually 5,5m or 216,9 inches. Only one of the tables is a short one, rest are longer.



[MelloImagingTechnologies]

You need at least 10' in front and behind since it's a hybrid and not a flatbed and must move the board through.
You're ok with printing 4-5 boards per hour?



[balstestrat]

You need at least 10' in front and behind since it's a hybrid and not a flatbed and must move the board through.
You're ok with printing 4-5 boards per hour?

You can do 7-15 boards/h with R1000 and not everyone needs crazy speeds.
If you can't utilize the speed it's useless.



[Charles@TheSignDude]

You should be able to find all the measurements in this doc on page 16.

http://h10032.www1.hp.com/ctg/Manual/c06040819


It's actually 5,5m or 216,9 inches. Only one of the tables is a short one, rest are longer.

You should be able to find all the measurements in this doc on page 16.

http://h10032.www1.hp.com/ctg/Manual/c06040819


It's actually 5,5m or 216,9 inches. Only one of the tables is a short one, rest are longer.

balstestrat,
do you have one to confirm this measurement or just going off that manual. I have read the manual as well and it would make sense if the extra extensions are 3' each and the ones in the manual show 2'1" and 3'1". If it really is 216.9" (18') then we would JUST fit it in our space but would for SURE need to confirm this somewhere.
Thanks for the help



[balstestrat]

balstestrat,
do you have one to confirm this measurement or just going off that manual. I have read the manual as well and it would make sense if the extra extensions are 3' each and the ones in the manual show 2'1" and 3'1". If it really is 216.9" (18') then we would JUST fit it in our space but would for SURE need to confirm this somewhere.
Thanks for the help

Yes it's approx what I said, definitely not more than that.
I think when you attach the tables together you may even lose an inch or two.

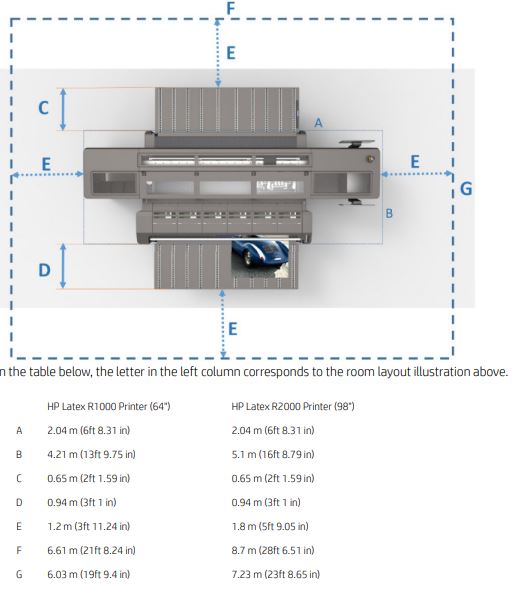

In the picture it's A+C+D+D+D = 216.9"

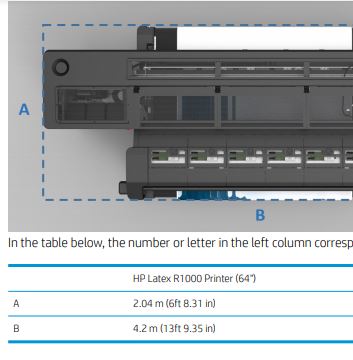

I have measured the A and it's exactly 2.04m.

I keep changing my mind how to word this so I've edited if few times...
