Installing DualView vinyl

[Jean Shimp]

I have been asked to quote on installing printed vinyl on the back side of clear glass for a café in a high class office building. One wall above a counter is 19 feet long and 6 feet high. There will be 14 glass panels. We will apply he vinyl ad then the contractor will install the panels against wall.I have installed a lot of vinyl but have not done this type before. Would like some tips or comments from others who have worked on similar projects. Thanks.



[401Graphics]

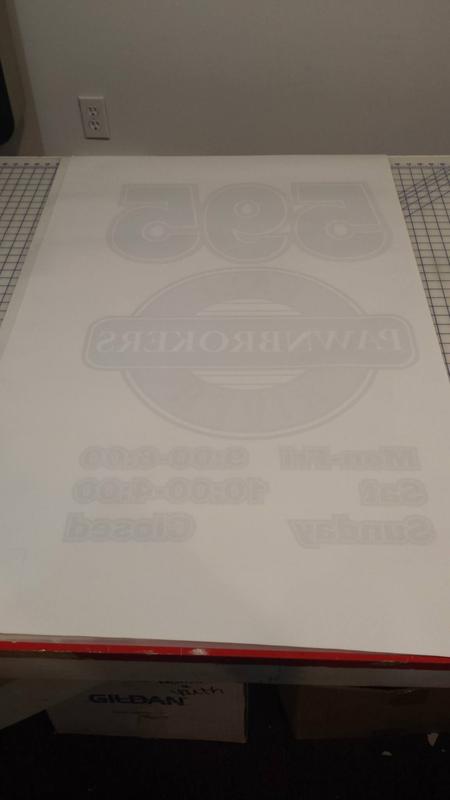

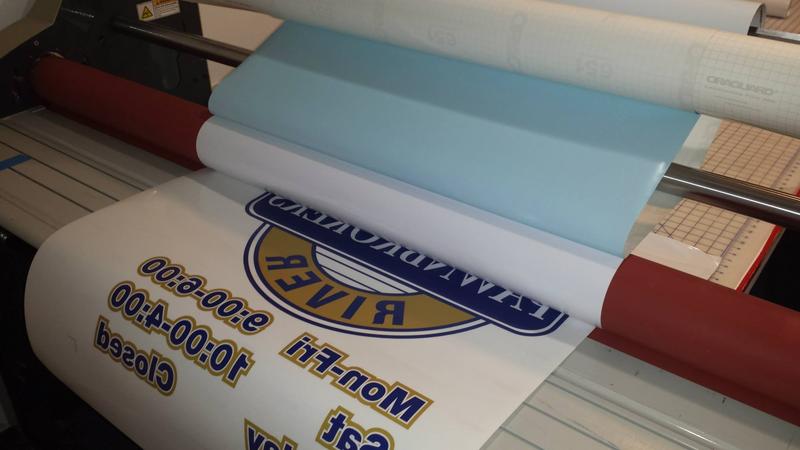

Print in reverse on clear vinyl. Laminate the print with white vinyl. Apply vinyl. Done.



[Jean Shimp]

Thanks for your reply. However I will be using Signs365 to make the prints as I do not have a printer. Also, since these pieces will be large I was thinking of using a more user friendly product that can be lifted up or repositioned.



[bigben]

Print in reverse on clear vinyl. Laminate the print with white vinyl. Apply vinyl. Done.

How do you manage/clear your registration points for contour cutting after laminate the clear vinyl with white?



[401Graphics]

How do you manage/clear your registration points for contour cutting after laminate the clear vinyl with white?

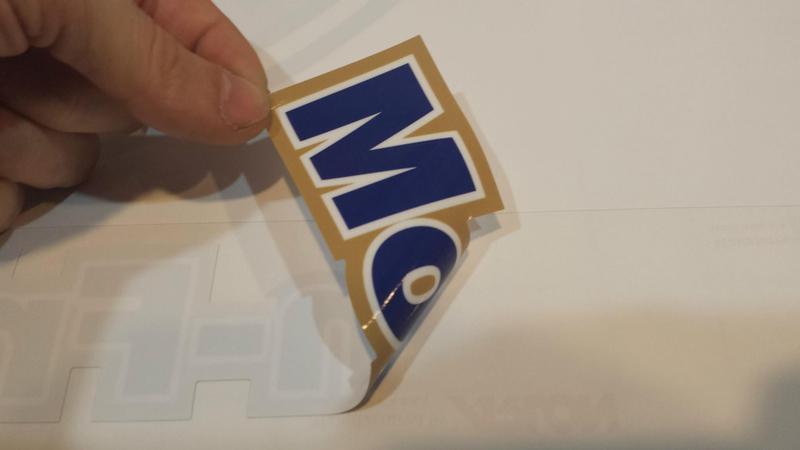

I put masking tape over the registration marks before laminating with white. Then cut around the masking tape through the white vinyl only and expose the registration marks.



[Christian @ 2CT Media]

try signobi.com. They can print clear with a white over coat for you.

You can also contact signs365 custom department and they can probably get it set up for you also.
