JFX200 Squaring / Distance Calibration

[John Torv]

Hi,

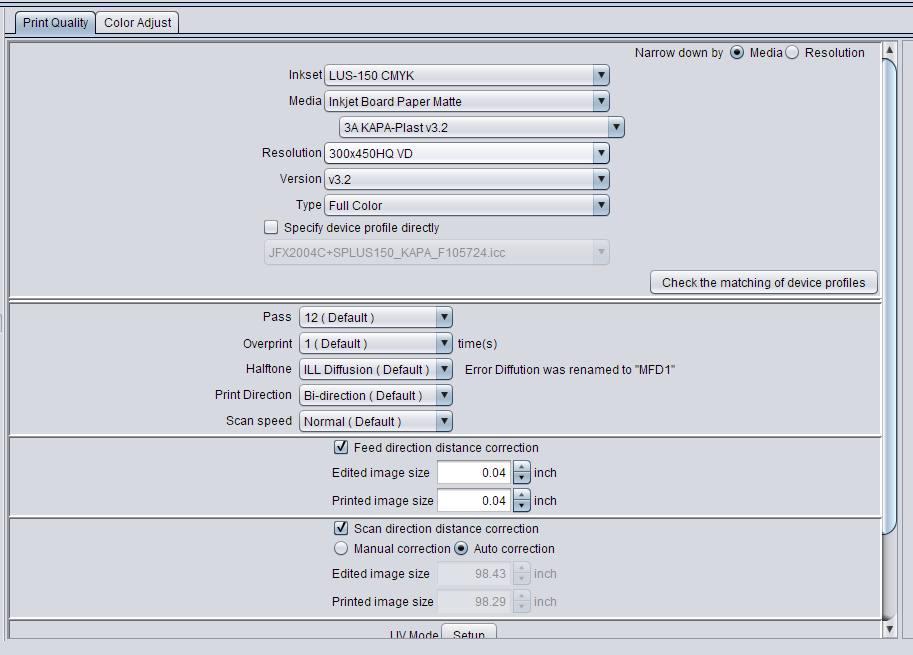

We've got a JFX200-2513 and were wondering how to calibrate the scan / feed direction control settings. We'll routinely print onto various materials with calibration marks that are used when cutting out shapes on a CNC router. We know the router is calibrated, based on their squaring procedure (30"x60" square in the center of something and measure corner-to-corner, within 1/16"-1/32"). Our print marks, at about 96", will routinely be off on the X (scan) about 0.5"-1" over that 96". The "feed" or "Y" is almost always on or off by ten-thou or so. I know there is a setting in RasterLink for "scan" but didn't know what procedure to perform to figure out what to input or how to go about squaring it.

Thanks



[Pauly]

Are you saying the flatbed isn't printing the size it's suppose to print?

I've never heard of a flatbed printing "not square" that would skew the images & probably see weird banding.

Have you tested it by printing a ruler and using a measuring tape or a 1m ruler and seeing if it lines up?



[Adam Vreeke]

I would try the ruler thing. I attached 2 files that I print on my printer.
