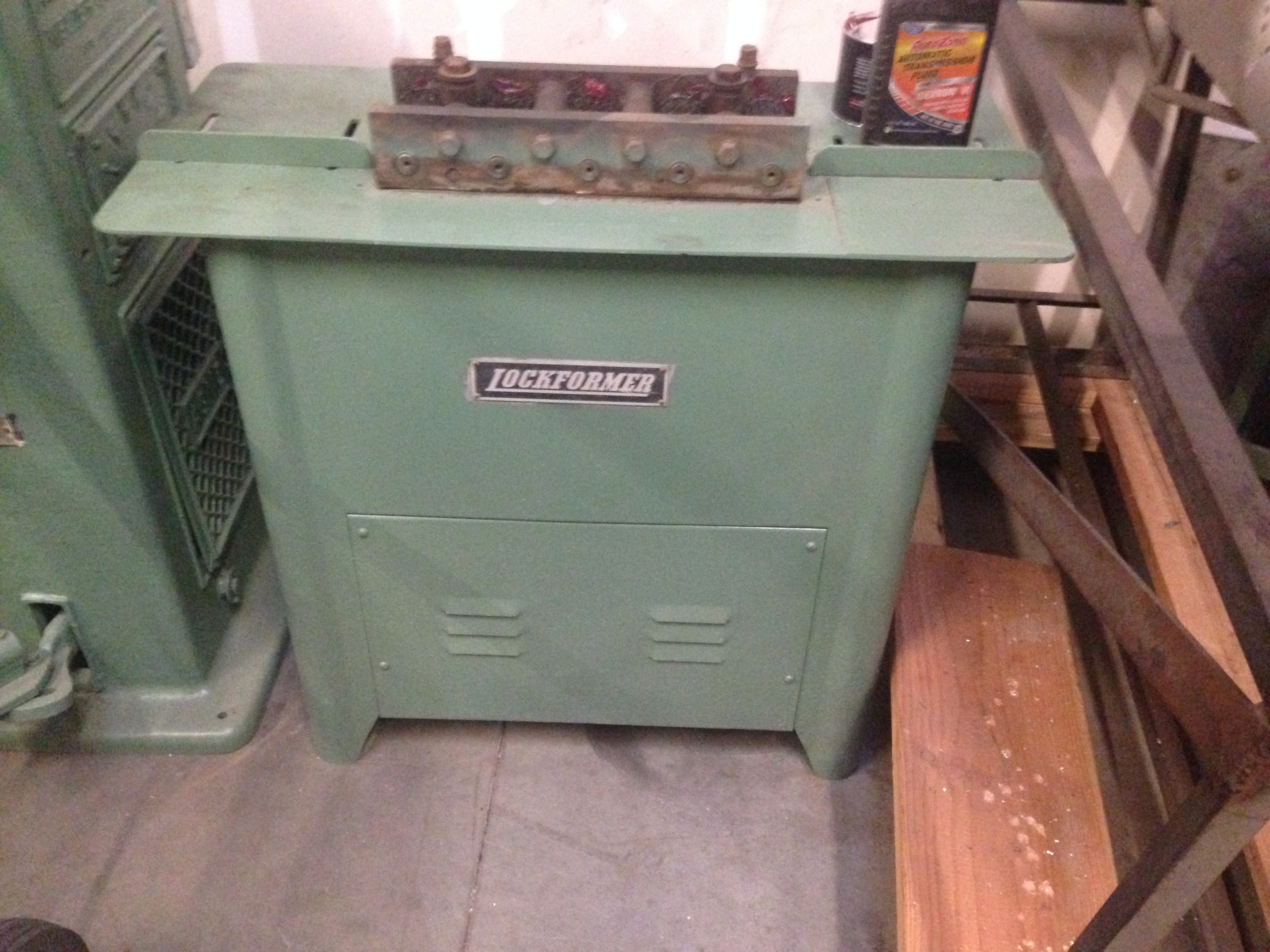

LOCKFORMER 20 GA PITTSBURGH LOCK MACHINE
Rollformers, Sheetmetal & Plate Equipment
This machine bends a nice “S” into sheets that gives a way to join 2 panels with a strong and leak free “join”. Used in sheet metal operations such as AC/Heater ducts, Signs, sheet metal cabinet manufacturing, and other places where sheet tin or Aluminum is used.
LOCKFORMER 20 GA PITTSBURGH LOCK MACHINE
MODEL: 20
CAPACITY: 20 - 26 GAUGE
DEPTH OF POCKET: 5/16"
HAMMER OVER-EDGE ADJUSTABILITY: 3/8"
FORMING SPEED: 25 FPM
DRIVE: V-BELT
MOTOR: 3/4 HP 1800 RPM
VOLTAGE: 115V/230V
AMPS: 10/5
SINGLE PHASE
DIMENSIONS: 36"L 16.5"W X 41"H
WEIGHT: 450 LBS.
New Replacement Cost: $8,140.00, this one is $3500. It is old, dusty, but not worn, kept inside and runs well, It is greased and ready to use.
$3500 760-840-1350 frank, frank@s4sd.com
