Mimaki CJV150 Relocation

[CB283]

Hi guys!

Obviously a bit new around here but I've had a Mimaki printing motocross graphics for the past 18 months

I've just rented out a new space in a unit upstairs from where I currently am so need to relocate the CJV150-107 I've got

I know I need to cap and lock the print head as I've spoken to a couple others in the trade, I've got the yellow shipping brackets & screws that came with the printer however I've got zero idea where these need to go as I did not do the install

Any advice / diagrams / videos etc. would be massively appreciated

Thanks,
Chris



[Solventinkjet]

The head lock screws into the Y rail just to the left of the head. You'll see two holes for the screws. It's the same as the cutter side. I'll post some pics.

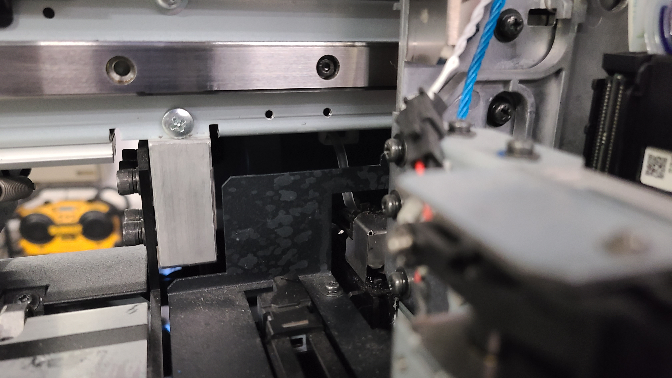

Cutter Side

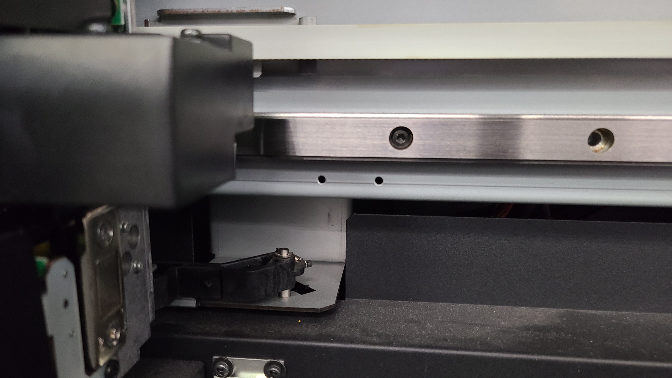

Print Head Side



[CB283]

Perfect! Thank you very much for that. Do I need to remove the print head cover or is it just a case of moving the head over to access?



[Solventinkjet]

Perfect! Thank you very much for that. Do I need to remove the print head cover or is it just a case of moving the head over to access?

The head just needs to be docked but the index head (the part that grabs the head or cutter when needed) should be on the cutter side.
