We upgraded to a new Canon and this poor guy is sitting in the corner and not being used much. This is a CMYK + White machine. It sat a while without being used and the white heads dried out. Tech says they aren't recoverable, but the CMYK heads work. Other than that, this was a solid machine and a real workhorse for about 4 years.
The machine uses the LUS-200 ink set
These units sold originally for about $74,000. Willing to take a bit of a financial hit since it needs work. Make an offer.

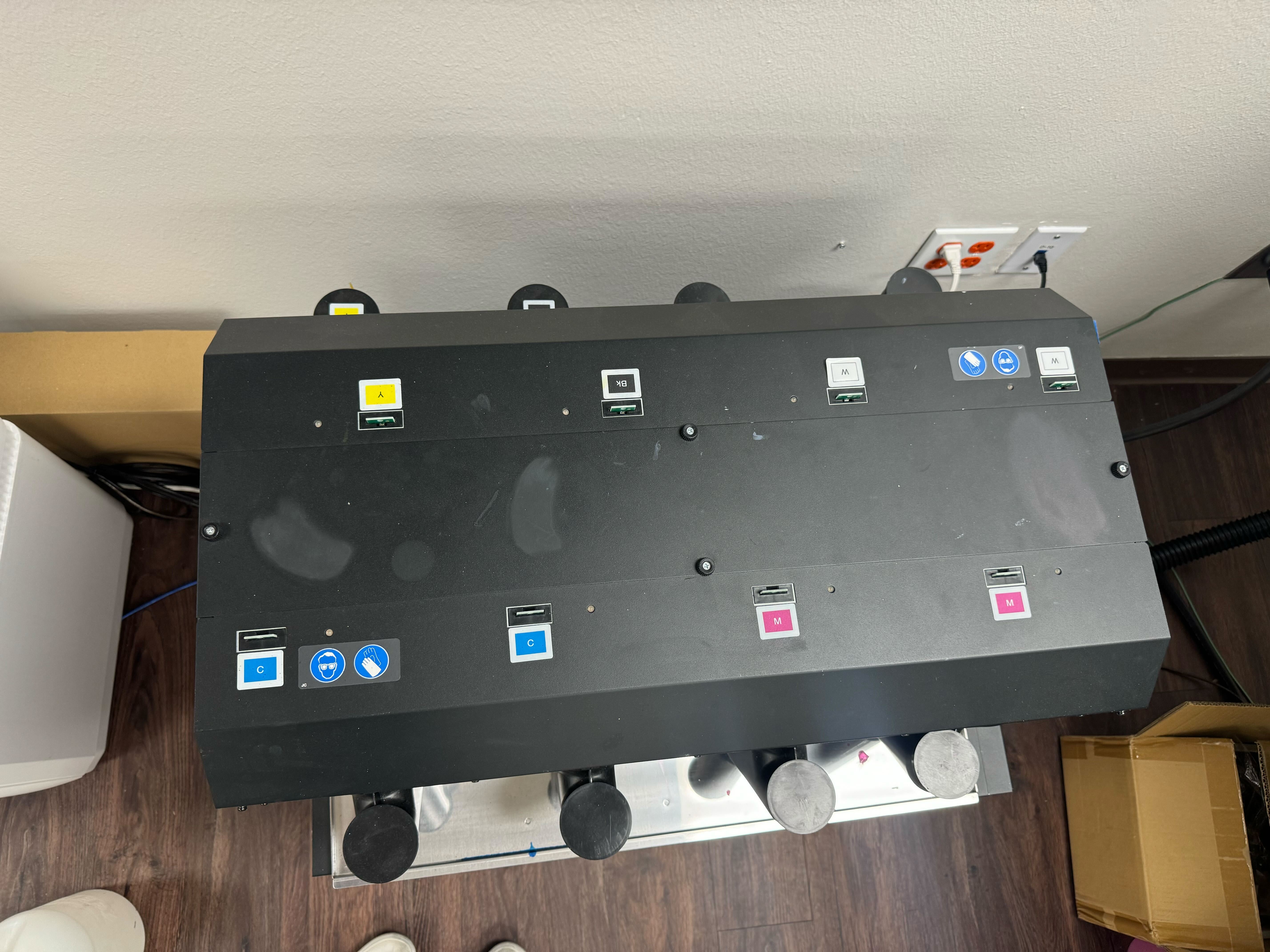

The machine, ink reservoir, Rasterlink RIP software, and any other equipment and parts we have for it are included. We'll give you the software key.

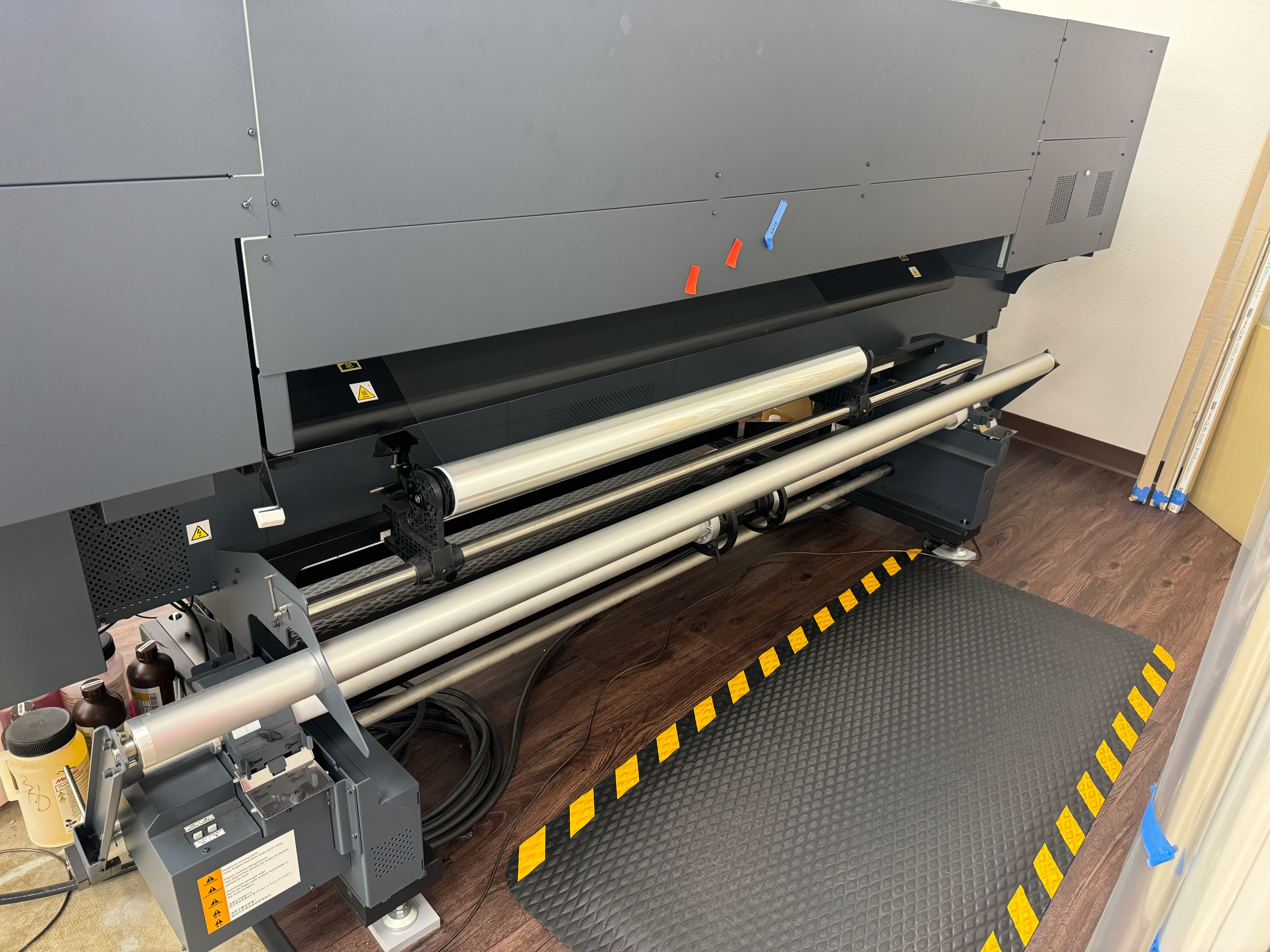

There is also an add-on attachment for the takeup reel that will allow for heavy rolls and banner material.
The machine runs on 220V, so it may need a dedicated circuit.
You would be responsible for all transportation arrangements. The warehouse is easily accessible through a large roll-up door. No loading dock.

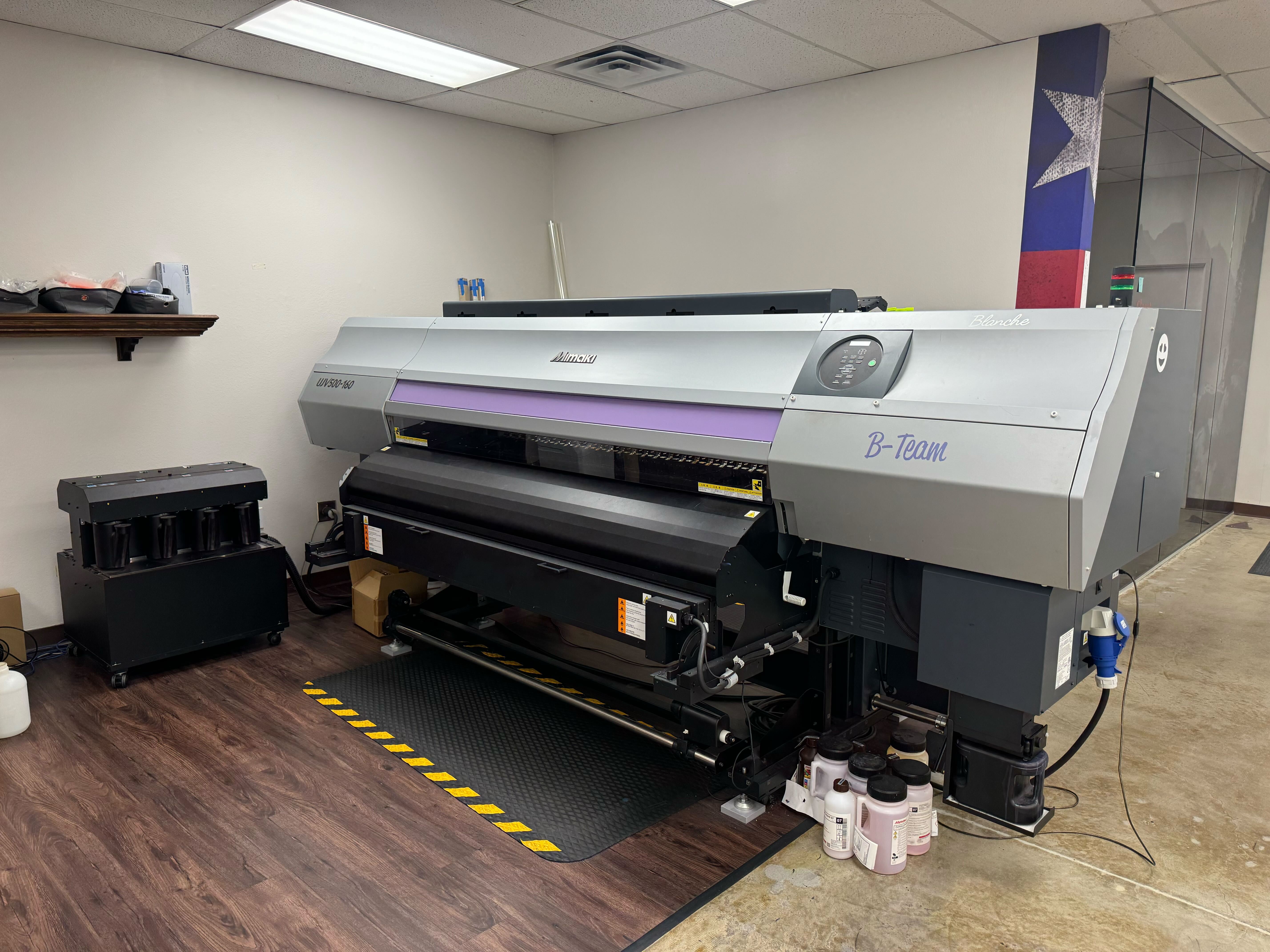

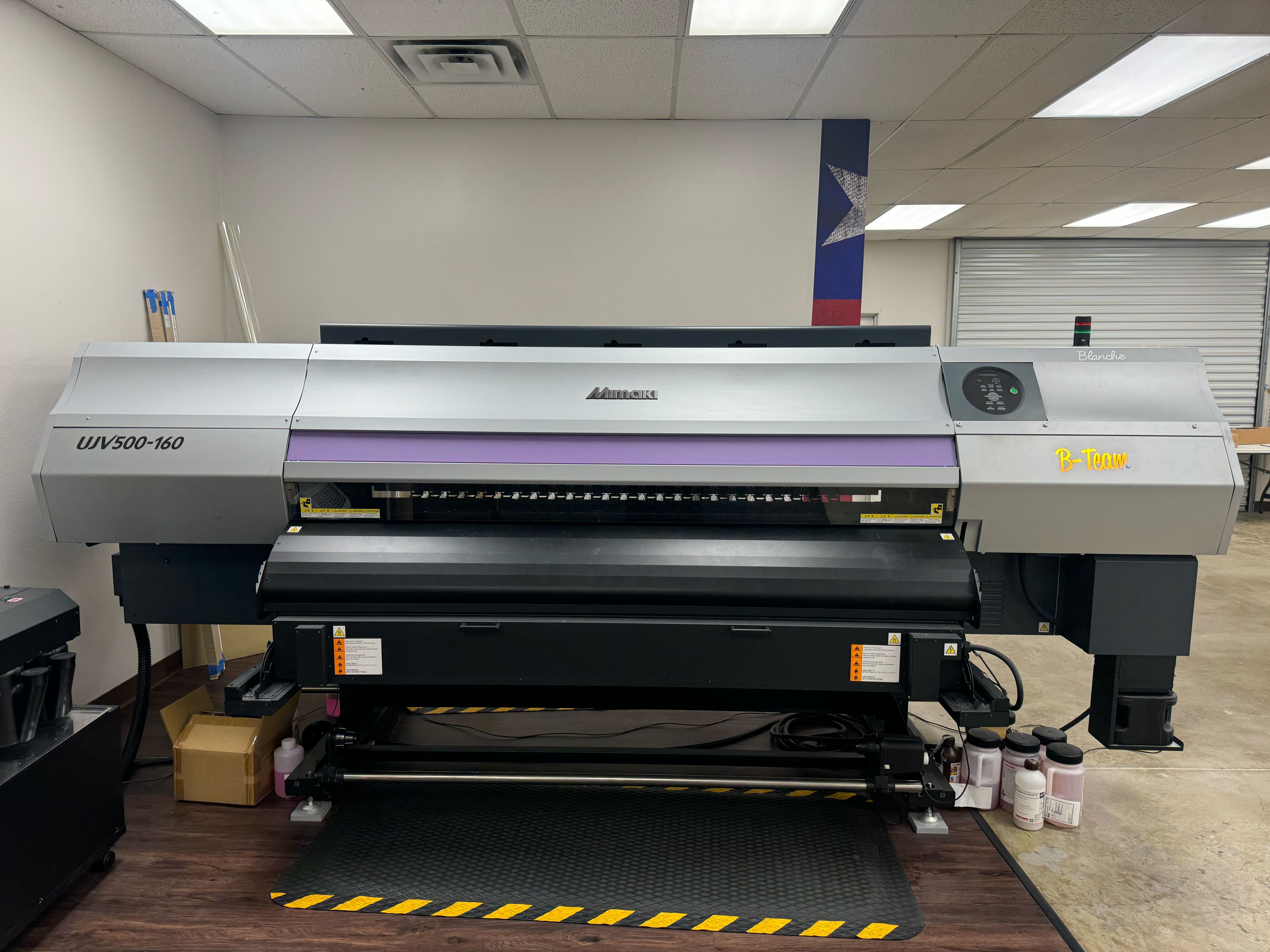

View attachment IMG_9453.jpg View attachment IMG_9452.jpg View attachment IMG_9451.jpg

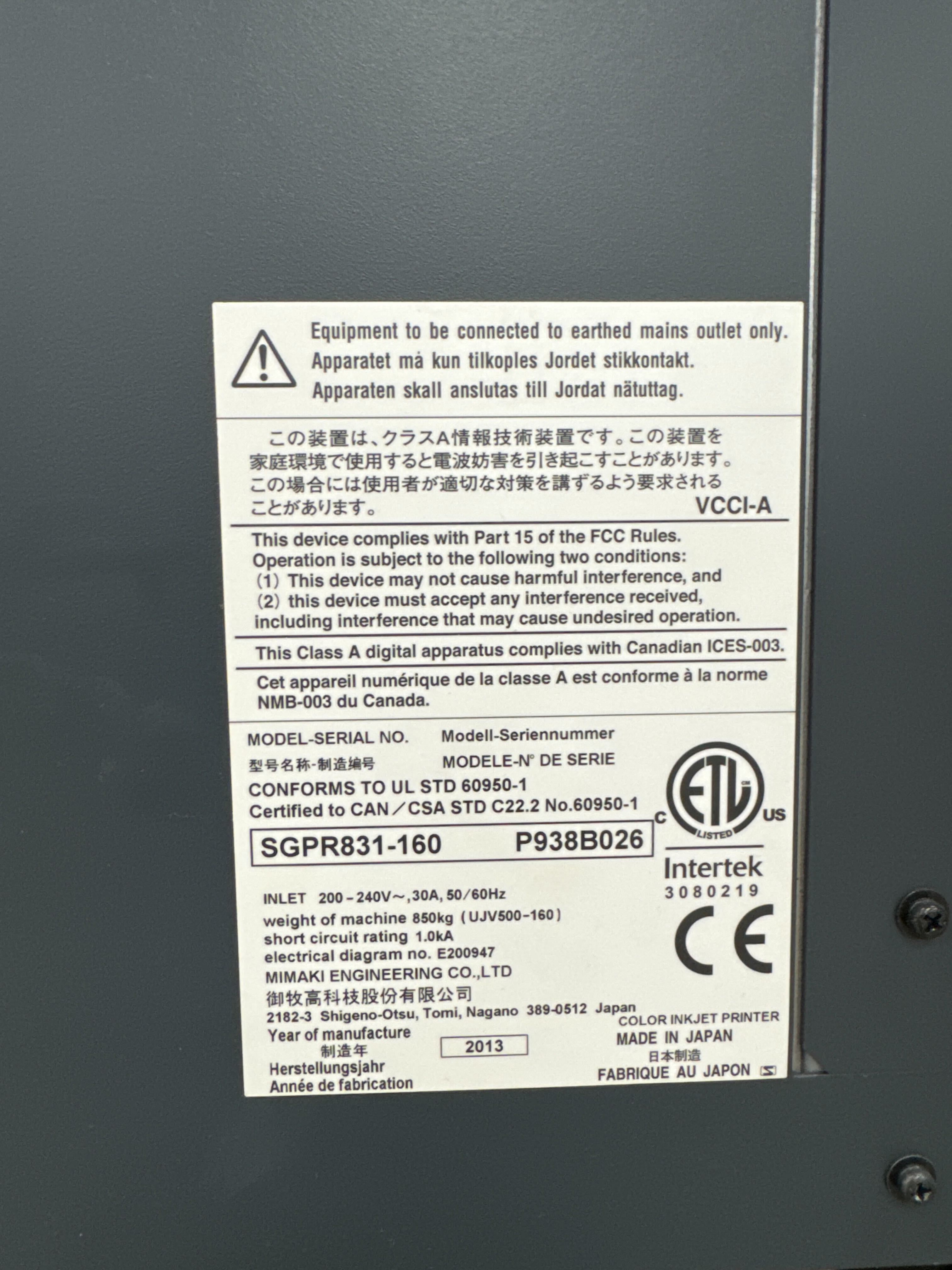

View attachment IMG_9450.jpg
The machine uses the LUS-200 ink set
These units sold originally for about $74,000. Willing to take a bit of a financial hit since it needs work. Make an offer.
The machine, ink reservoir, Rasterlink RIP software, and any other equipment and parts we have for it are included. We'll give you the software key.
There is also an add-on attachment for the takeup reel that will allow for heavy rolls and banner material.
The machine runs on 220V, so it may need a dedicated circuit.
You would be responsible for all transportation arrangements. The warehouse is easily accessible through a large roll-up door. No loading dock.
View attachment IMG_9453.jpg View attachment IMG_9452.jpg View attachment IMG_9451.jpg
Technical overview of the Mimaki UJV500-160 Printer
| Print system | On-demand piezo, six 2-inch print heads in a staggered array |
| Max print width | 63.3 inches (1610 mm) |
| Print resolutions | 300, 600, 900, 1200 dpi |
| Max print speed | 646 SqFt/Hr (60 SqM/Hr) |
| Ink type | Mimaki LUS-150 UV ink: C, M, Y, K, W Mimaki LUS-200 ink: C, M, Y, Y* *3M MCS Warranty available only with Mimaki LUS-200 ink |
| Ink capacity | 1 liter bottle |
| Maximum media width | 63.7 inches (1620 mm) |
| Max roll weight | 132 lbs. (60 kg) |
| Operational environment | Temp: 59? ? 86? F (15? ? 30? C) 35-65% RH (non-condensing) |
| Connectivity | USB 2.0 |
| Power supply | Single-phase AC 100-120V (AC 220-240V) |
| Dimensions (W x D x H) | 152 x 78 x 66 inches (385 x 298 x 169 cm)** **printer only (not including Ink Station) |
| Weight | 1764 lbs. (800 kg) |
