Monument Sign/ Cabinet Sign Engineer drawing

[alienwraps]

I am working on a monument sign with a multi-tennant sign cabinet in and I am trying to get the drawing together to send to an engineer. Does anyone have a pdf with piers and how I should lay this out.

This will be my 3 monument sign I am doing the others did not require these items.



[Rick]

Depends on the complexity of the job.

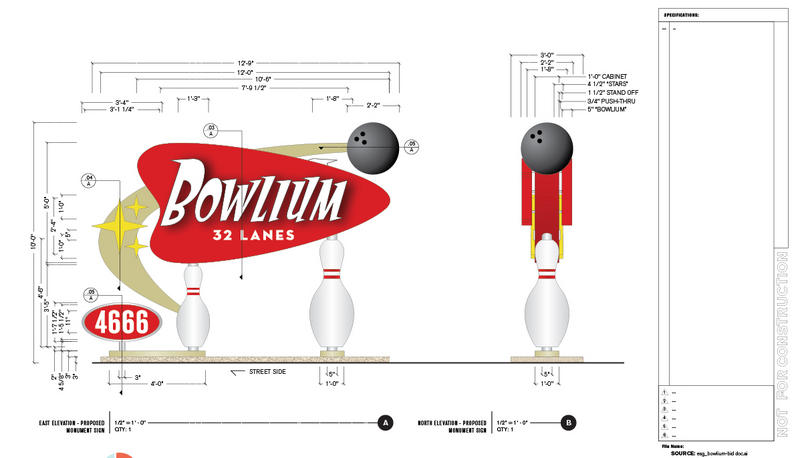

Generally they get a drawing with measurements and callouts.

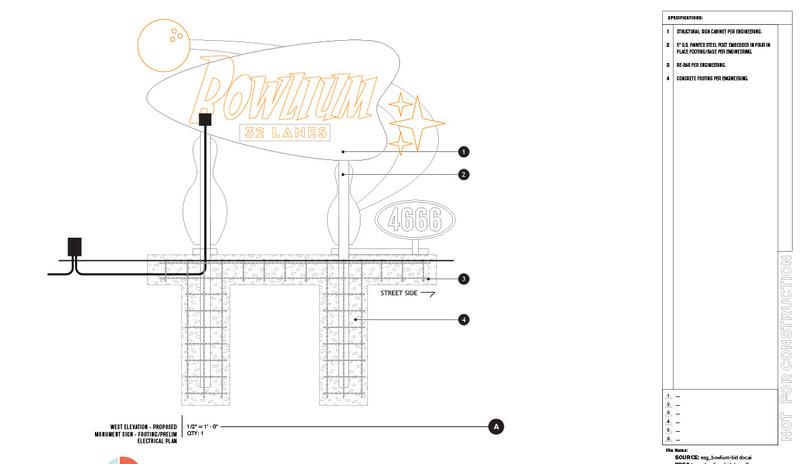

Then they gat a drawing on how I would like the monument to be
installed.

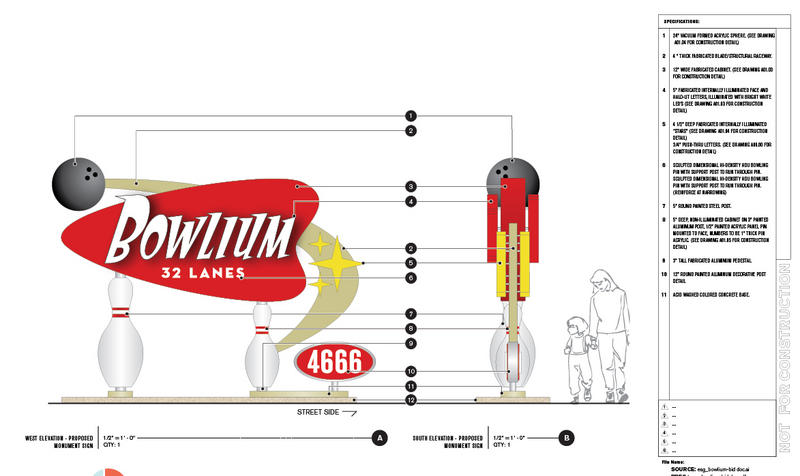

This sign had a lot going on so I split up the measurements and the

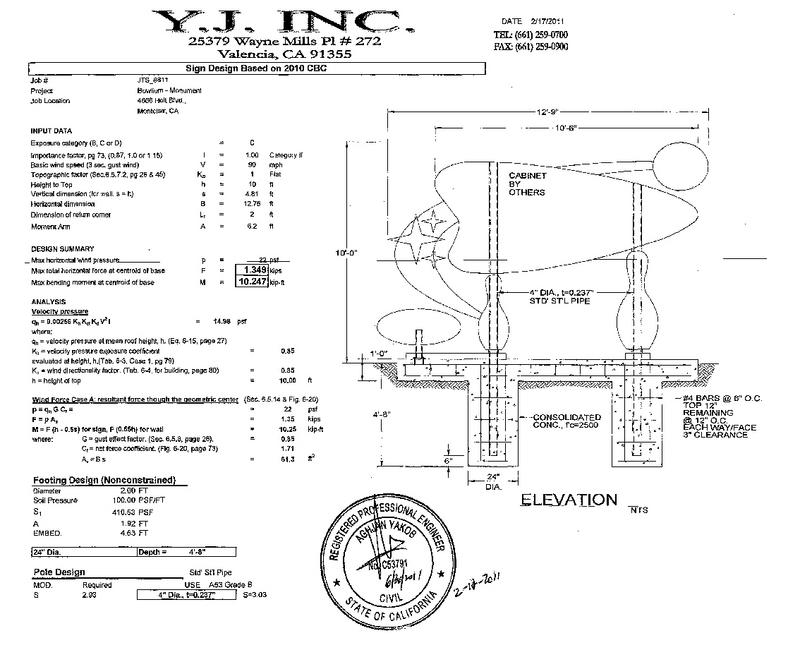

specifications. From the 3 drawings, I got my engineering with no hassles.

If you don't have the experience you can get any number of designers
to help you, or they may have a stock solution. But generally, an engineer
only needs to know how tall, how wide, how deep, how it's installed,
what it's made of and what is it being mounted to.

I do my own drawings but you might try: http://signmanmatt.com
