!! MOVING SALE !! - 65 inch CMYK + 2 White Ink Channel EFI H1625 LED UV Hybrid
Original Price Paid = $120,000
Currently Selling for = $55,000*
*2-year old machine for sale in perfect working order. Machine has been well maintained and has no issues. Machine is clean showing normal use and is ready to be put to work. We are moving locations and our business model is changing - this machine needs a new home.
Pickup preferred - machine is in Dallas/Fort Worth - Freight Service available for an additional fee
For More Information, please mail: dave@sigmahv.com or call 972.317.4467

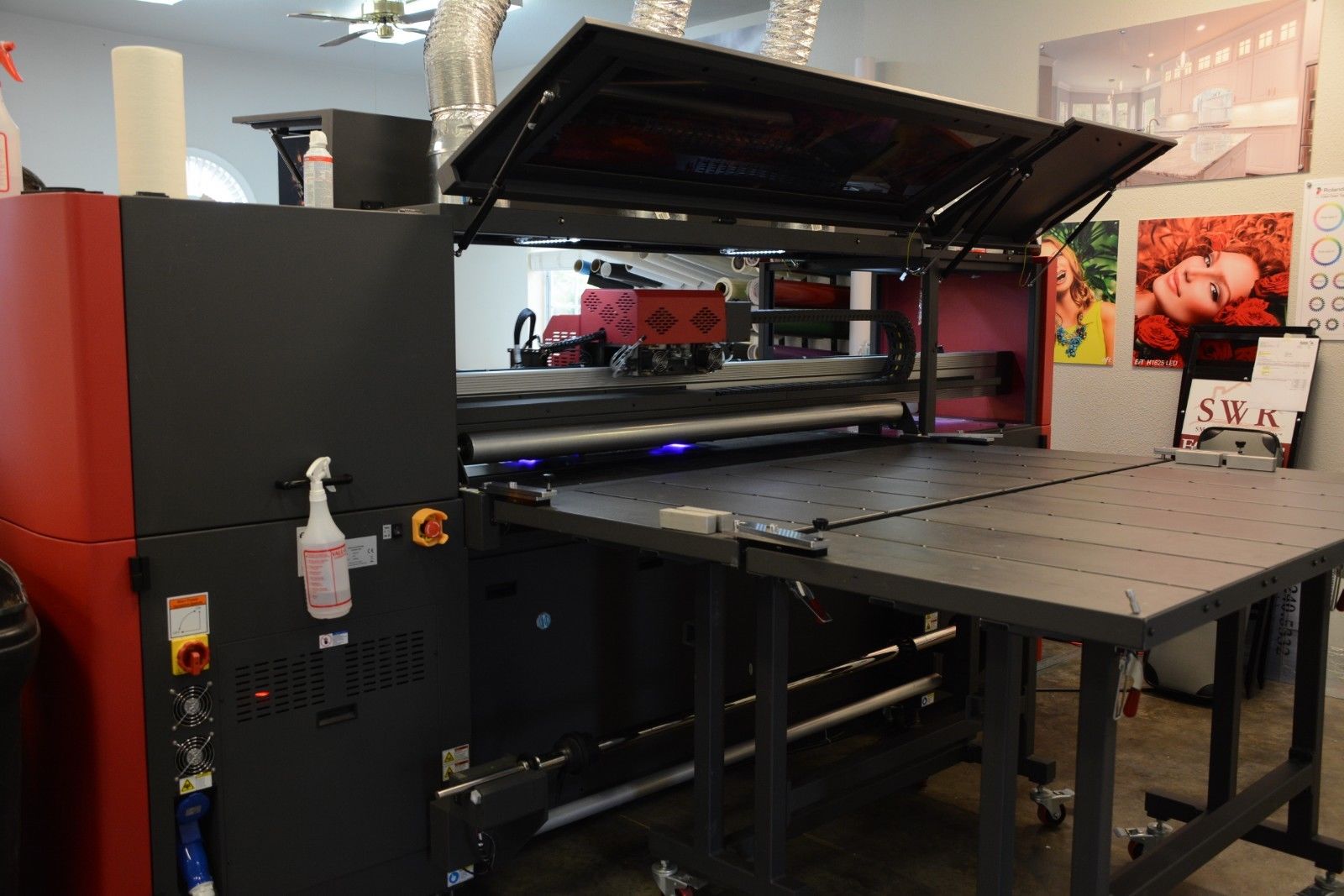

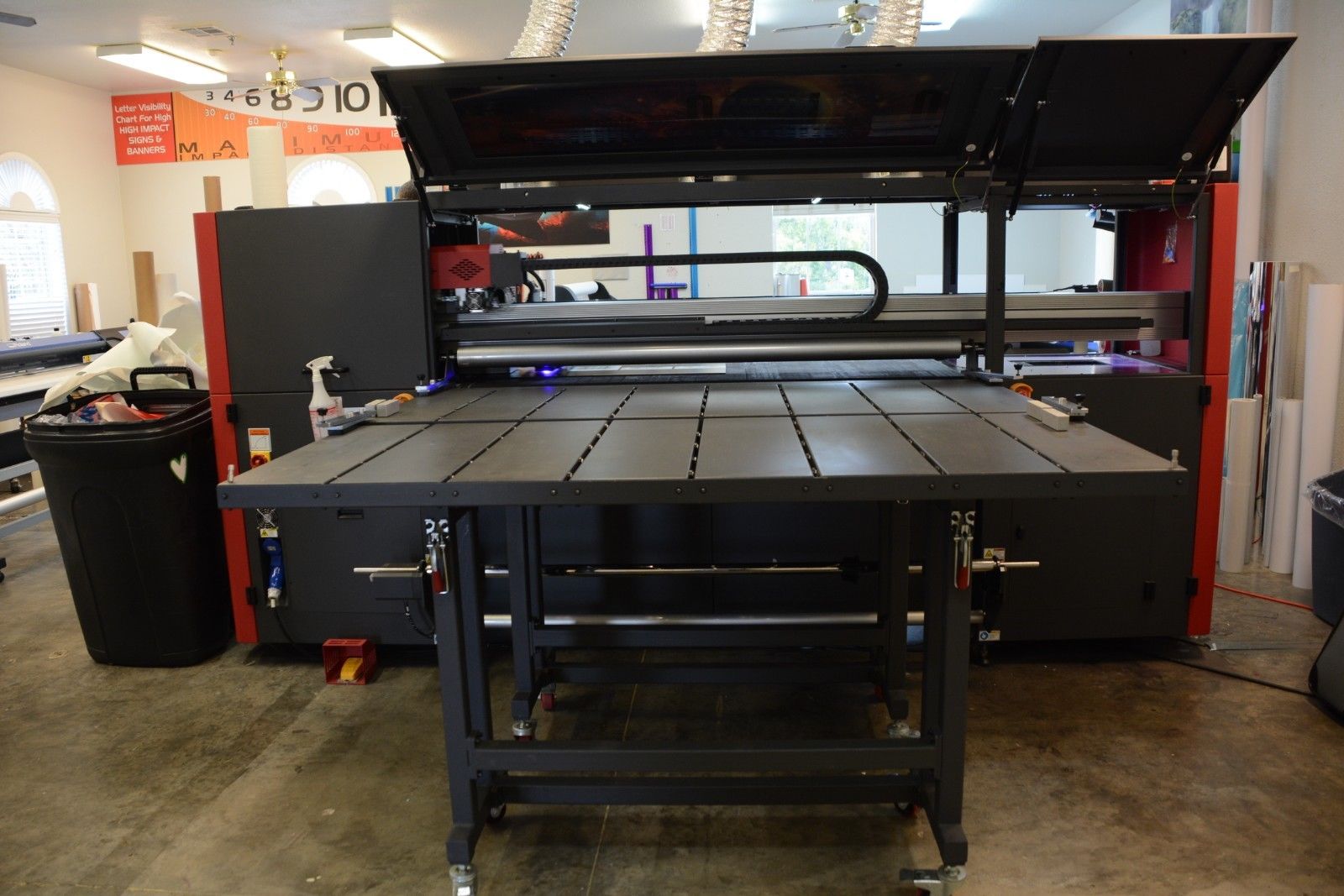

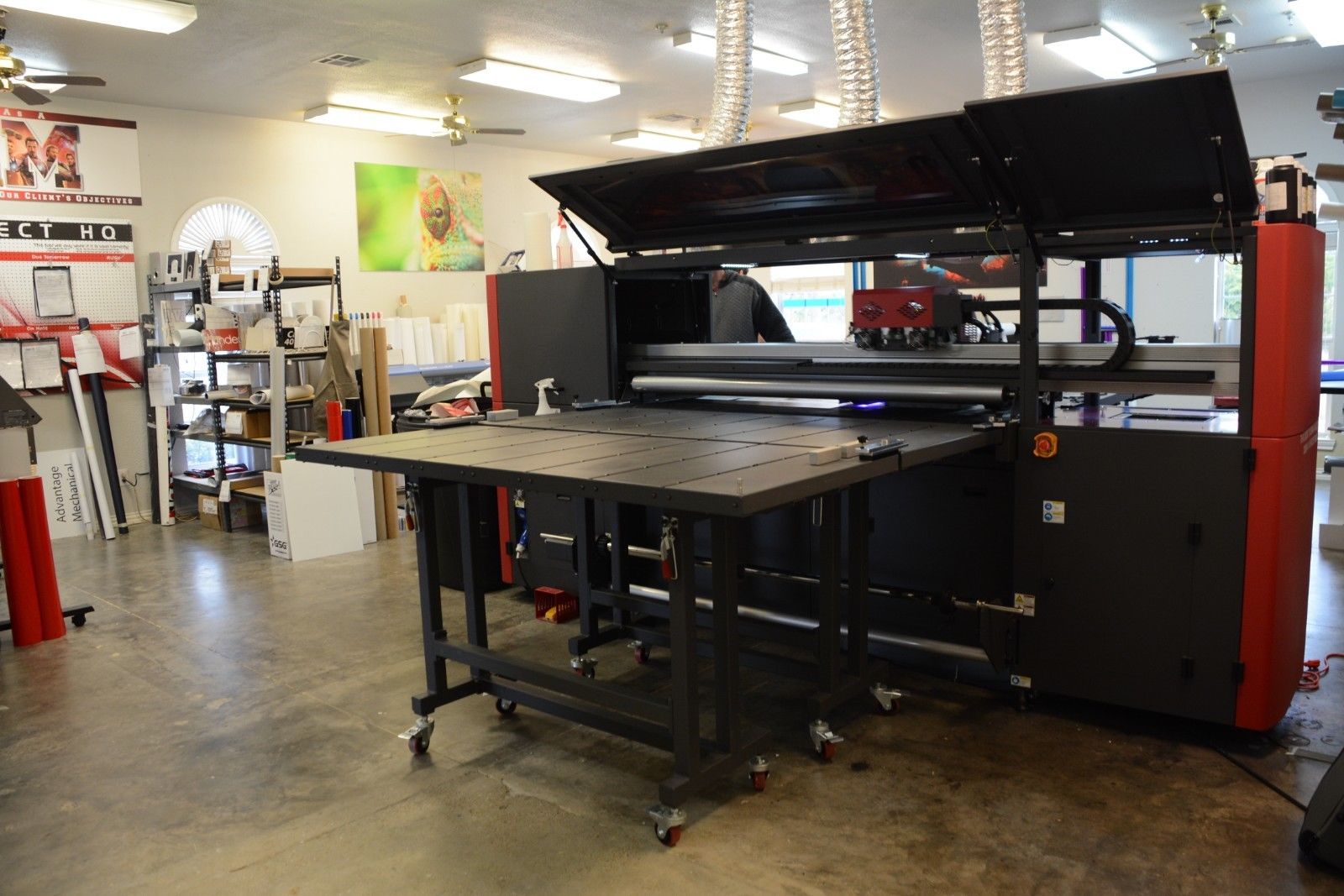

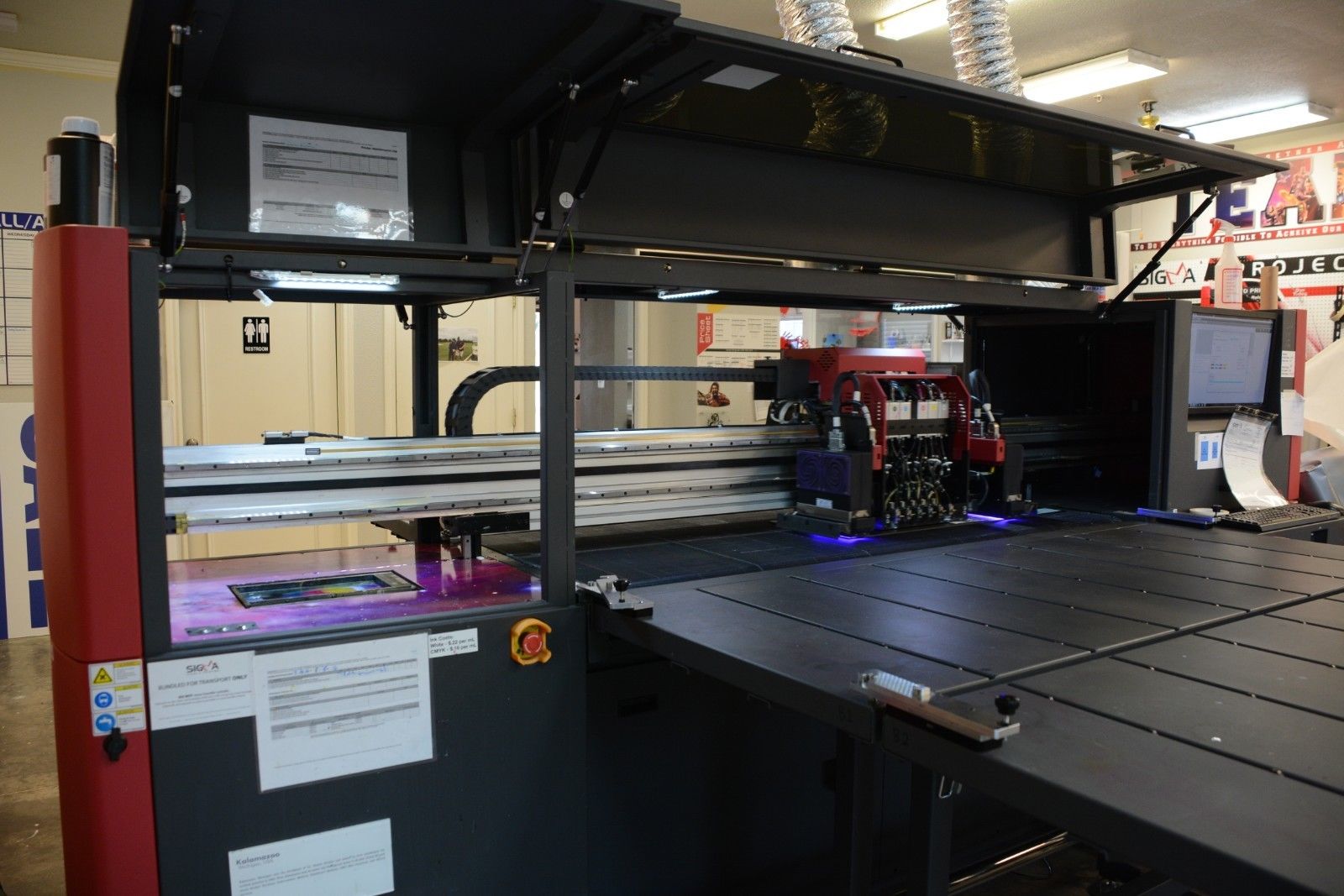

EFI™ H1625 LED White ink and multi-layer print capability to extend your premium margin offering
RIP and print on demand, or print pre-ripped files at the printer
Media/Handling
· Handles flexible and rigid substrates up to 65” (165 cm) wide and 2” (5.08 cm) thick
· Image width 64” (162.6 cm) full-bleed printing
· Vacuum belt drive system with variable control
· Maximum rigid and roll media weight: 100 lbs (45.4 kg)
· Maximum roll diameter: 9” (22.9 cm)
· Modular table design for scalable rigid printing depth
Multiple Print Resolution
· 300 x 300 dpi, 8 levels of grayscale 600 x 600 dpi, 4 & 8 levels of grayscale
· 900 x 900 dpi, 4 & 8 levels of grayscale 1200 x 600 dpi, 8 levels of grayscale
Productivity
· Ultra Quality Mode 35 ft²/hr (3 m²/hr) High Quality Mode 80 ft²/hr (7 m²/hr)
· POP Quality Mode 133 ft²/hr (12m²/hr) Production Mode 247 ft²/hr (23 m²/hr)
· Distant View/Outdoor Mode 319 ft²/hr (30m²/hr) Express Mode 458 ft²/hr (42 m²/hr)
· White printing, one-half CMYK speeds
Print system

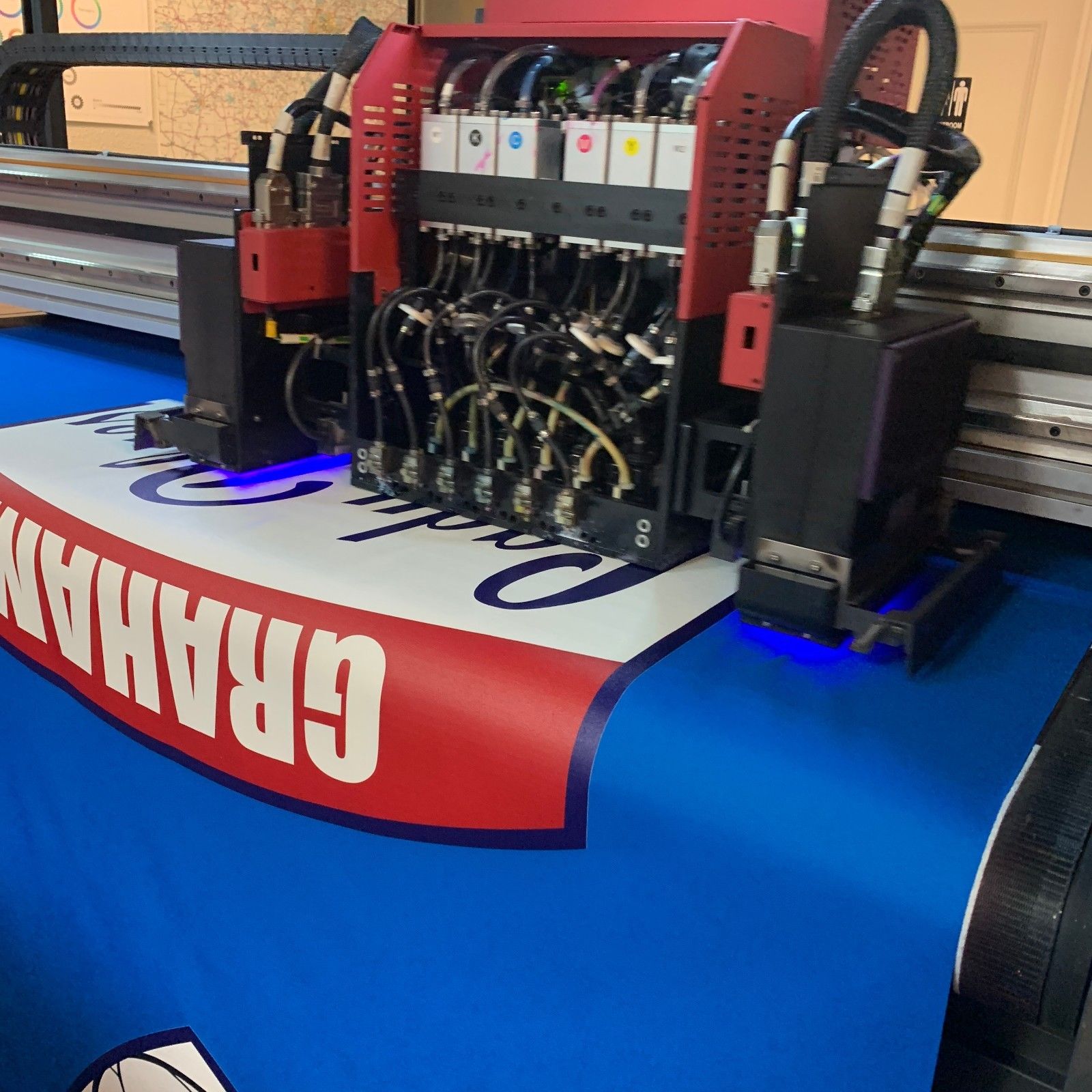

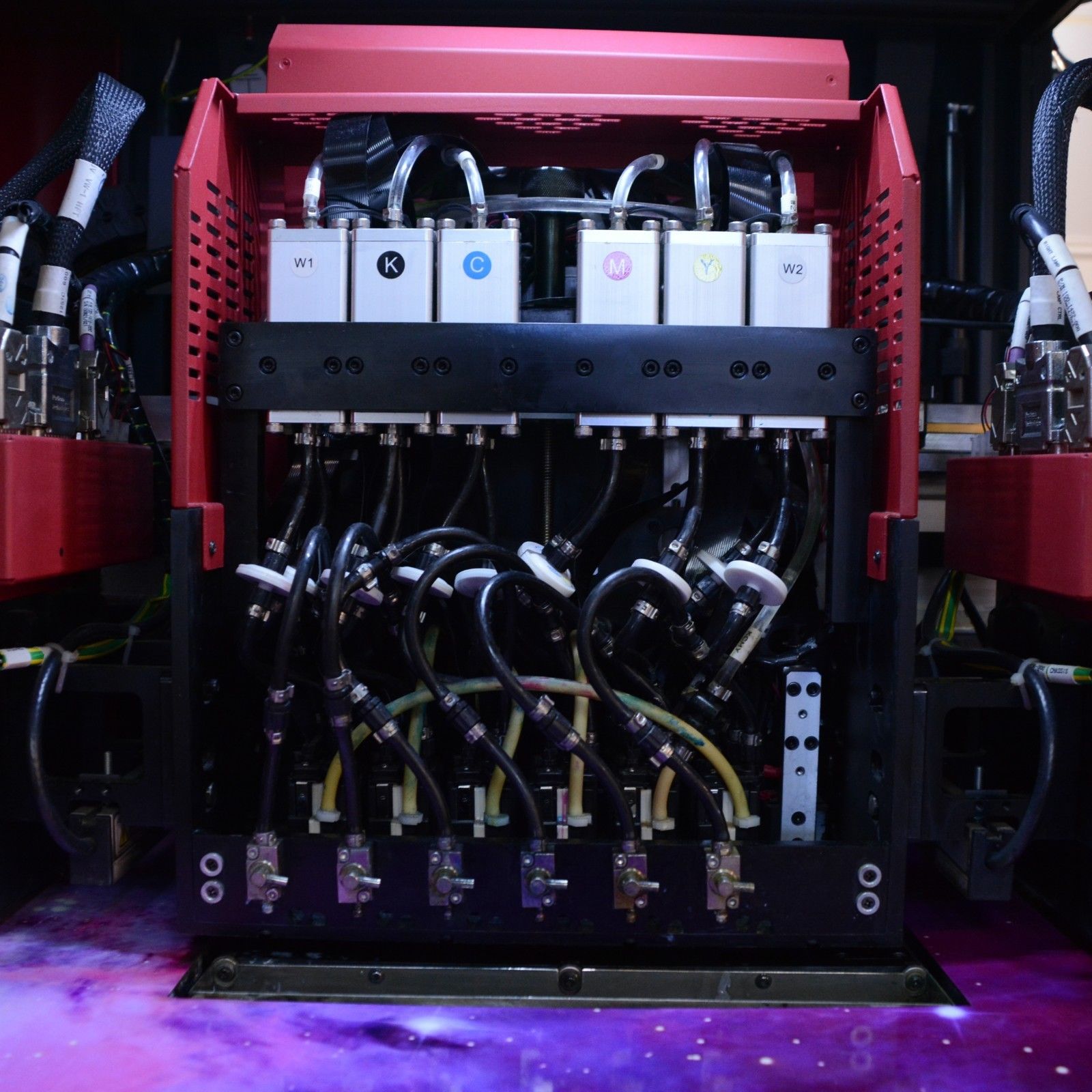

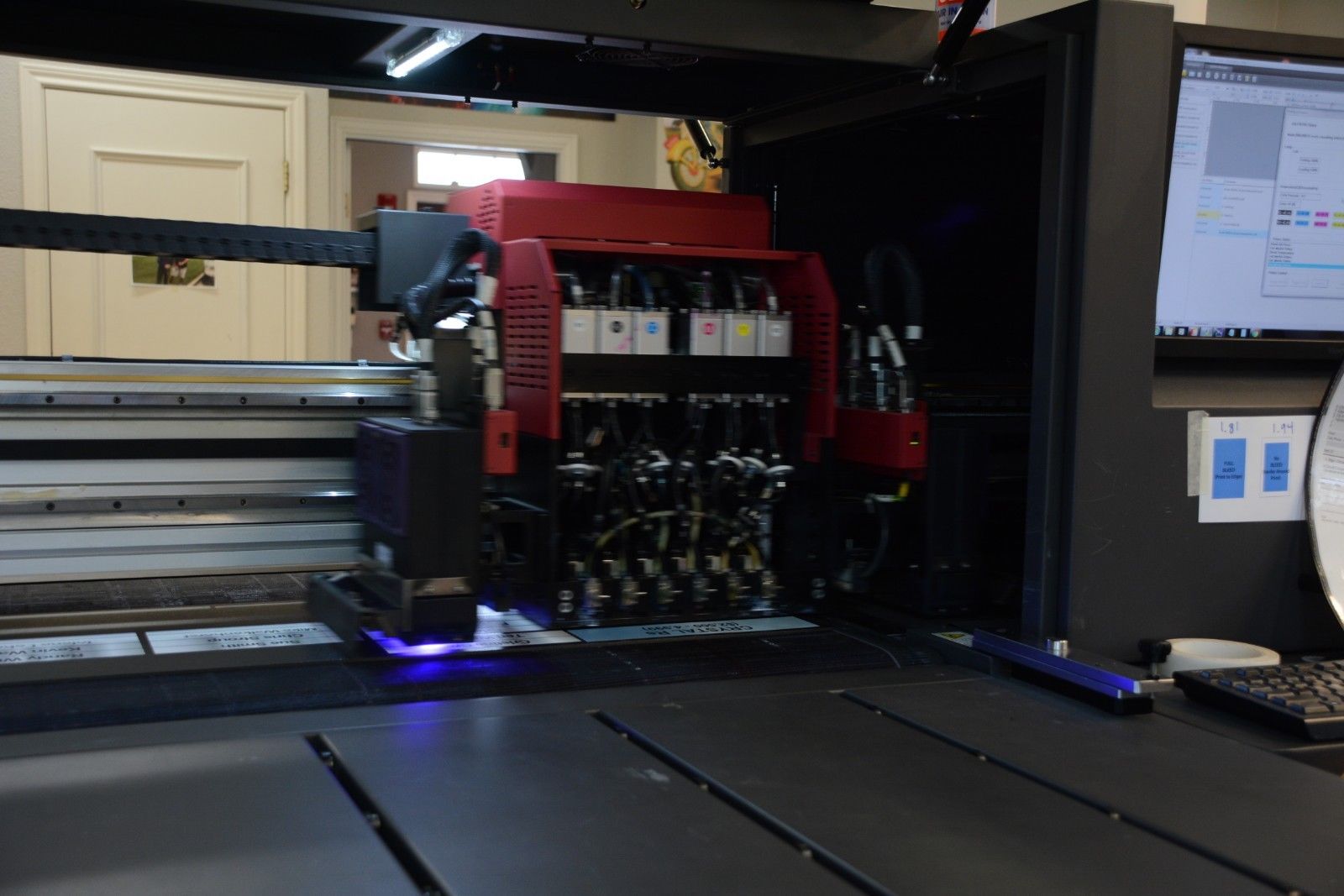

· Six piezoelectric grayscale print heads, up to eight levels of grayscale
· Two LED lamps with dynamic curing settings
Print File Formats
· All popular desktop files formats, including PostScript®3™, EPS, TIFF, PDF and RGB/CMYK
Environmental considerations
· Temperature: 65° F to 80° F (18° C to 26.7° C) Humidity: 20% to 80% (noncondensing)
· Weight: 2,722 lbs (1,235 kg), including tables and rollers
· Dimensions (WxDxH) with one set of tables: 137” (348 cm) x 88” (224 cm) x 64” (163 cm)
· Depth: 36” (91 cm) without tables or rollers, 54”(137 cm) without tables
· Electrical: 208-240 VAC, single phase, 50/60 Hz, 30 Amps
EFI Fiery XF digital front end
Optimized for use with the EFI Fiery XF digital front end. Advanced, easy-to-use, wizard-guided color tools for consistent, predictable, high-quality color. Powerful production tools like nesting, step and repeat, scaling, cropping, and tiling. Advanced ICC color management for reliable color, quality output and proofing-quality color. Scalable, versatile platform grows with your needs as your business grow
Original Price Paid = $120,000
Currently Selling for = $55,000*
*2-year old machine for sale in perfect working order. Machine has been well maintained and has no issues. Machine is clean showing normal use and is ready to be put to work. We are moving locations and our business model is changing - this machine needs a new home.
Pickup preferred - machine is in Dallas/Fort Worth - Freight Service available for an additional fee
For More Information, please mail: dave@sigmahv.com or call 972.317.4467
EFI™ H1625 LED White ink and multi-layer print capability to extend your premium margin offering
RIP and print on demand, or print pre-ripped files at the printer
Media/Handling
· Handles flexible and rigid substrates up to 65” (165 cm) wide and 2” (5.08 cm) thick
· Image width 64” (162.6 cm) full-bleed printing
· Vacuum belt drive system with variable control
· Maximum rigid and roll media weight: 100 lbs (45.4 kg)
· Maximum roll diameter: 9” (22.9 cm)
· Modular table design for scalable rigid printing depth
Multiple Print Resolution
· 300 x 300 dpi, 8 levels of grayscale 600 x 600 dpi, 4 & 8 levels of grayscale
· 900 x 900 dpi, 4 & 8 levels of grayscale 1200 x 600 dpi, 8 levels of grayscale
Productivity
· Ultra Quality Mode 35 ft²/hr (3 m²/hr) High Quality Mode 80 ft²/hr (7 m²/hr)
· POP Quality Mode 133 ft²/hr (12m²/hr) Production Mode 247 ft²/hr (23 m²/hr)
· Distant View/Outdoor Mode 319 ft²/hr (30m²/hr) Express Mode 458 ft²/hr (42 m²/hr)
· White printing, one-half CMYK speeds
Print system
· Six piezoelectric grayscale print heads, up to eight levels of grayscale
· Two LED lamps with dynamic curing settings
Print File Formats
· All popular desktop files formats, including PostScript®3™, EPS, TIFF, PDF and RGB/CMYK
Environmental considerations
· Temperature: 65° F to 80° F (18° C to 26.7° C) Humidity: 20% to 80% (noncondensing)
· Weight: 2,722 lbs (1,235 kg), including tables and rollers
· Dimensions (WxDxH) with one set of tables: 137” (348 cm) x 88” (224 cm) x 64” (163 cm)
· Depth: 36” (91 cm) without tables or rollers, 54”(137 cm) without tables
· Electrical: 208-240 VAC, single phase, 50/60 Hz, 30 Amps
EFI Fiery XF digital front end
Optimized for use with the EFI Fiery XF digital front end. Advanced, easy-to-use, wizard-guided color tools for consistent, predictable, high-quality color. Powerful production tools like nesting, step and repeat, scaling, cropping, and tiling. Advanced ICC color management for reliable color, quality output and proofing-quality color. Scalable, versatile platform grows with your needs as your business grow
Attachments
-

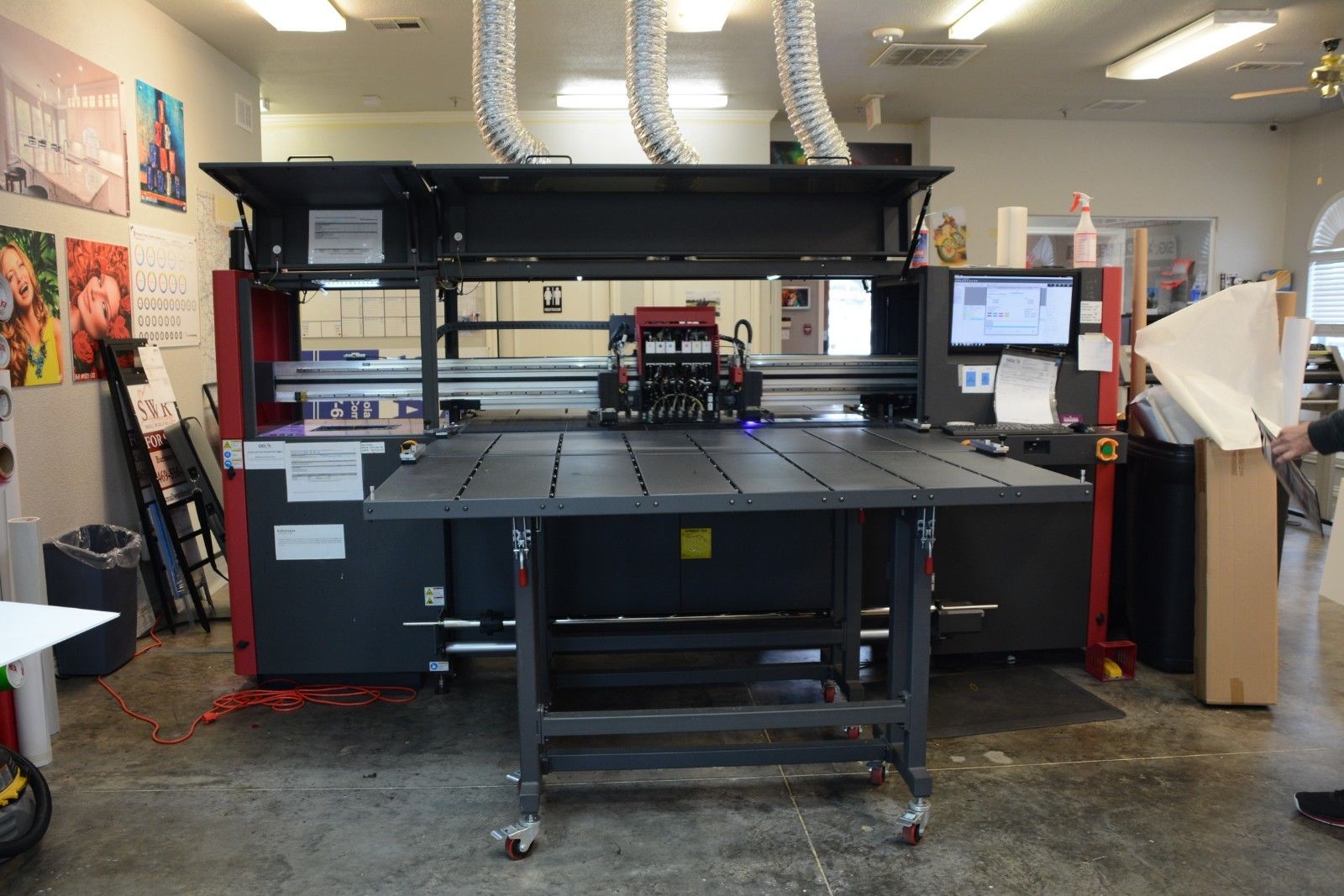

pic1.jpg230.4 KB · Views: 426
-
pic2.jpg197.7 KB · Views: 358
-
pic3.jpg210.2 KB · Views: 344
-
pic4.jpg193.4 KB · Views: 320
-
pic5.jpg181.3 KB · Views: 325
-
pic6.jpg147.5 KB · Views: 320
-
pic7.jpg280.1 KB · Views: 326
-
pic8.jpg199.4 KB · Views: 353
-

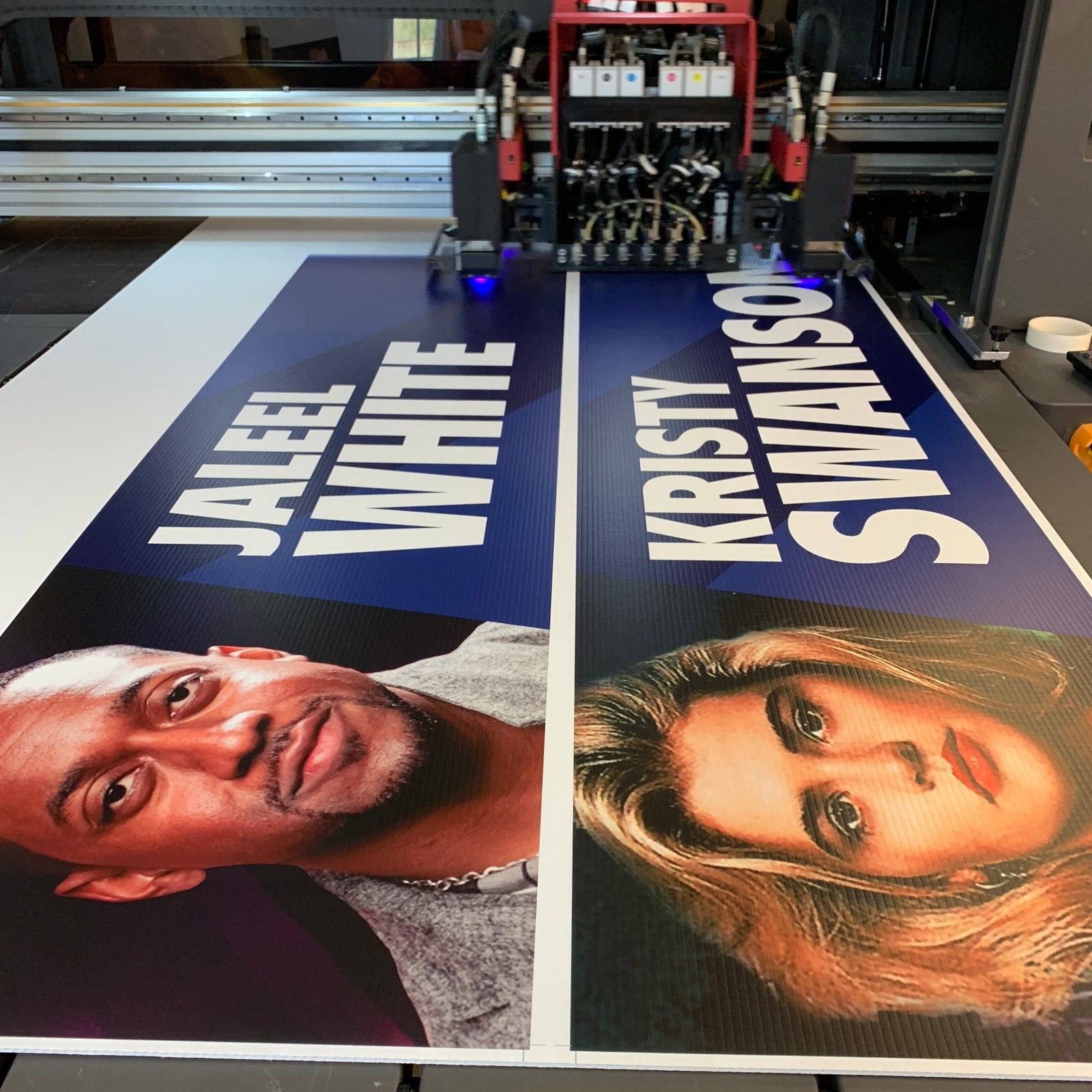

pic9.jpg369.3 KB · Views: 315
-
pic10.jpg292.8 KB · Views: 324
