New JV33 mainboard configuration

[eesanopi]

Hi,

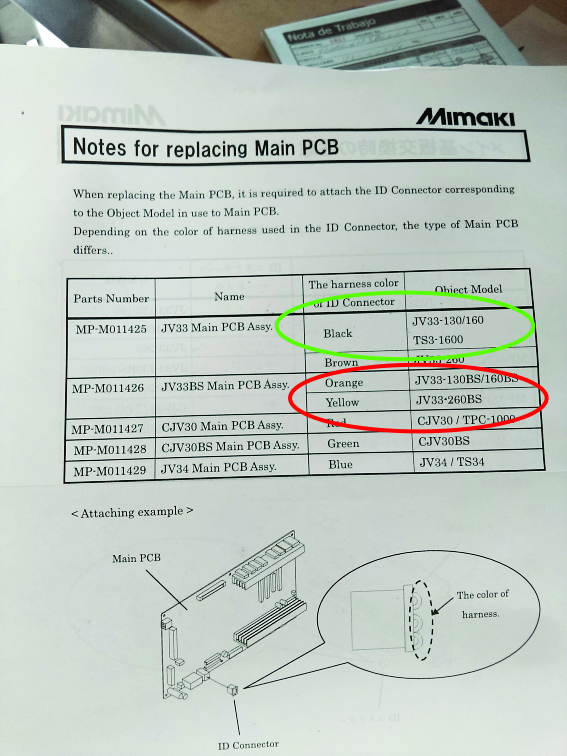

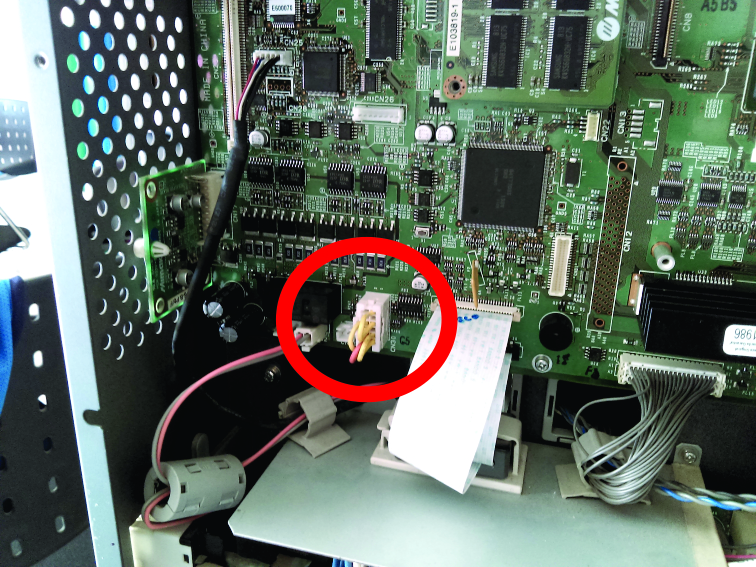

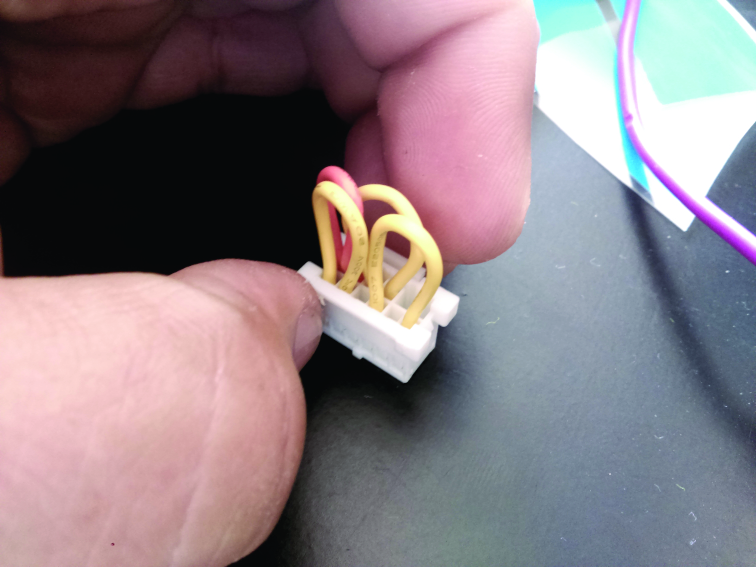

Recently have a damage in the usd port in the mainboard of my mimaki JV33-160 V2.2 machine, this card is old model, i have a new model mainboard, but can´t work because my ink chips are SS21 and card is configured for BS2, this card is configured trough a connector in the card, depending how this conecctor is wired the card is configured, attached you will find a picture of connector and their location in mainboard is in CN30 socket and a copy of mimaki´s document mainboard.

So, i need to know if somebody know the wiring correspondign to my machine, the wires on harness need to be black, or if sombedoy has a machine with this configuration please send me a picture of how this connector is wired.

Thanks in advance for any help.

Regards.

Edgar



[Solventinkjet]

If you bought it new from a Mimaki dealer, the board should have come with the proper connector. See below:

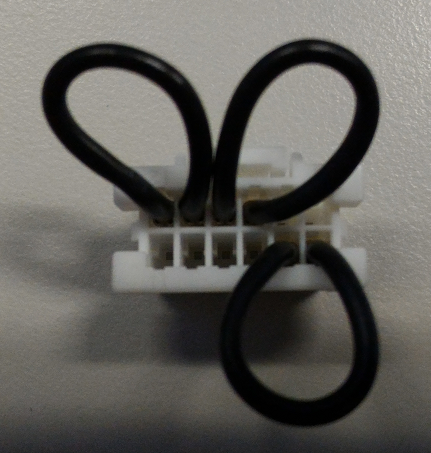

Proper connector:

If you bought the board used, you are out of luck as Mimaki doesn't sell them separately. To make your own (at your own risk!!!) see below:

The pins in the picture above correspond to the numbers below:

12-10-08-06-04-02
11-09-07-05-03-01

Pins 1 and 3 are shorted together,
Pins 6 and 8 are shorted together, and
Pins 10 and 12 are shorted together.

I haven't been able to source the connector and Mimaki won't tell me where to get one so you might have to think of another way to short those pins. Good luck!



[eesanopi]

Thanks a lot, this is the information I was looking for, I know the risk but is the the fastest way to put my printer in operation, so I will try this configuration inmediatly, many thaks for you help.

Best regards from México

Edgar



[Pregasen]

Hi Eesanopi.

Trust you are well. Did u come right with jumper. Which one did u use. I'm in same problem. When I turn on printer with the board for bs on. It gives me error 208 check main pcb ID

Plz help

Machine down now for a month.

Tha KS.

Pregasen



[Pregasen]

Hi Eesanopi.

Trust you are well. Did u come right with jumper. Which one did u use. I'm in same problem. When I turn on printer with the board for bs on. It gives me error 208 check main pcb ID

Plz help

Machine down now for a month.

Tha KS.

Pregasen

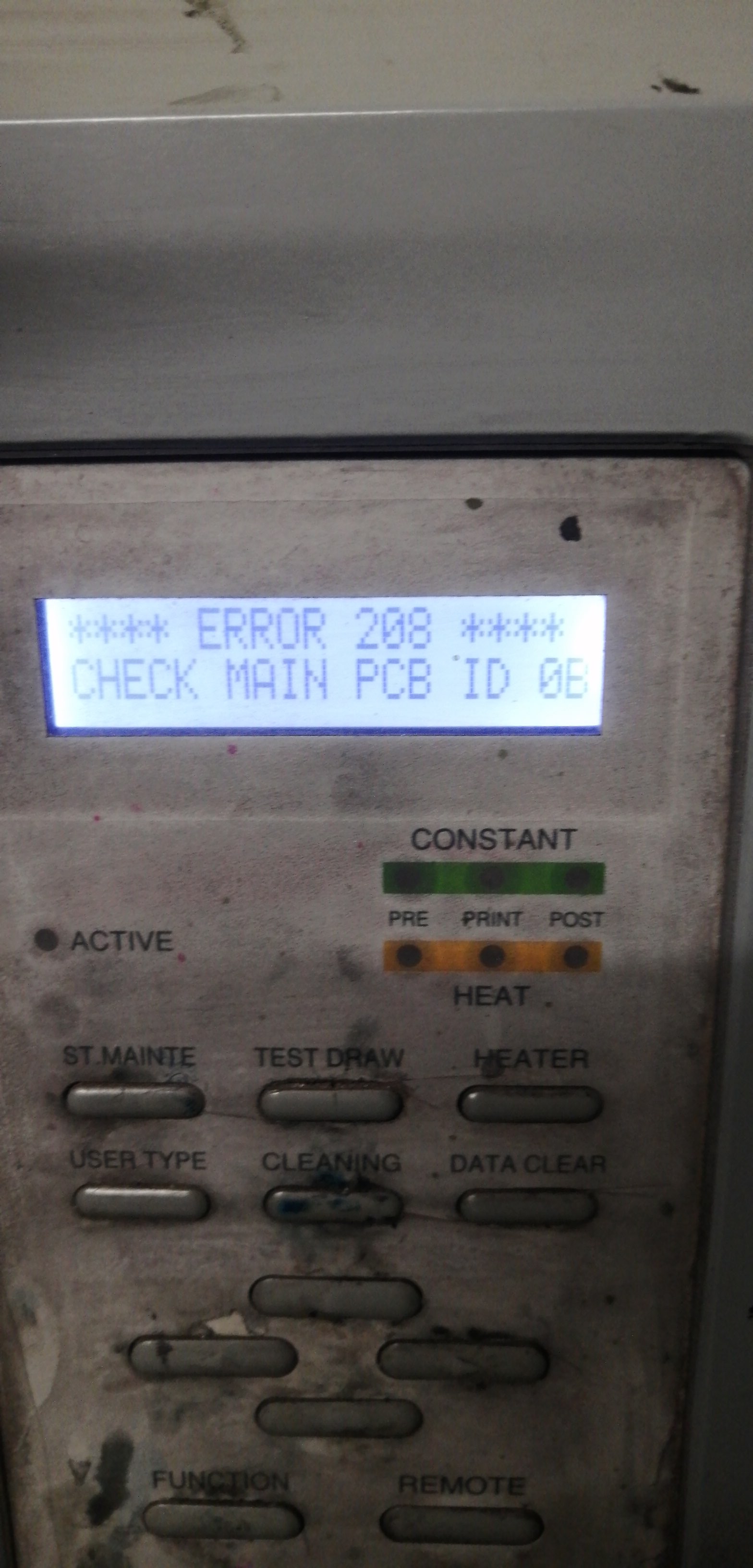

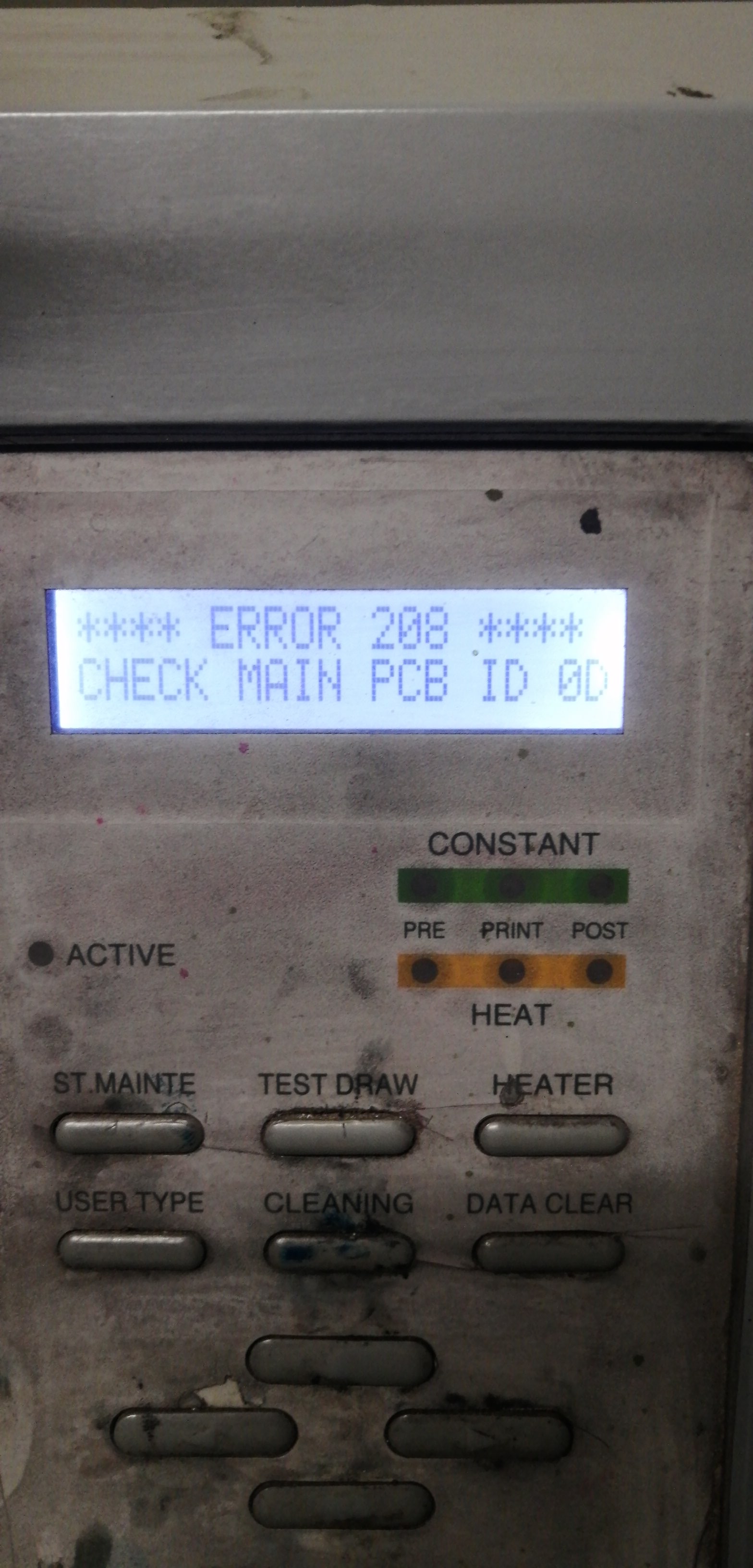

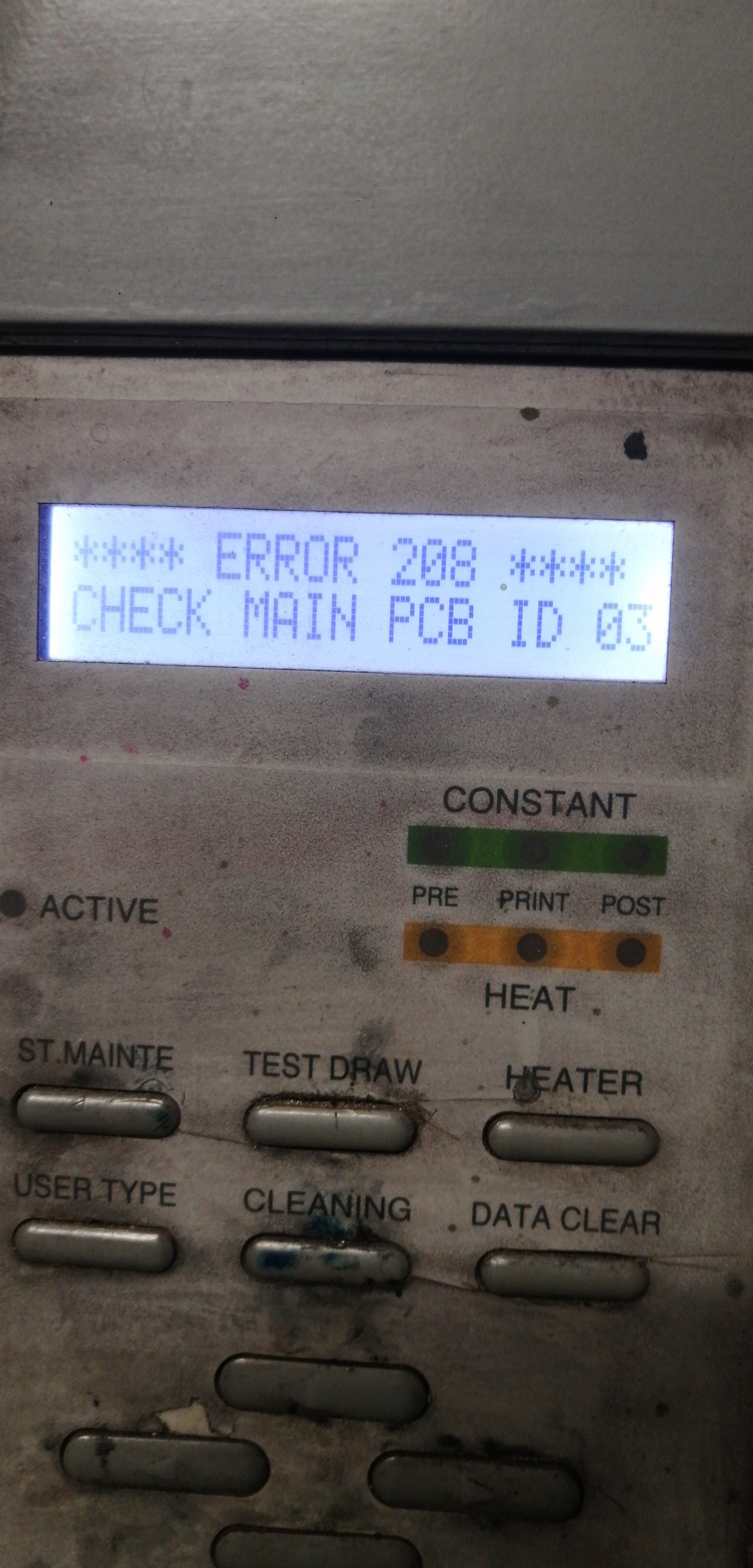

These are error messages with the different jumpers. But I'm missing the black jumper and the orange and yellow jumper.



[Forty One]

Can I be correct in asking that all it takes to change the inktypes on this BS machine is to change over this harness?
