Does the Falcon Outdoor 62 have a print head fuse? The reason I'm asking is I changed heads and now one will not print at all.



[Graphics2u]

Does the Falcon Outdoor 62 have a print head fuse? The reason I'm asking is I changed heads and now one will not print at all.

Yes they do. But you could have one of several problems.

Did you?:
Put in the new head rank info?

Fill the ink lines and Dampers?



[toodark]

No, I did not put in head rank info. ???

Yes, dampers are full along with lines.



[toodark]

Could the ribbon cables be in the wrong position on the motherboard? Which is head 1 and 2?



[Stealth Ryder]

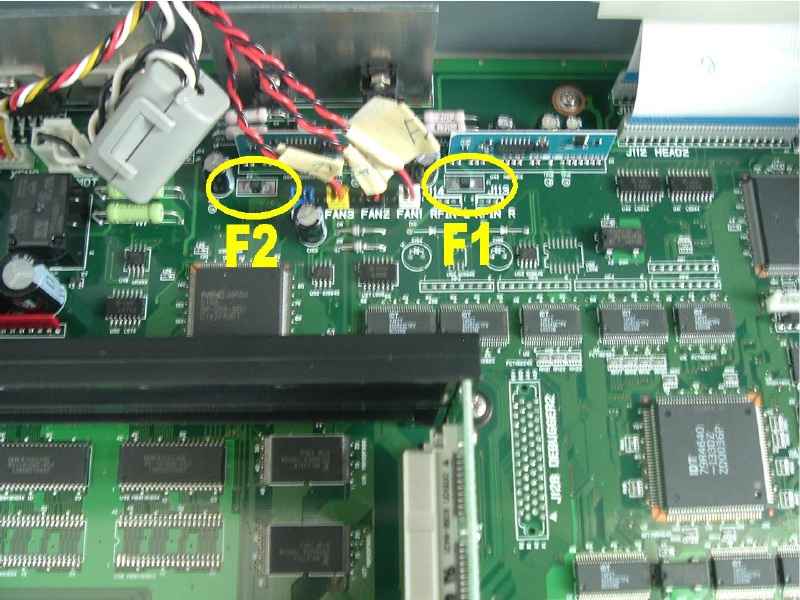

did you remove AC Power from the system before replacing the Print Head??? If you did blow a fuse, here is a pic indicating where they are:



[toodark]

yes, I removed power. That picture looks nothing like mine. ????



[Stealth Ryder]

Well, that is a pic of a Mainboard for a Mutoh Falcon Outdoor 46/62. They are exactly the same only different Firmware. Look in the upper left 1/4 section of the board.



[toodark]

This Printer Is Killing Me

OK, on the motherboard where the ribbon cable goes for the print heads it has head1 and head 2. Looking at the printer from the front is the head on left head 1?



[Stealth Ryder]

That is the Head Board, not the Mainboard... The MB is under the machine in the black box. 5 screws I think and it will hinge down...



[Stealth Ryder]

The MB is approx 18 inches by 10 inches. The flat cables from the HB run directly to the MB, follow them. The fuses are to the left of the Head Cables on the MB.



[toodark]

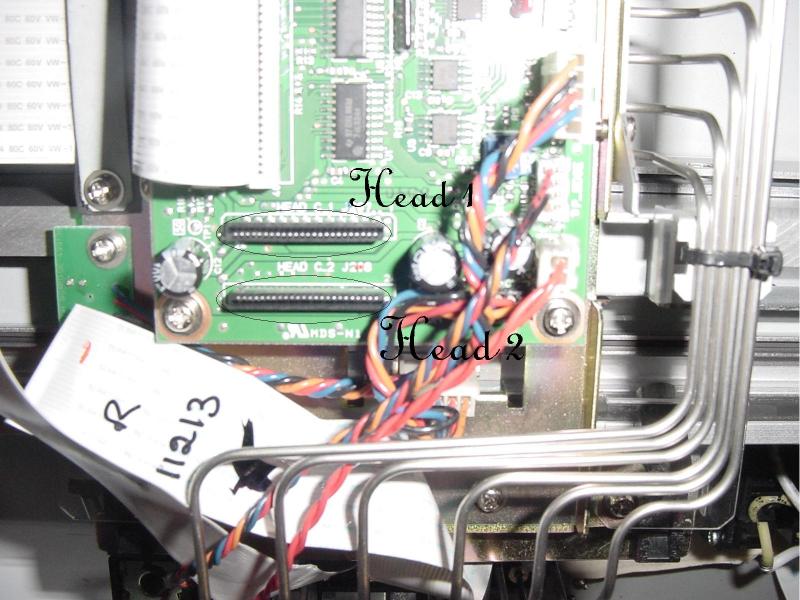

OOOO!!! OK, The ribbon cable runs from the print heads to the HB. the HB has head 1 and head 2. which head is 1 and 2. Looking at the printer from the front is the head on the left 1 or 2? Thanks for all your help stealth. :U Rock:



[Jeana]

38" prismjet not printing

Hello, this is my first posting and i really need help, I have a 38" prismjet, changed the capping station and pump, I can manually pull ink from the drain lines and when doing a cleaning i can watch the ink drain, but when i try to print something no ink is laying on media, and of course they want 100's of dollars to come look at it, any suggestions?



[toodark]

My guess is you have a blown head fuse. Take a meter and measure across the head fuse and see if you have continuity throught the fuse.



[Jeana]

fuses

Hello, how do you remove and replace the fuses?



[OPTIMA GRAPHICS]

Replacing the fuses

I just bought and ebay special and i am having the same issue of no ink out of the print heads. how do you test the fuses to see if they are blown and if they are can the be bought easy enough and installed or does one of the big dollar technicians have to do it.



[bayshorecreations]

Read this ENTIRE thread: http://signs101.com/forums/showthread.php?t=45626

Should help you guys a little



[OPTIMA GRAPHICS]

fuses

doesn't say much qabout the fuse process agree, this is a good consideration that it is a blown fuse but how can i test the fuse, where can i buy them and how do i replace them.



[toodark]

I replaced my fuses with a fuse holder and fuse. I left alone the fuse that were on the board. I did a search on here and found a list of parts I need and di it myself. I do not have the partnumbers for the fuses or holder. I bought them from Radio Shack.

Read this ENTIRE thread: http://signs101.com/forums/showthread.php?t=45626 This was the thred I used. Use a multimeter and measure across the fuse.
