Programmable Full Color RGB WS2812B LED Strip Lights

ledbe

New Member

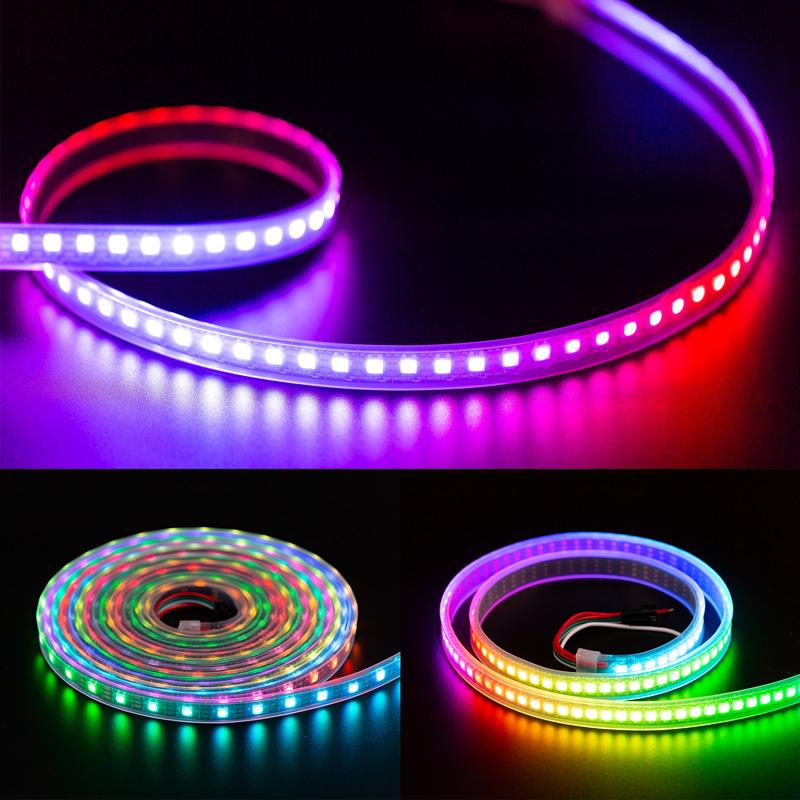

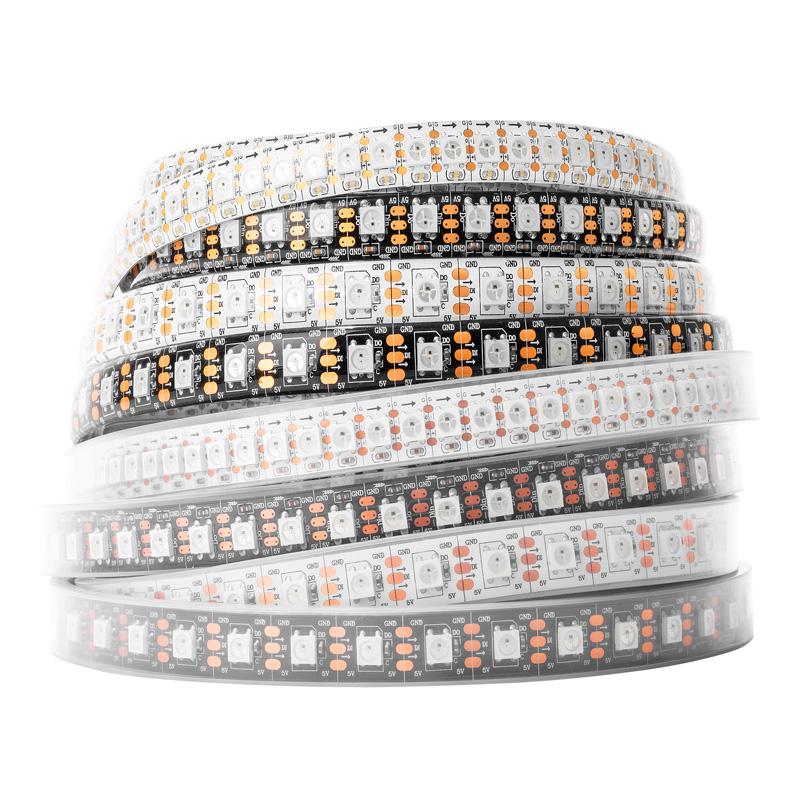

The WS2812B Programmable Full Color LED Strip Lights, the 5050 SMD LEDs built-in WS2812B IC for individually addressable, white and black colors of PCB board available, 30LEDs/60LEDs/74LEDs/96LEDs/100LEDs and 144LEDs per meter available, the length you can take from 1M to 5M pe reel. both ends come with 3pin JSM-SM connectors, easy to connect the controller to achieve hundreds of amazing lighting effects, you can use to DIY any signs.

Link: https://www.ledbe.com/5vdc-individually-addressable-rgb-ws2812b-led-strips










Features:
  • Working Voltage: DC5V
  • LED Type: 5050 RGB SMD LEDs

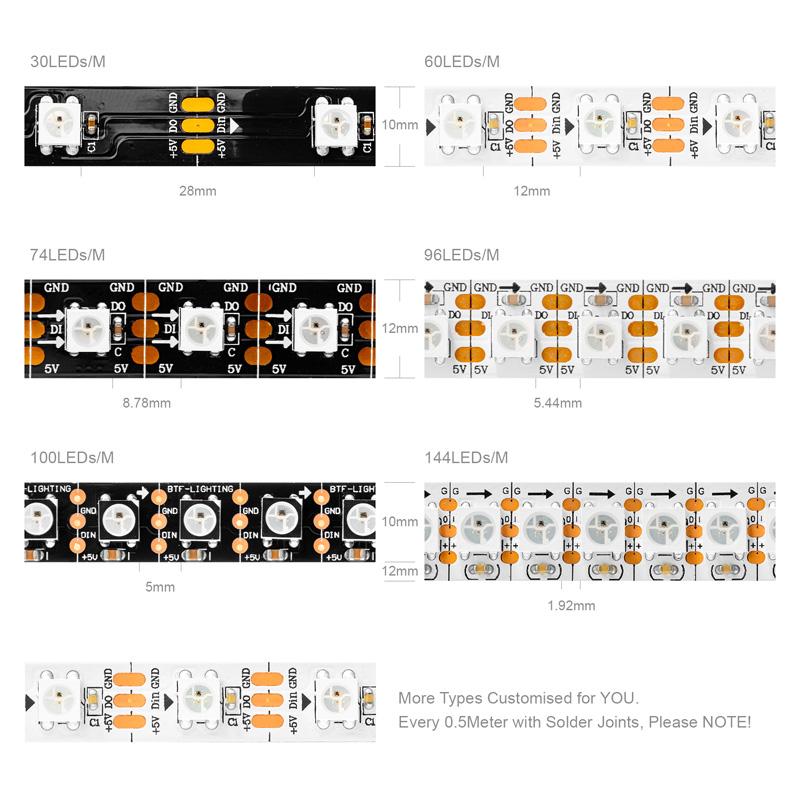

  • LED Quantity: 30LEDs/Meter, 60LEDs/Meter, 74LEDs/Meter, 96LEDs/Meter, 100LEDs/Meter, 144LEDs/Meter
  • IC Type: Built-In IC WS2812B(The Upgraded Version Of WS2812)
  • IC Quantity:30PCS/M, 60PCS/M, 74PCS/M, 96PCS/M, 100PCS/M, 144PCS/M
  • Individually Addressable
  • Grayscale Levels: 256
  • Angle View: 120°
  • Power: 0.3W/LED
  • Emitting Colors: Full Color 24-Bit
  • Colors Of PCB Boards: White/Black
  • Lengths Available: 1M, 2M, 4M, 5M
  • Width: 10mm(30LEDs/M, 60LEDs/M), 12mm(74LEDs/M, 96LEDs/M, 100LEDs/M, 144LEDs/M)

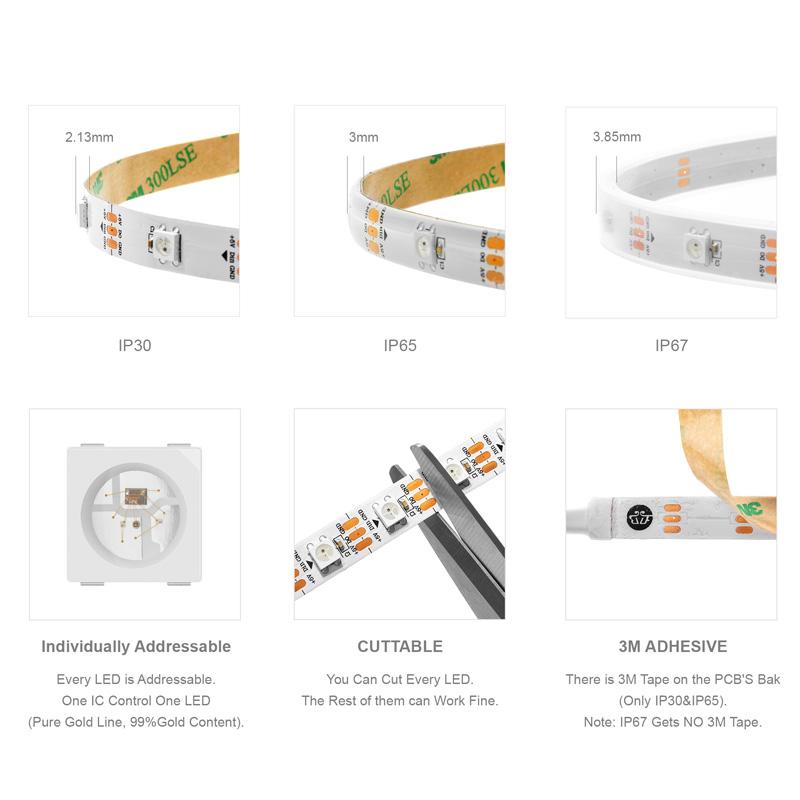

  • IP Rating: IP30 Non-Waterproof, IP65 Coating Waterproof, IP67 Silicone Tube Waterproof
  • 3 Pin JST-SM Connectors Included
  • Compatible With K-1000C, SP110E, SP105E, SP108E, SP110E, SP106E, SP107E, SP501E Programmable LED Controllers
  • Working Temperature: -20°-+40°
  • Wave Length: Red: 620-630nm, Green: 515-530nm, Blue: 465-475nm
  • Every 3PCS LEDs Can Be Cut Off
  • Lifespan: 50,000 Hours
  • 2 Years Warranty
