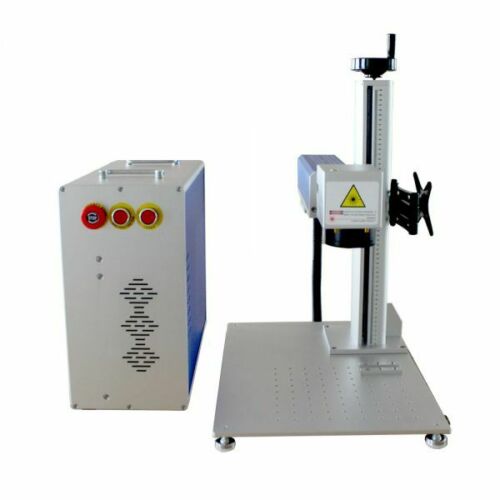

For Sale Raycus 30W Split Fiber Laser Marking Machine Engraver with Rotary Axis FDA

Signs101Admin

Owner
Staff member

Rotation Axis can process 2mm-80mm diameter products, such as rings, jewelry, tumbler, etc.

upgrade rotary Axis

Metal and Non-metal Material Marking​

Rotary Axis Include​

2 red dot focus Function​

Board: Beijing jcz 2.12.0 version​

software: Ezcad2 software​

3 years warranty for Laser

Default Lens : 175mm x 175mm

The machine equip with software.
Fiber Laser Marking Machine mainly consists of four parts: fiber laser, galvanometer scanning system, computer control system and the worktable.



NameOrigin (brand)Remarks

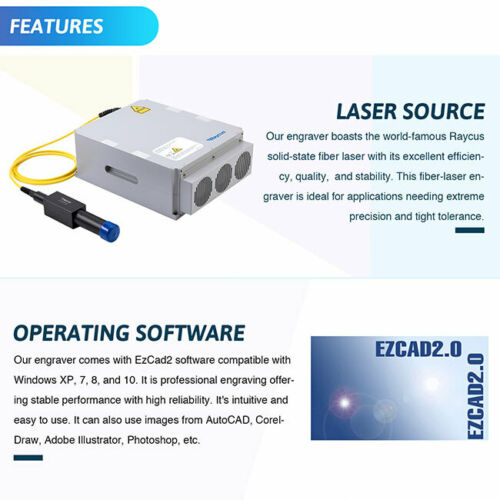

Optical maserRaycus/MAXLong service life, high reliability,
fine beam quality

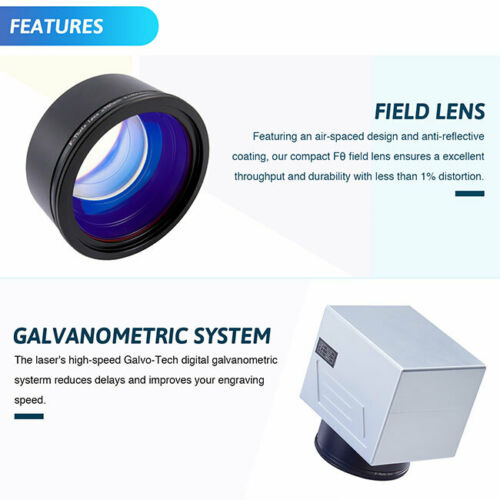

Galvo mirrorSino-GalvoFine marking, more quick and high reliability
F-θ lensWavelengthHigh-quality optical device
Boardbjjcz2.12.0 version
Marking softwareSpecial marking Software
(Ezcad2 software)
Powerful, simple, and convenient operation,
Auto-cad, CorelDraw, AI8.0,
Photoshop software compatible form
Control cabinetChinaOptical fiber special cabinet,
all the mold production, high seal

Feature:
1. Optical Fiber Laser, environment-friendly, easy maintenance.
2. Life of the laser can be up to 100000 hours.
3. Small volume and weight, less than 35KGS.
4. Easy operation software, compatible with PHOTOSHOP, CORELDRAW, AUTOCAD
5. Runs without consumable spare parts, no need maintenance, great for continuous working.
6. Computer System Requirements: Win7, Win8, Win10



Specification:


Specification Form
ModelLMM-JL-30W-S-US
Fiber Laser SourceRaycus/MAX
Output Power30W
Laser wavelength1064nm
Modulation frequency range40-60kHz
Speed0-8000mm/s
Precision0.001mm
Minimum line width0.01mm
Minimum height of characters0.05mm
Cooling wayAir cooling
Marking range175mm x 175mm (6.9in x 6.9in)
Laser power supply0.5KW, 110V/60HZ
SoftwareAuto-cad, CorelDraw, AI8.0, Photoshop software compatible
Rotary deviceYes
Weight35KGS
Computer System RequirementsWin7,Win8,Win10

Details:
1.The galvanometer scanning system is made of an optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
2.The smallest volume, suitable for harsh environment, friendly interface, easy operation.
3.Adopts the high quality, high energy, high stability fiber laser source, prime precision optical galvanometer assembly and the industry’s top software.
4.Compact, lightweight, simple interface, flexible, and adjustable processing direction.
5.The master switch, red light switch, and galvanometer switch,
6.High precision scale
7.Rotary axis is included, you can mark on a regular cylinder or inside / outside ring.

Application Industry:
Jewelry, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products, etc.


Application:



Fiber Laser Machine Applied Materials
MetalNon-metal
AluminumMakrolon Polycarbonate
Stainless SteelBlack / White ABS
CopperNylon
Silicon SteelPolysulphone
Yellow Chromate AluminumRynite PET
BrassSantoprene
Nickel Plated Brass / Gold / Kovar / SteelSillicon Carbide
Nickel Plated 1215 Mild SteelGlass Filled Teflon
Hard Coat Anodized AluminumWhite PEEK
Machine Tool SteelGlass Filled PEEK
Metal Plated CeramicsSilicon Wafers
MagnesiumCarbon Nanotube
MolybdenumColored Delrin
Carbon Fiber / Carbon Nano tubeGE Plastics Polycarbonate Resin 121-R
Clear coat anodized aluminumPolybutylene Terephthalate
Cobalt Chrome Steel
Compacted Powder Iron / Iron Phosphate Coating
1. Aluminum
Aluminum is one of the most commonly marked substrates, and we use it in many industries. Typically, with lighter marking intensity, aluminum will turn white. anodized aluminum looks good, but white marking is not ideal for bare and cast aluminum. More intense laser settings provide a dark grey or charcoal color. Each DLM fiber laser engraving machine is capable of aluminum marking. The ideal system for your application depends on your laser marking requirements. Ablation is the most common marking technique for anodized aluminum, but some people call for etching or engraving.
2. Brass and copper
Brass and copper have high thermal conductivity and thermal transfer properties. So we use it for wiring, printed circuit boards, and pressurized flow meters. Their thermal properties are ideal for laser marking systems for metal because the heat is quickly dissipated. This reduces the impact the laser can have on the structural integrity of the material. Every DLM fiber laser engraving machine is capable of marking on brass and copper and the ideal system for your application depends on your marking requirements. The best marking technique depends on the finish of the brass or copper. Smooth surfaces can offer a soft polished marking effect, but also can do annealed, etched, or engraved. Etching or engraving is best in order to provide readability by humans and machines. In some cases, a dark anneal can work, but surface irregularities can cause reduced readability.
3. Tungsten and Carbide
Tungsten and Carbide are two of the hardest metals on earth and are widely used in tooling and cutting applications. Another popular segment for these substrates is wedding bands for men. Tungsten and carbide are receptive laser marking metals and laser engraving metals. Each and every DLM Laser series is capable of marking on tungsten and carbide and the ideal system for your application depends on your marking requirements. For carbide, because of the darker color it naturally has, getting a contrasting mark is rather easy with even light laser intensity. White color is most common when polishing or annealing carbide and the contrast is extremely good.
4. Chrome
Chrome plating provides a stylish and sophisticated finish and usually requires minimal laser intensity to remove or get through the plating. we need to take ensure the marking happens on the surface only, with no impact to the chrome plating.



Price includes free shipping- 3,900.00 Paypal ready
