Roland SC540 Print problem

[well33t]

Hi,

I am new to printing and I already got weird problem.

My color are all mixed up and I have no idea why

I had a problem one hose was disconnected ( cyan ) and I had to remove the panel and change the fitting and replug it.

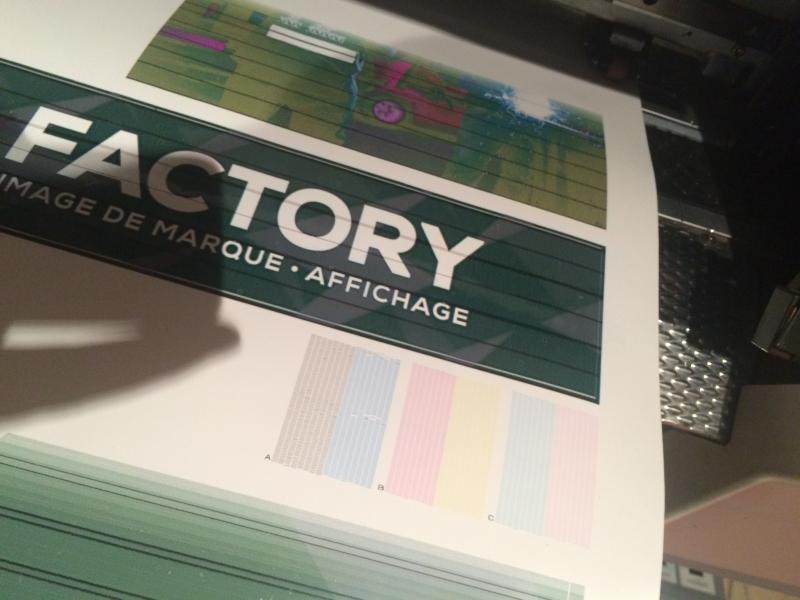

Then the color got all mixed up after that. The thing that I find really weird is that when I do a test print directly on the printer, the color output are all good.

Can you guys help me please?

thanks a lot



[well33t]

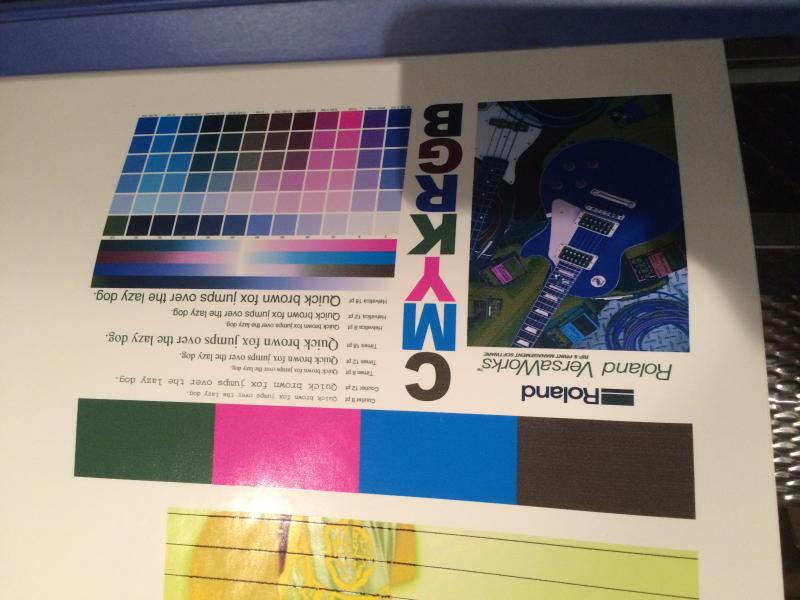

it seems that my color are mixed up. I made a file in illustrator with different color separated. this is the result

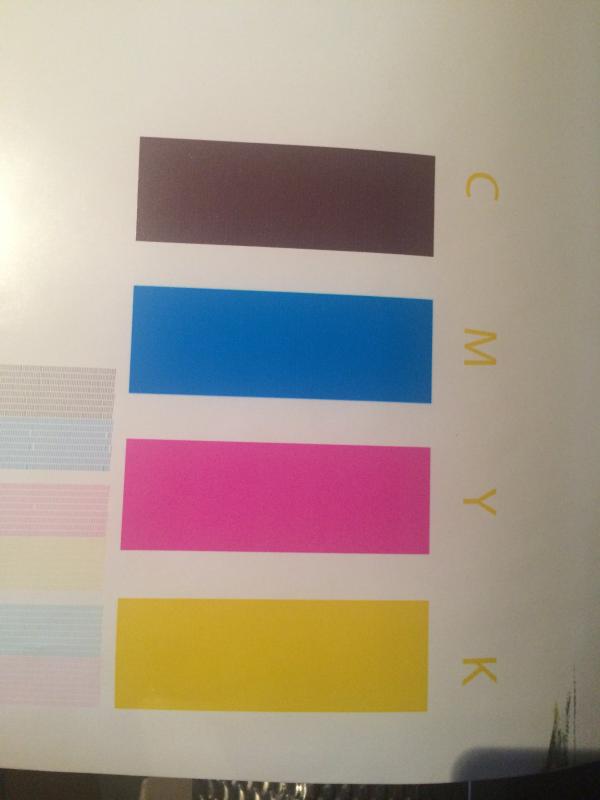

Output from printer

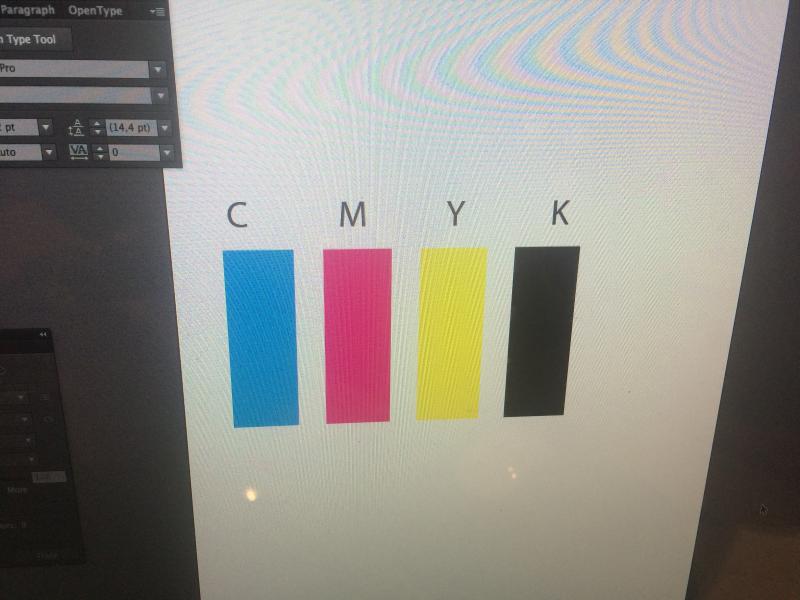

File from illustrator



[El Barto]

Judging from the test prints your heads are firing in the proper order (and quite nicely, to boot). I'm guessing this is a data problem rather than a mechanical one. Did you remove any of the ribbon cables? Was it printing properly before you reconnected a hose?



[well33t]

Yes it was printing correctly before reconnecting the hose. I might have disconnected one of the cable by accident. I dont know where to look though. Which of the cable could be the problem ?



[Desert_Signs]

Judging from the test prints your heads are firing in the proper order (and quite nicely, to boot). I'm guessing this is a data problem rather than a mechanical one. Did you remove any of the ribbon cables? Was it printing properly before you reconnected a hose?

Are the heads in an SC540 in a different order than the XC540?

XC540 prints C M Y K lM lC.



[kffernandez]

check if the inkset settings in your SC-540 menu is correct. after that. check if it is also correct in your rip.
since it appears that all your heads are firing correctly, i will put my money on this issue being a configuration problem.

kelly



[well33t]

My inktype is set to "MAX cm" and I tryed Production manager with my last profile that was working. I also tryed a new one. Then I tryed versaworks with Generic vynil 2. Still having issue

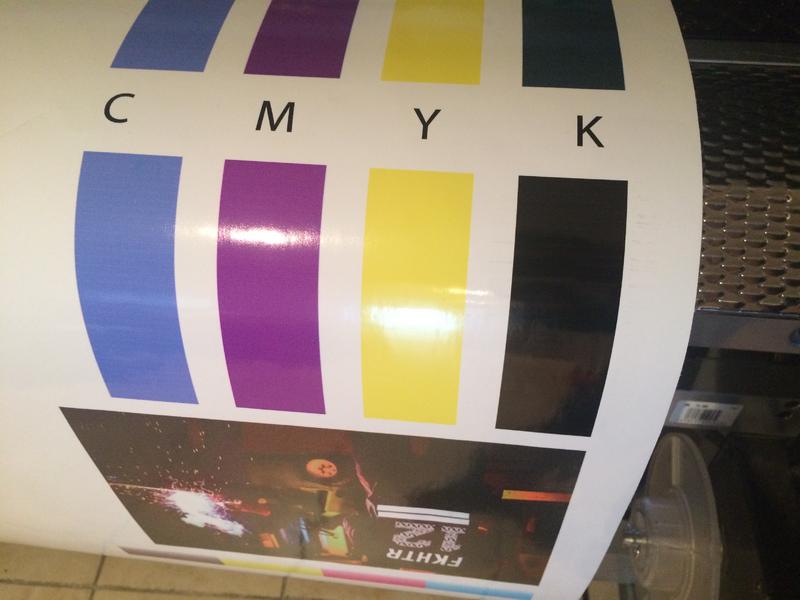

I also changed my damper order. It was Black, Cyan, Magenta, Yellow. Now I switch it to C, M, Y,K and here's the result.



[El Barto]

Are the heads in an SC540 in a different order than the XC540?

XC540 prints C M Y K lM lC.

Yup. My SC prints KC MY LcLm, just like his test print.



well33t: Damper order? How and where? That made a pronounced difference.
