premiercolour
Merchant Member
Make offer: sales@premiercolour.com
Machine is located at our facility.
Specifications:

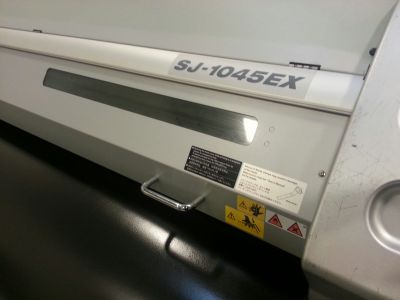

Model: SJ-1045
Year: 2008
Printing method: Piezo inkjet
Printing width: 47-1/4 to 102-1/3 inches
Acceptable media width: 48 to 104 inches wide
Conditions for usable media: Maximum Roll diameter 9.8inch
Core inner diameter maximum: 3inch.
Media weight: under 225lbs and maximum thickness 1.0mm
Ink Cartridges Type: Exclusive ECO-SOL MAX INK cartridges
Capacity: Choose from 440 or 220 cc cartridges +/- 5 cc each
Colors: 4 Colors (CCMMYK) or 6 Colors (CMYKLcLm)
Printing resolution Max: 1440 dpi
Setting range for the heater temperature:
Pre heater: 30 to 50 C
Print heater: 30 to 50 C
Drier: 30 to 50 C
Distance Accuracy:
(For printing while the heater is running) Error of less than +/- 0.3% of distance traveled, or 0.3 mm, whichever is greater (at SVG-1270G, print traveled 1m, temperature 20C, humidity 50%, heater temperature 40C)
Interface Network interface Ethernet 10Base-T or 100Base-TX
Power-saving feature: Auto sleep
Electrical source: AC 200V +/- 10% 50 / 60Hz 10A
Power Consumption Printing mode: 1800 W
Standby mode: 55.4W
Acoustic noise level Printing mode: 65dB(A) or less (According to ISO 7779)
Standby mode: 40dB(A) or less (According to ISO 7779)
Dimensions (with stands): 153.4"(W) x 54.9"(D) x 54.9"(H)
Weight (with stands): 1003lbs
Recommended environment: Power on Temperature 20 to 32 C, Humidity 35 to 80% (non-condensing)
Power off: Temperature 5 to 40 C, Humidity 20 to 80%
