Hi all, I had a head strike yesterday and since then have had trouble getting a good print result after cleaning and calibrating. The colours almost seem out of registration. Pics attached before and after. Cheers.


Joe House

Sign Equipment Technician

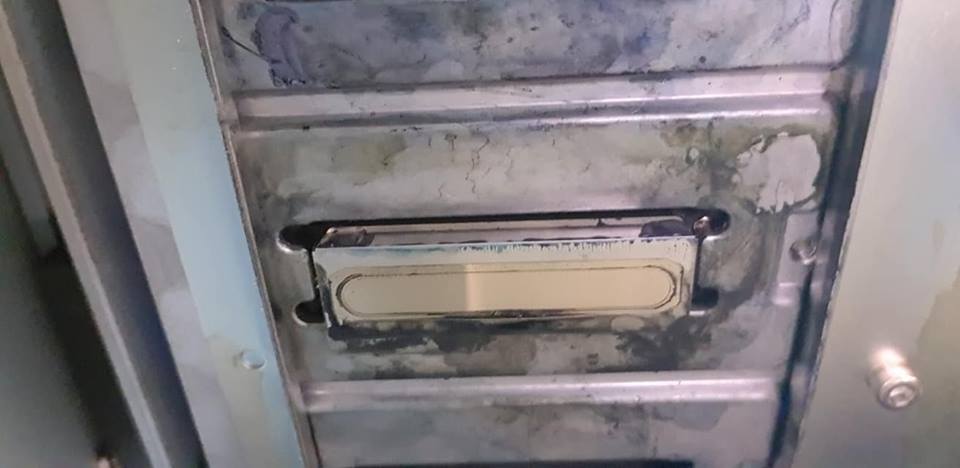

If you didn't damage the head, you may have just knocked it out of alignment physically. Can you post a picture of the bottom of the print heads?


Signosaur

New Member
I think you can make out the sacrificial surround which has a tiny buckle in it.


Attachments

  • 41315563_10218017501054884_3645304929284784128_n.jpg
    39.1 KB · Views: 482

Joe House

Sign Equipment Technician

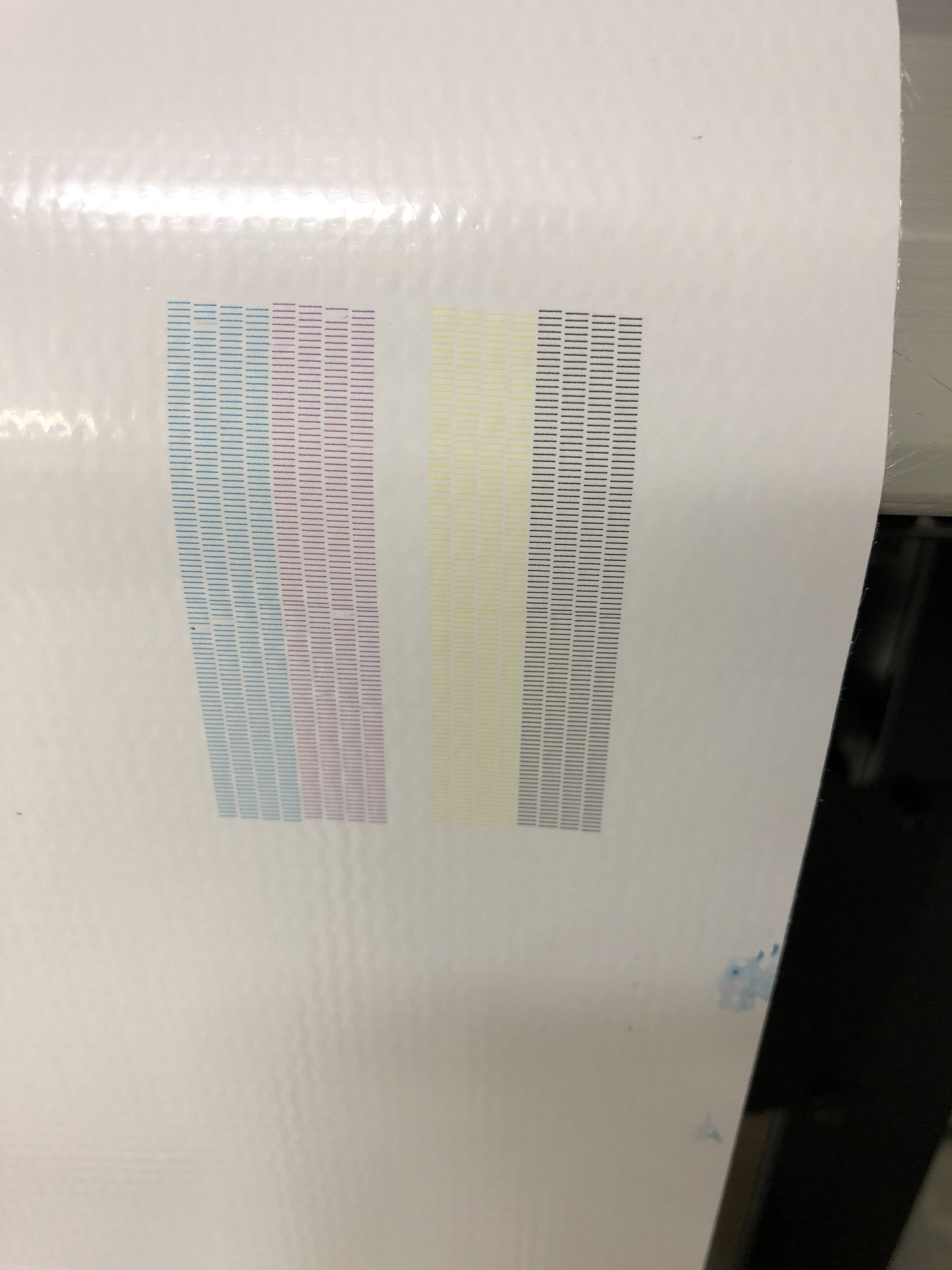

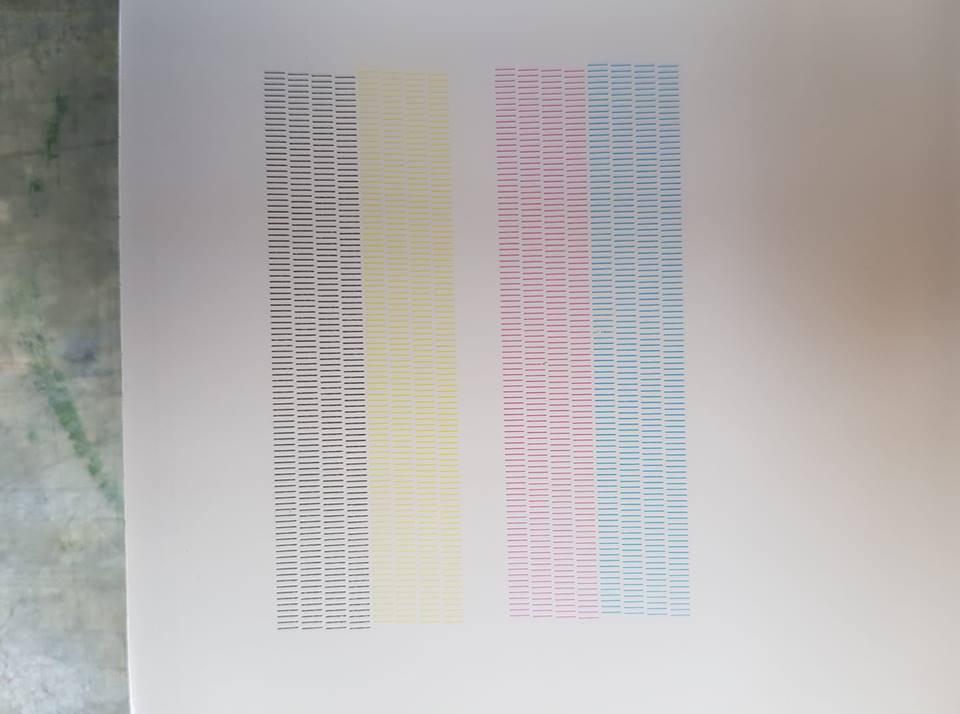

I should have asked you to post a picture of the nozzle test. There is more that can be learned from a nozzle test than if all nozzles are firing. I would guess that the nozzle test is not perfect, but would actually show the misalignment. Do the center colors overlap? Or is there a gap between them?


Signosaur

New Member
I should have asked you to post a picture of the nozzle test. There is more that can be learned from a nozzle test than if all nozzles are firing. I would guess that the nozzle test is not perfect, but would actually show the misalignment. Do the center colors overlap? Or is there a gap between them?


Attachments

  • 41437838_10218050544480949_2501324932407885824_n.jpg
    47.9 KB · Views: 372

Joe House

Sign Equipment Technician
It does look like your cyan/magenta head is knocked out of alignment. Luckily, it is still printing well. Those heads are not individually adjustable. My guess would be that if you looked at the bottom of the heads, head 2 might not be in there flat. The other possibility is that it is still flat, but moved towards the left in the back. If I were hired to fix this, I would start by slightly loosening the 2 screws that hold the head in place and see if the springs realign the head or try to reseat the print head if the bottom does not look parallel to the bed of the printer.

Good Luck


Signosaur

New Member
It does look like your cyan/magenta head is knocked out of alignment. Luckily, it is still printing well. Those heads are not individually adjustable. My guess would be that if you looked at the bottom of the heads, head 2 might not be in there flat. The other possibility is that it is still flat, but moved towards the left in the back. If I were hired to fix this, I would start by slightly loosening the 2 screws that hold the head in place and see if the springs realign the head or try to reseat the print head if the bottom does not look parallel to the bed of the printer.

Good Luck
Thanks Joe, I did have the technician up last week for a look, but he seemed a bit vague with his knowledge. I might have a fiddle. Cheers. I will keep you posted.


Signosaur

New Member
It does look like your cyan/magenta head is knocked out of alignment. Luckily, it is still printing well. Those heads are not individually adjustable. My guess would be that if you looked at the bottom of the heads, head 2 might not be in there flat. The other possibility is that it is still flat, but moved towards the left in the back. If I were hired to fix this, I would start by slightly loosening the 2 screws that hold the head in place and see if the springs realign the head or try to reseat the print head if the bottom does not look parallel to the bed of the printer.

Good Luck
Hi Joe, thanks for the input. I released head screws and re-tightened. This has brought it back significantly. Not perfect but very, very close. This was a Roland technician that looked at it. I am going to a trade show tomorrow and will take down some samples to show them and hopefully get my money back after a complaint or two. Thanks again Joe House.


Cassie Peters

New Member
Glad I could help.

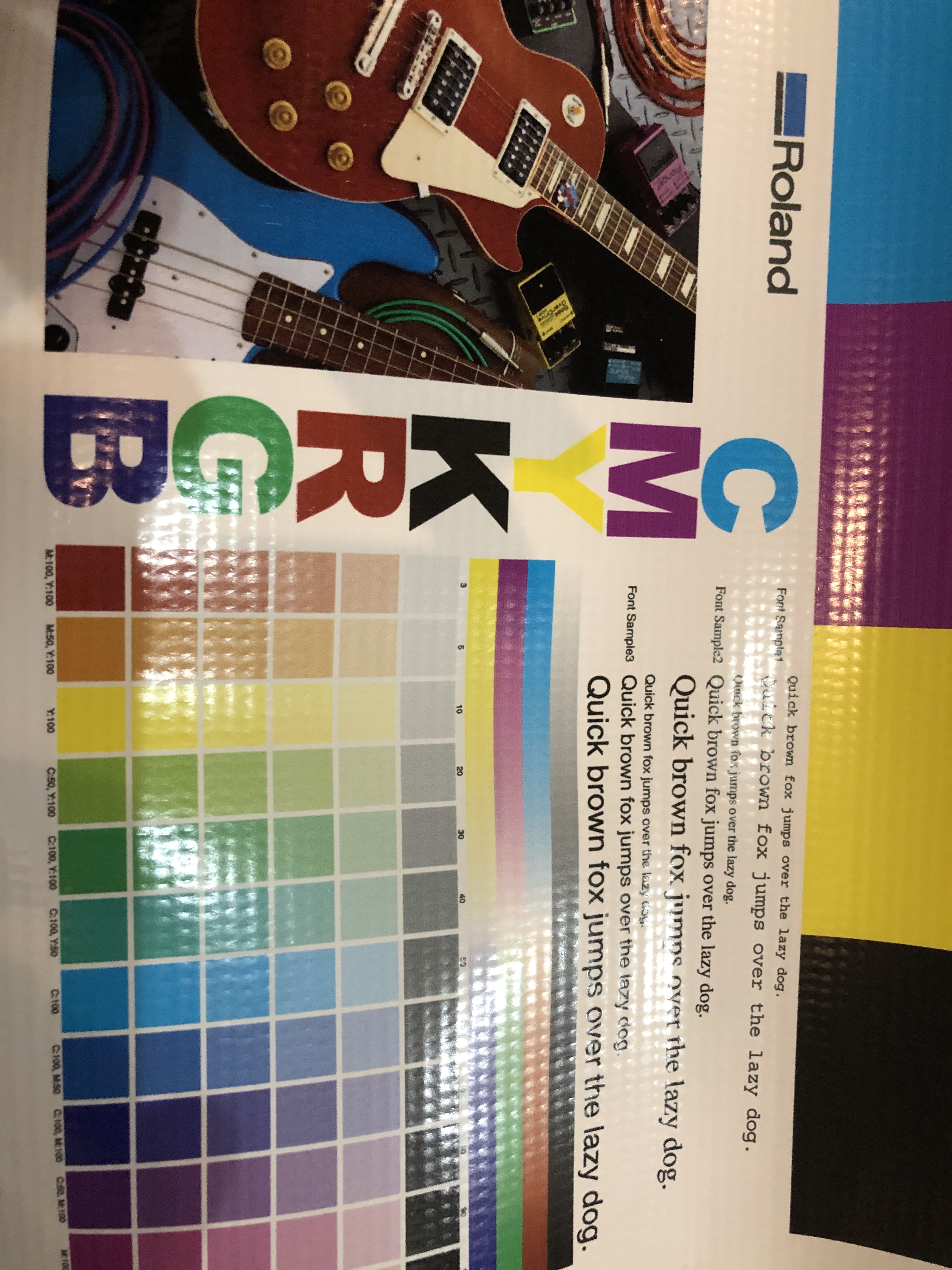

Hey Joe , issues with color printing really dark after changing cartridges and several cleanings still way too dark . Any suggestions? I cleaned the printer this am and all was fine , got a service call error and colors have been bad since I turned back on


Joe House

Sign Equipment Technician

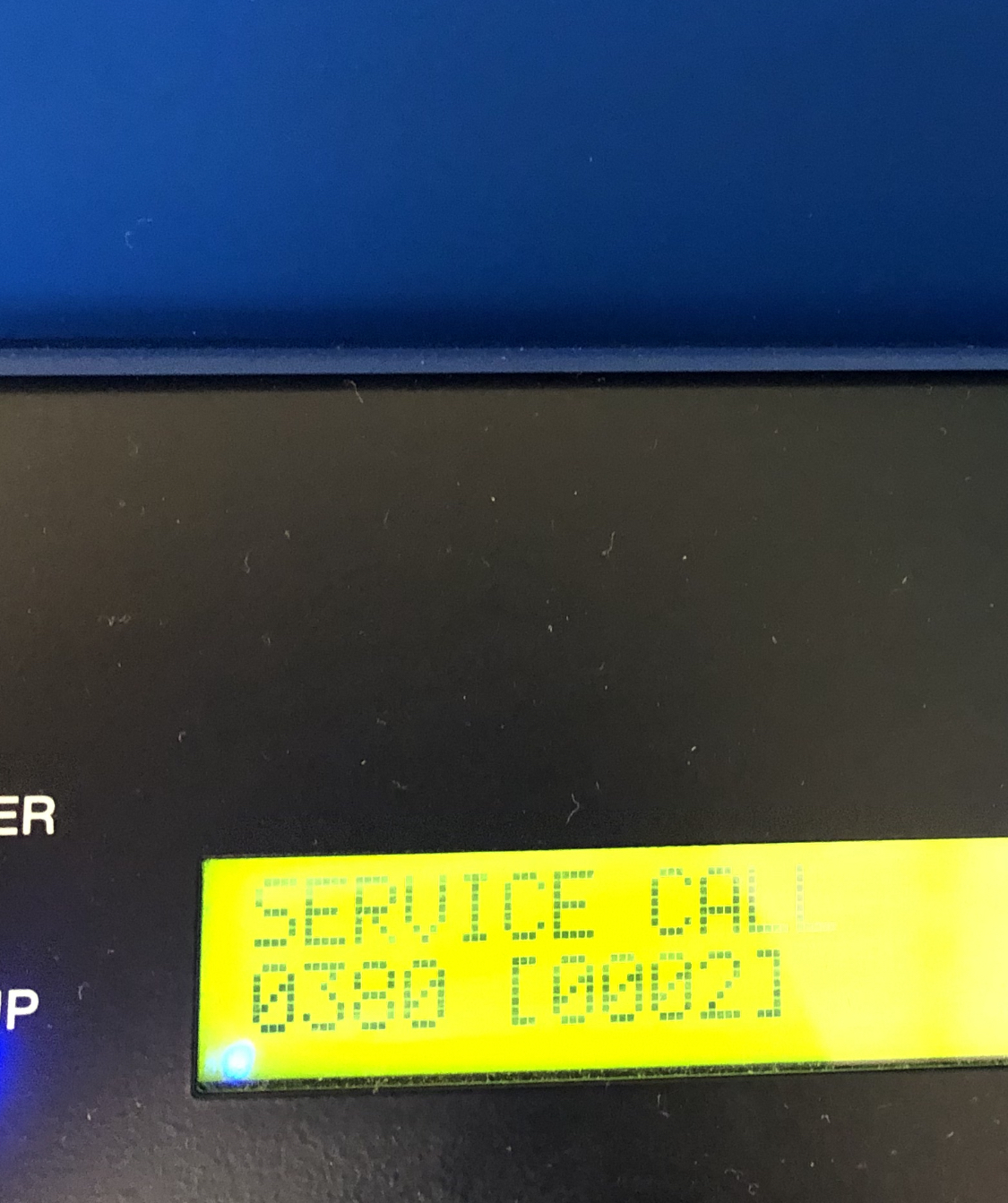

Yikes! What were the numbers on the Service Call Error? How does your nozzle test look? Also, when you turn it off for an error, you should turn it off in back as well as in front. I recommend that you unplug for about 5 minutes as well to make sure that all of the power has drained out of the system. Sometimes this will clear oddball things like this up. Next, check for firmware updates. Even if the firmware isn't bad, simply updating it can reset the brains and correct errors like this. You can get the latest Firmware version by clicking here.

Good luck.


Cassie Peters

New Member
Yikes! What were the numbers on the Service Call Error? How does your nozzle test look? Also, when you turn it off for an error, you should turn it off in back as well as in front. I recommend that you unplug for about 5 minutes as well to make sure that all of the power has drained out of the system. Sometimes this will clear oddball things like this up. Next, check for firmware updates. Even if the firmware isn't bad, simply updating it can reset the brains and correct errors like this. You can get the latest Firmware version by clicking here.

Good luck.
Not sure how to do a nozzle test ?
I was not in the shop when the service call error came up , it was mid print halted and stopped . She turned it off for almost 2 hours until I returned .


Joe House

Sign Equipment Technician
Press Function > Cleaning > Test Print

Try unplugging and firmware upgrade. Without the code, I can't really provide any better direction on how to proceed though.


Cassie Peters

New Member
Yikes! What were the numbers on the Service Call Error? How does your nozzle test look? Also, when you turn it off for an error, you should turn it off in back as well as in front. I recommend that you unplug for about 5 minutes as well to make sure that all of the power has drained out of the system. Sometimes this will clear oddball things like this up. Next, check for firmware updates. Even if the firmware isn't bad, simply updating it can reset the brains and correct errors like this. You can get the latest Firmware version by clicking here.

Good luck.


Cassie Peters

New Member
Press Function > Cleaning > Test Print

Try unplugging and firmware upgrade. Without the code, I can't really provide any better direction on how to proceed though.
Press Function > Cleaning > Test Print

Try unplugging and firmware upgrade. Without the code, I can't really provide any better direction on how to proceed though.
Yes I did that, sorry didn't know the proper name of that test. The service call is 0389
