Shop Drawing templates

Mike Brice

New Member
I'm looking to update our current shop drawings for channel letters and such. Does anyone have recommendations for editable side-views & cut-outs? More than willing to pay but I would like it to include multiple sign types (direct mount, raceway, halo-lit, monument, etc...) and perhaps more information about the uses, tech specs & fabricating materials. I'm not new to the industry, just a senior designer looking to make our proofing & permitting operations a little more professional. Thanks.


Ewedde

Premium Subscriber
Did you ever find anything for this?
I’ve been doing side profiles by scratch, drawing raceways etc, definitely time consuming.


NY Mark

New Member
Heres a few I use, hope this get's you started... These are MY designs, From Flexi 7.5 that I have been using for years.


Attachments

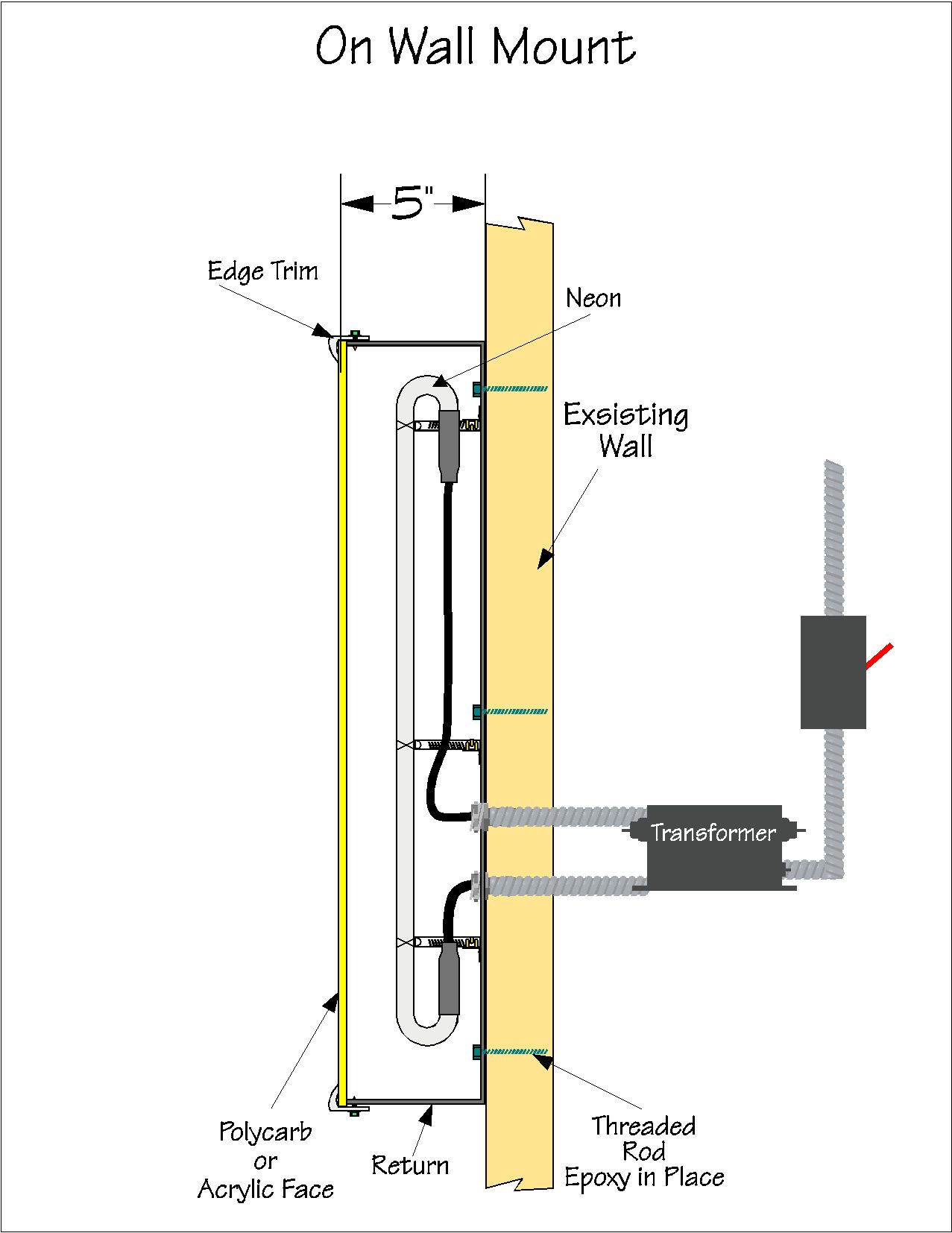

  • Channel Letter Tech Data_Page_1.jpg
    Channel Letter Tech Data_Page_1.jpg
    139.6 KB · Views: 104

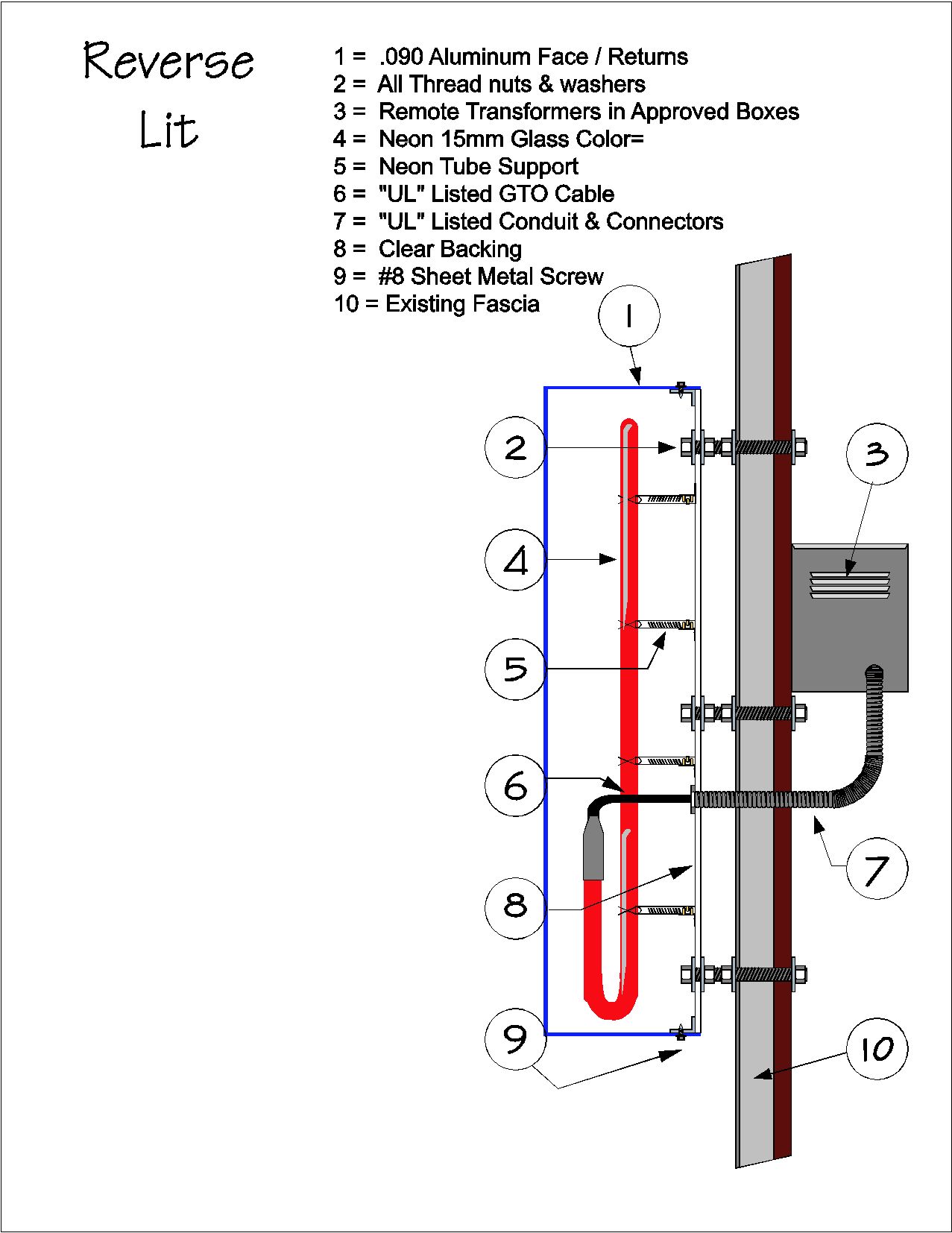

  • Channel Letter Tech Data_Page_2.jpg
    Channel Letter Tech Data_Page_2.jpg
    179.4 KB · Views: 102

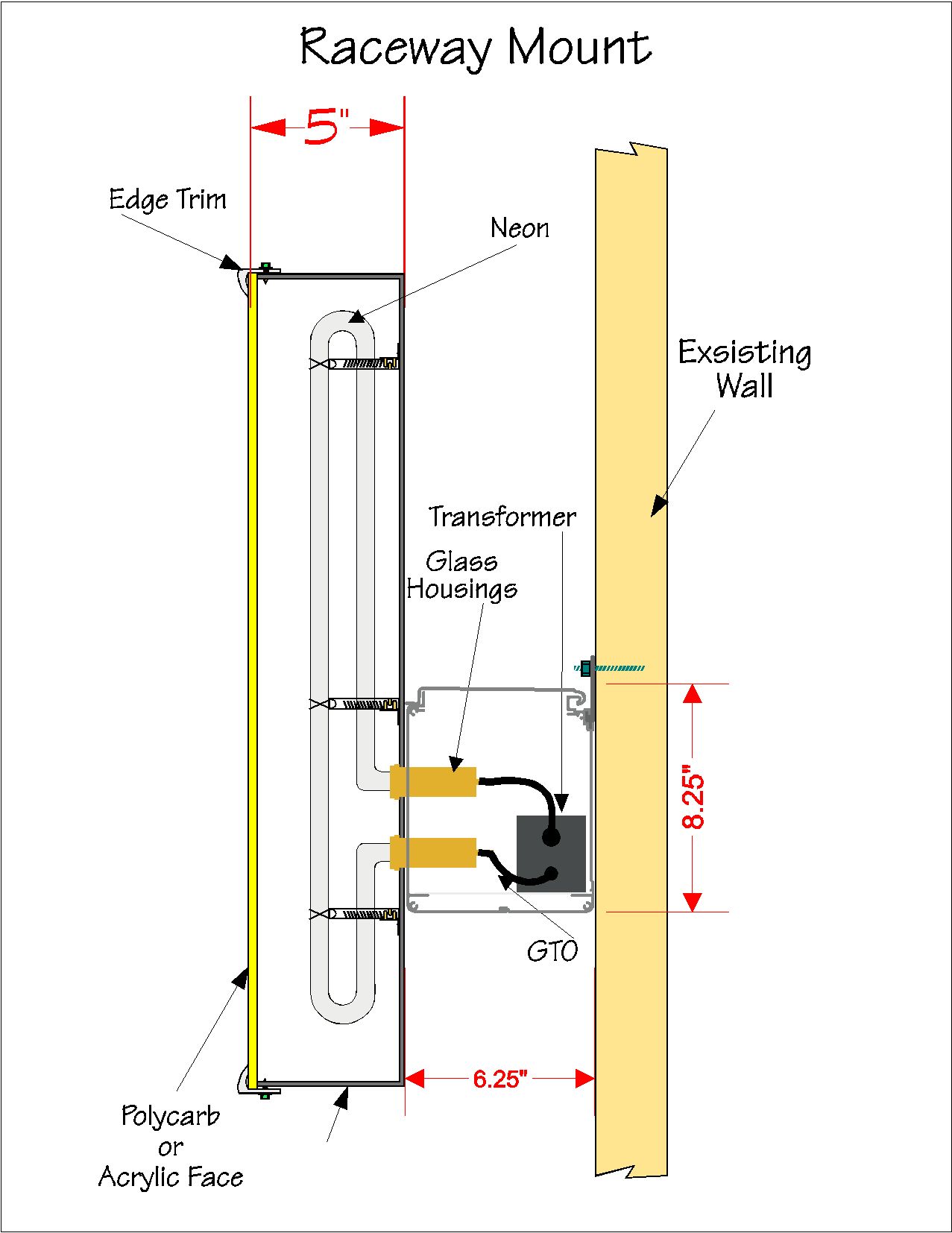

  • Channel Letter Tech Data_Page_3.jpg
    Channel Letter Tech Data_Page_3.jpg
    128.8 KB · Views: 108
Last edited:

Bobby H

Arial Sucks.
It's not difficult to make your own "section detail" drawings of channel letters. Plus, those kinds of things need to be able to be customized easily so the dimensions and specs can change. That's not easy to get from a piece of stock clip-art (especially something in a PDF). Every sign shop has its own "system" on how it makes shop drawings. The style of the section detail drawing has to be incorporated into that seamlessly.
