JASmith
New Member

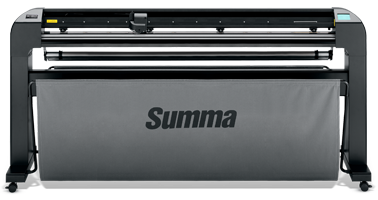

Summa Plotter S160 T Series 64"
Includes: OPS and Wireless Option
Asking $9,000
S Class 2 T Series Specifications
Models S2 160-T 64-inch (163 cm)
Cut Type True Tangential with Drag-Knife Cutting Mode Capability
Cut Widths S2 160-T 62.2-inch (158 cm), Extended Mode: width of the material
Cut Speed All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal
Axial Speed Up to 4 G
Maximum Acceleration Up to 5.5 G diagonal
Repeatability Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long
Tracking 164 ft. (50 m) long
Cut Force 0-600 grams of downforce, in 5 gram steps
Display Language English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
Connectivity USB; Ethernet
Power Requirements AC 100V to 240V ±10% 48-62Hz, 85 VA maximum
Dimensions
S2 160-T 88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm
Shipping Weight S2 160-T 251 lbs (114 kg)
Operating Temperature 59˚ to 95˚F (15˚ to 35˚C)
Standard Accessories WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
Optional Accessories Motorized Take-Up Roller for Summa S2 140 and S2 160
Media Rack for Summa S Class S2 140 and S2 160
Buyer will be responsible for picking up the unit or shipping costs.
Includes: OPS and Wireless Option
Asking $9,000
S Class 2 T Series Specifications
Models S2 160-T 64-inch (163 cm)
Cut Type True Tangential with Drag-Knife Cutting Mode Capability
Cut Widths S2 160-T 62.2-inch (158 cm), Extended Mode: width of the material
Cut Speed All S2 models cut at speeds up to 56 inches (1414 mm) per second diagonal
Axial Speed Up to 4 G
Maximum Acceleration Up to 5.5 G diagonal
Repeatability Within ± 0.004 in. (0.1 mm) on plots up to 40 ft. (12 m) long
Tracking 164 ft. (50 m) long
Cut Force 0-600 grams of downforce, in 5 gram steps
Display Language English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Portuguese
Connectivity USB; Ethernet
Power Requirements AC 100V to 240V ±10% 48-62Hz, 85 VA maximum
Dimensions
S2 160-T 88.6 (W) x 26.8 (D) x 43.7 (H) in. 225 (W) x 68 (D) x 111 (H) cm
Shipping Weight S2 160-T 251 lbs (114 kg)
Operating Temperature 59˚ to 95˚F (15˚ to 35˚C)
Standard Accessories WinPlot or MacSign Cut Software, CutterControl Parameter Software, CD w/ Manuals and Drivers, Quick Start Guide, Power Cable, USB Cable, Media Guide Flanges (set of 2), 1 Spare Fuse, Blade Holder, Standard Nose Piece, 2 Standard 36° Tangential Blades, Thick Material Nose Piece, 1 Thick 60° Blade, Tangential Drag Holder, 1 Standard 36° Drag Blade, Pouncing Pin and Holder, T Pen holder, 1 Ball point pen, Pouncing and Pen Nose Piece, 2 Cut-off Razor Blades, Blade insertion tool, Stand and Basket.
Optional Accessories Motorized Take-Up Roller for Summa S2 140 and S2 160
Media Rack for Summa S Class S2 140 and S2 160
Buyer will be responsible for picking up the unit or shipping costs.
