test draw

[Rollin Royce]

I have a Mimaki Jv 33 160 and when printing a test strip, it places all the colors down correctly but then adds another partial fill of Magenta over the existing Cyan. One technician said it is a mix of ink, so contamination is the problem. But when looking very closely at the printed test stripe it is not mixed, it is to separate inks both placed in the same location. The color Magenta is not in the correct location. New print head, so what is the problem? Could it be electrical? Or software? Any advise is helpful.
Rollin Royce



[jfiscus]

post a photo of the print.



[just]

But when looking very closely ...
Rollin Royce

Scan it with 1200dpi or more and upload here, please



[Rollin Royce]

Hi

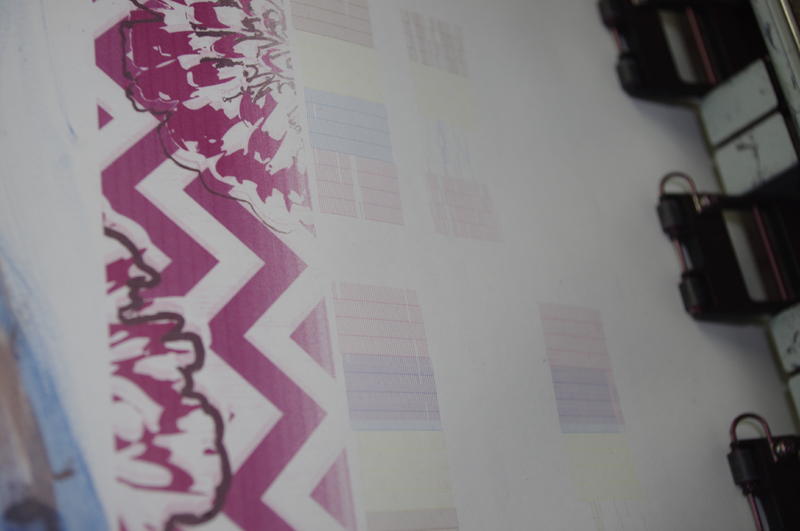

I think I have added the file picture.
Thanks Kendall



[jfiscus]

sounds like electrical.
possibly the ribbon cable or slider board.
All the other test prints are confusing me, can you do another print and have only it in the picture and take a better photo?

Why was the head replaced?



[Rollin Royce]

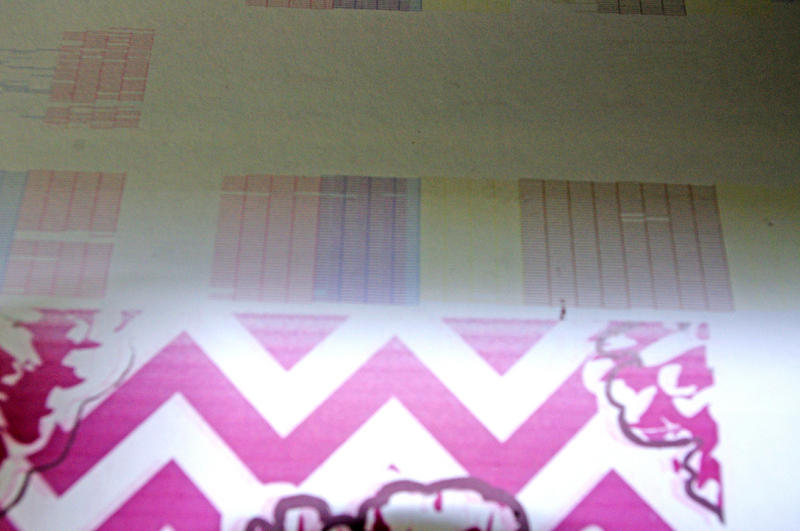

second file picture



[WalkerP]

Contamination? Really...?

Weird one for me, but I do agree it's electrical. It looks like it's just printing that head's pattern skewed off to the side.
Are your prints OK, and the misfiring/misplacement is only in the nozzle check?

Could you possibly have re-installed the ribbon cables when changing the heads in the wrong head/board slots?
