Versacamm sp300 colors not lining up

[SOLJER]

Hi guys currently printing on vinyl material, I'm not sure what the correct term is for this but the colors are not registering or lining up I can see some cyan off to the right and some magenta off to the left, I guess I can get away with larger prints but not acceptable on very small text I was trying to print, I already did a manual head clean with the swabs any suggestions ...:thankyou



[Kaizer Chiefs]

Hello
Could you please post a photo ?



[SOLJER]

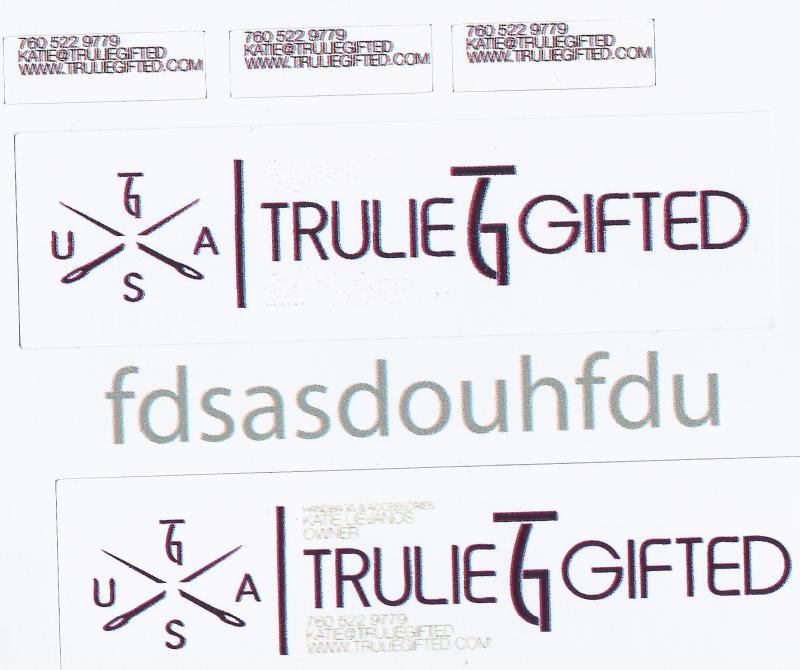

Sure, I will post one soon as I get to my office ...



[SOLJER]

..



[SOLJER]

Sorry Ill try n scan another, this one is doing no good...



[SOLJER]



[SOLJER]

Anyone any suggestions or is this not a common issue ? Thx



[401Graphics]

Only thing i can think of is 1 of the 2 heads is some how not aligned?



[SOLJER]

Only thing i can think of is 1 of the 2 heads is some how not aligned?

Hmmm? So I wonder if it needs to be seen by a tech or can be adjusted...

Thanks



[401Graphics]

Most likely. I'm not saying that is definitely the problem. But i have used a roland 300v, and xc-540 and never seen that happen.



[timkaz227]

try printing this uni-directional and see if you get the same result. if it looks good on uni than you can adjust the bi-directional printing. after that i'm not sure.



[SOLJER]

try printing this uni-directional and see if you get the same result. if it looks good on uni than you can adjust the bi-directional printing. after that i'm not sure.

Thanks I give that a try this morning, ill keep you posted ...



[SOLJER]

try printing this uni-directional and see if you get the same result. if it looks good on uni than you can adjust the bi-directional printing. after that i'm not sure.

Yea just tried and got the same results ...



[SOLJER]

Anyone have any more suggestions,we have a few jobs lined up and really want to see if we will be able to fix my printer so we can produce those jobs thx!



[Kaizer Chiefs]

How is your nozzle check ?
You can print the test in the cleaning menu to get the nozzle check. I did get an almost similar problem in the past and it was caused by the dampers .
Might be same for you.
Please post a picture of the nozzle check state



[Dakotagrafx]

first thing I would try is a head alignment like if you just replaced a head . . . the procedure is described in the service manual



[SOLJER]

Awesome guys will try both those tests hopefully tomorrow if not Monday, ill post a pic of the nozzle check.. Thanks guys!



[SOLJER]

How is your nozzle check ?
You can print the test in the cleaning menu to get the nozzle check. I did get an almost similar problem in the past and it was caused by the dampers .
Might be same for you.
Please post a picture of the nozzle check state

Here are the results of the nozzle Test



[SOLJER]

first thing I would try is a head alignment like if you just replaced a head . . . the procedure is described in the service manual

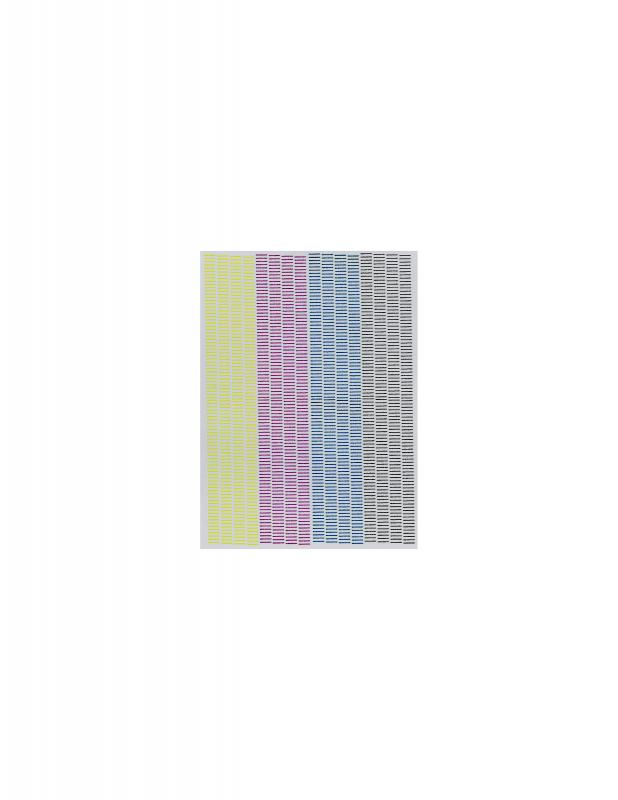

Here are the results from this test..



[SOLJER]

Any suggestions after the tests I ran, Thanks
