White around overlapping vector objects


New Member

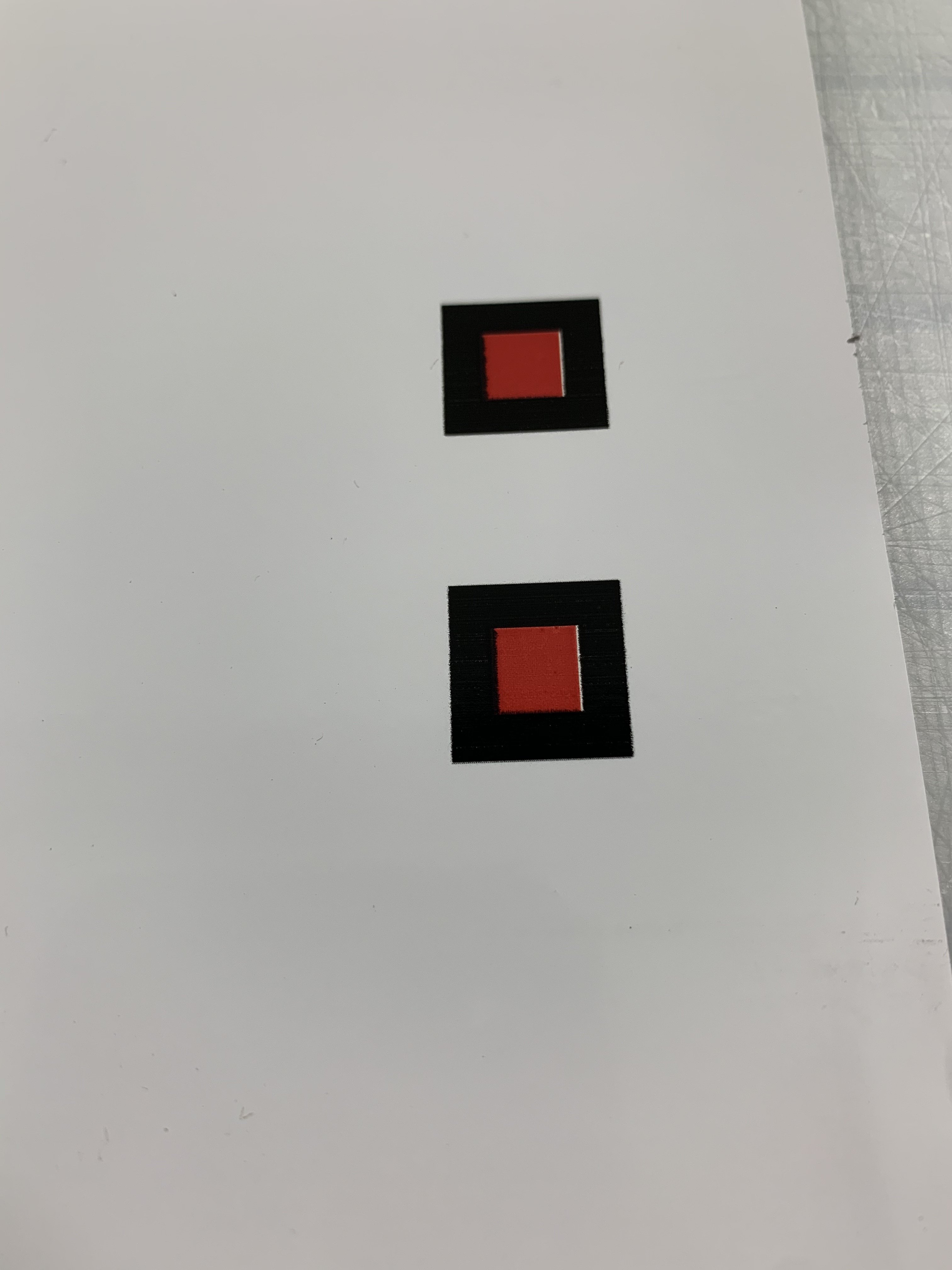

Pretty sure I've had this problem before and it was a setting with color trapping or overprint (or something) but after hours of searching and playing with settings I couldn't find the answer. I drew this simple box to show the issue. There is no stroke. Just a simple red box on top of solid black box. Where the two overlap white shows on one side. Roland SP-300V if it matters.


  • IMG_6031.jpg
    848.1 KB · Views: 98

P Wagner

Your two printheads are not physically aligned properly. K jets from head 1, and red (Y+M)jets from head 2 on the SP printers.
