Additional Pinch Rollers s2 160

[BOTS]

Hello, I have issues with tracking on diecut decals.

I want to add two more pinch rollers to help, seems a little high $350 for 1 roller setup, I want to make sure I am ordering the correct thing.

S2 Extra Middle Pinch Roller - 395-426

This S2 Extra Middle Pinch Roller - 395-426 is suitable for Summa cutting plotters.

us.digiprint-supplies.com

There is also this for $75 that looks like I can just order a $20 wheel and its all I need? https://us.digiprint-supplies.com/en/s2-pinch-cart-dual-pressure-395-306
Or this for $175 https://us.digiprint-supplies.com/en/summa-s-class-kit-s2-pinch-roller-block-middleside-kit-2033

Thank you.



[balstestrat]

I think you might only get the last one because that one has a currently available part number. Others have obsolete part numbers.



[Saturn]

The second one looks like it's an outside roller, which you don't want unless you're actually replacing an outside roller. They have a much higher pressure, and if usable at all, will leave bad marks. Not sure exactly what that third link is...

Is there a reason you're not looking at Summa/Airmark for the roller?

Depending on how much trouble you're having, the extra rollers may not help—Although I'm usually a big fan. Plenty of places don't use them and do just fine.



[jerry369]

S2 Extra Middle Pinch Roller - 395-426

This S2 Extra Middle Pinch Roller - 395-426 is suitable for Summa cutting plotters.

us.digiprint-supplies.com

This is the extra middle pinch roller you can add to your plotter

https://us.digiprint-supplies.com/en/s2-pinch-cart-dual-pressure-395-306

This IS NOT a middle pinch roller, you MUST NOT add it in the middle

https://us.digiprint-supplies.com/en/summa-s-class-kit-s2-pinch-roller-block-middleside-kit-2033

This contains a middle pinch roller (395-307) but it is not an "EXTRA" one, it is more complicated to install it on an already assembled plotter:

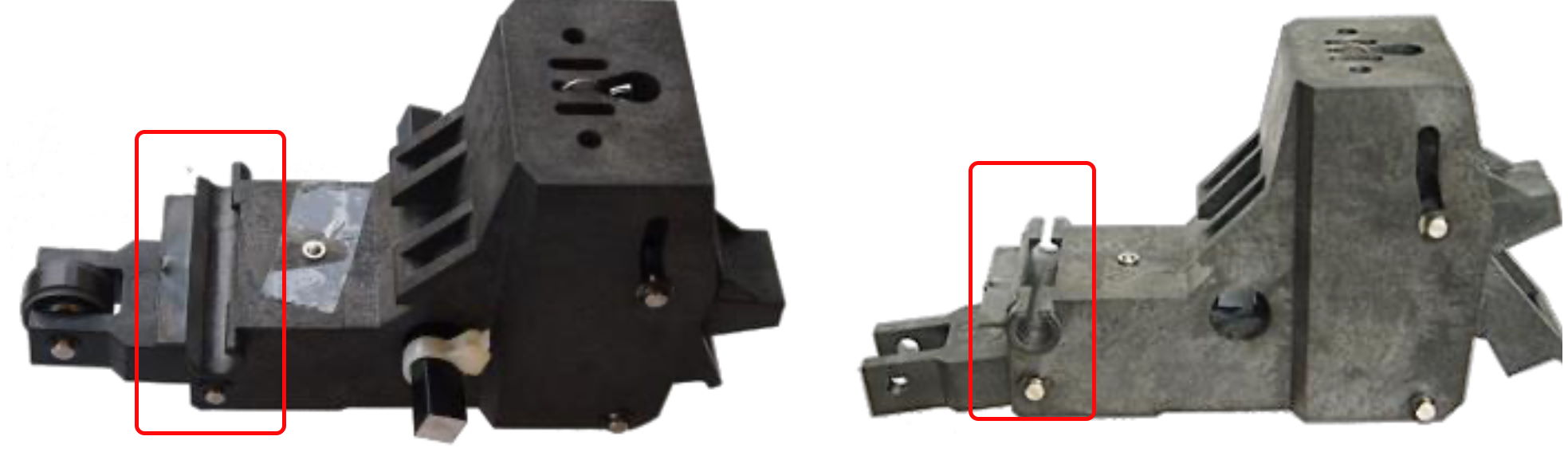

Just to make you understand, this is the difference between the "EXTRA", on the left, and the standard (it is usually factory installed by Summa), on the right:



[BOTS]

Thank you guys!



[BOTS]

Btw, This fixed all my issues.



[SLShop]

I am also considering doing this for my S2, just wondering, with 3 rollers, the vinyl must be at least 12-15cm wide so that all rollers fit. How much is it for 4 rollers, 25 cm? Each pinch roller must be under a grit roller, between two rollers raised up, I don't think that works, right?
