Gerber Edge printing issue

paul luszcz

New Member

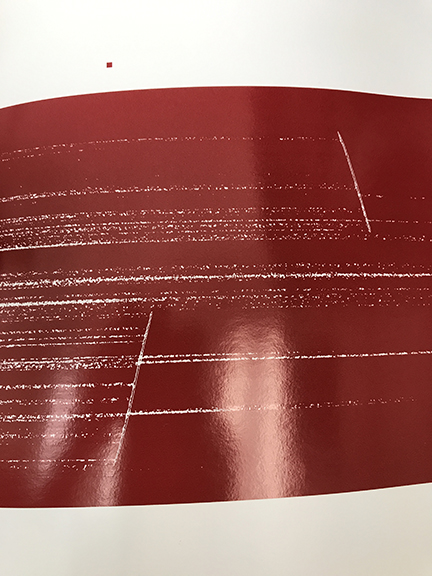

In the middle of a print, our Gerber Edge II started misprinting, leaving streaks all up and down the print area. (see photo attached.)

It was printing 100% then in at a certain point it misprinted about 50%.

It fails with all foils and all vinyls.

I checked all the physical wiring connections and rebooted the computer, but it still persists.

Any ideas on how to resolve?

Paul


Attachments

  • edge fail.jpg
    edge fail.jpg
    215.7 KB · Views: 199

Jburns

New Member
Did you remove the dancer bar, and foil squeegee, and check the head connections? Also remove the left side cover, and re-seat upper and lower board connections?
