Layering

[phatkatdecals]

Hello,

I am new to all of this. I recently purchased a cutter and it came with the software by the name of great cut and I also downloaded the corel draw x5 trail.

My question is how do I cut 3 to 4 different vinyl colors with in the same logo?

I have the file as a vector already.

Thank you for you advice.

http://i59.photobucket.com/albums/g303/kevinsilva08/oakland_athletics.jpg



[wes70]

Break the logo apart. Cut each layer with registration "peep" holes or a border. Align and apply the layers on top of each other (one at a time).

I just confused the hell out of ya... didn't I?

Go to tutorials... I think there is a vinyl layering tutorial there.



[wes70]

Opps! Just checked... no tutorial on layering vinyl.

Check youtube.



[phatkatdecals]

Break the logo apart. Cut each layer with registration "peep" holes or a border. Align and apply the layers on top of each other (one at a time).

I just confused the hell out of ya... didn't I?

Go to tutorials... I think there is a vinyl layering tutorial there.

_____________________

lol, not totally, how do i brake the logo apart? do i use corel draw to do this or can i use great cut?

sorry for all the dumb questions, but i have to learn some how, lol



[Ponto]

...could complete that task with my eyes closed but never did get around to buying my own plotter............maybe your strength exists in sales... if I asked how you were able to secure the job without the skills to complete it, would that be offensive......

JP



[trickedout]

Maybe your program has the option to check or select which color gets cut. So select each color per what roll of vinyl you have loaded in the machine. Also something that simple i wouldnt even bother with registration marks as much as just use clear masking paper and start from bottom to top.. Id layer the top too together and then layer the bottom two but dont press too hard as you will need to remove the mask from the bottom section to be able to layer the top to the bottom.. Also if or when you think you need registration marks a decent sized + will do the trick.



[Ponto]

.....or you could purchase a printer and not worry about the layers at all.....but most importantly......enjoy the journey!!!!!!!!!!!!!!!!!!!!!!!!!

JP



[Jillbeans]

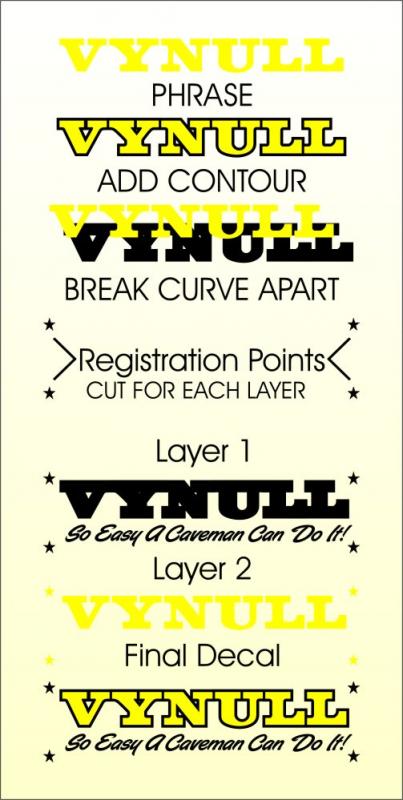

In Corel, this is how I do it.
I won't dazzle you with terms like kerning or welding or converting to curves.
You can use any shape you like for the registration points, I prefer something with corners to help me line them up.
Remove the registration points afterwards, unless you want your layout to look really fancy.
And don't pre-assemble the layers.
I put the first one down dry and use Rapid Tac on the subsequent layers.
Love....Jill
