Need Help Roland XC540 RIBBON CABLES & SCAN MOTOR ERROR HELP REQUIRED

[Adam24]

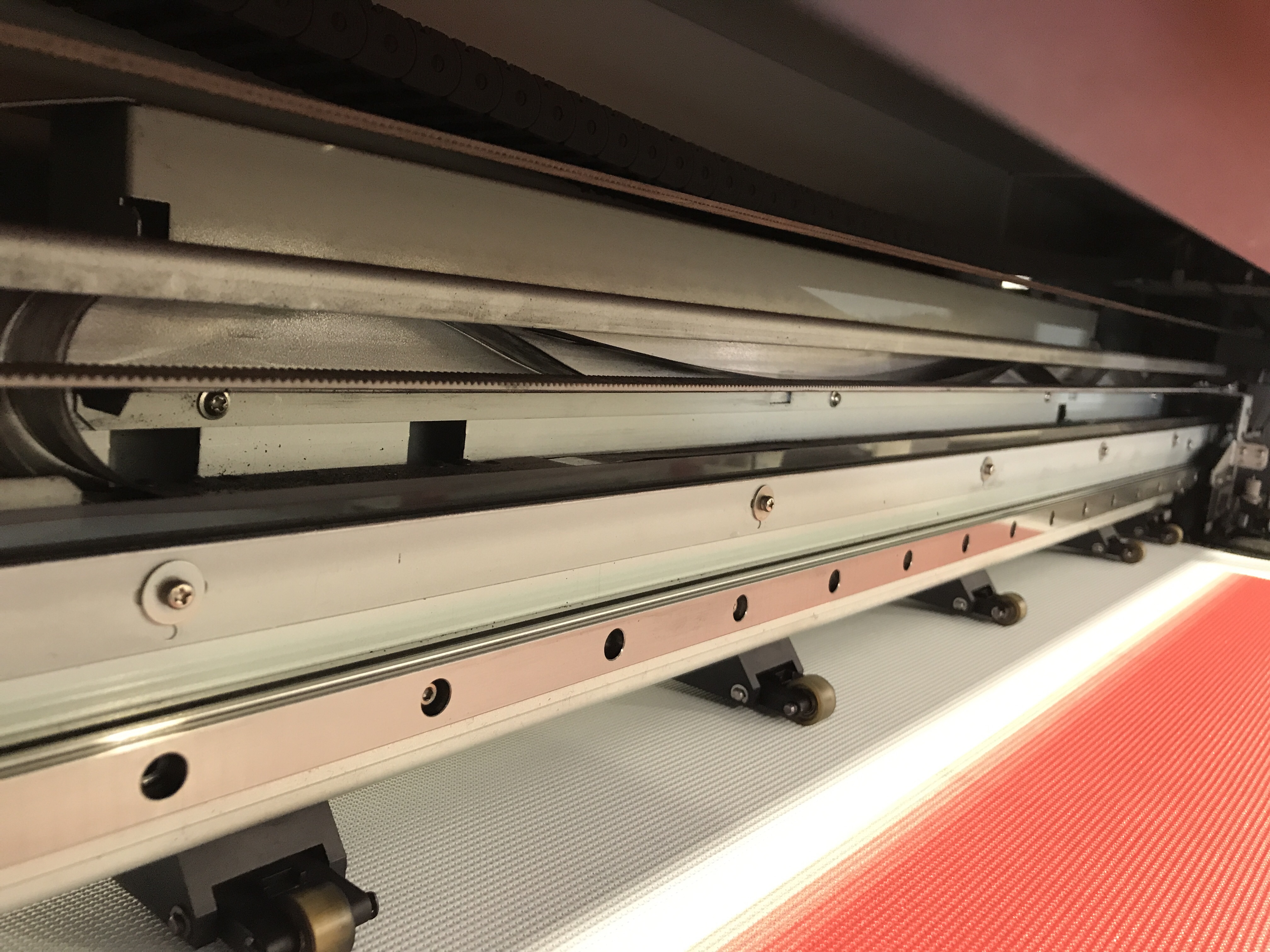

Hi been having an issue with our Roland xc540 get scan motor error code 0090 0080 however ive noticed its due to the ribbons getting caught.. they seem very loose / slack prints will run but then they get caught and it will show up with the error.. I am sure they are not supposed to look like the attached photo please advise on what I can do..



[rjssigns]

This information is based on my SP540V, but your's looks very similar.

There are plastic hold downs for the cables. They are held in by tiny plastic pins/rivets. Looks like they came undone causing your issue. You can order those bits from a Roland dealer.
You will also have to set the correct looping of the cables to prevent binding. There should be a specification in the service manual.



[Adam24]

This information is based on my SP540V, but your's looks very similar.

There are plastic hold downs for the cables. They are held in by tiny plastic pins/rivets. Looks like they came undone causing your issue. You can order those bits from a Roland dealer.
You will also have to set the correct looping of the cables to prevent binding. There should be a specification in the service manual.

Hi thanks for this information!
Just checked all rivets are fine and nothing come away however the tension does look very slack it seems to look like to me they are supposed to be glued down i.e the plastics and they are not..



[rjssigns]

Hi thanks for this information!
Just checked all rivets are fine and nothing come away however the tension does look very slack it seems to look like to me they are supposed to be glued down i.e the plastics and they are not..

Nothing should be glued. Only thing I can think of is something got hooked on the cables and pulled them creating extra slack. I know when I replaced the ribbon cables I manually moved the carriage to check for proper "looping" of the cables. I spent about 15 minutes making sure it was right.

Keep us updated and post the solution once you get it figured out.



[Adam24]

Nothing should be glued. Only thing I can think of is something got hooked on the cables and pulled them creating extra slack. I know when I replaced the ribbon cables I manually moved the carriage to check for proper "looping" of the cables. I spent about 15 minutes making sure it was right.

Keep us updated and post the solution once you get it figured out.

Hi to update I changed the platic ribbon guides and put new riverts in however still same issue makes a kink in the cable and I stop the print to avoid it snapping or breakinng the ribbon etc



[Joe House]

The is always going to be some slack. It's a rolling loop. As RJ pointed out though, it needs to be the correct amount of slack and it takes some time to get it dialed in. If it's been caught on something, you'll need to replace the ribbon cable add well as the plastic guides. Then dial it in properly.

Sent from my SM-G955U using Tapatalk



[Adam24]

The is always going to be some slack. It's a rolling loop. As RJ pointed out though, it needs to be the correct amount of slack and it takes some time to get it dialed in. If it's been caught on something, you'll need to replace the ribbon cable add well as the plastic guides. Then dial it in properly.

Sent from my SM-G955U using Tapatalk

Hi Joe I only replaced the plastics not the ribbon would this be required to be changed also? There are a few kinks in the ribbon from getting caught previously.
Cheers
Adam



[Joe House]

When i do it, i always recommend replacing the cable, the guides and the cut carriage board, but if you replace the board, you'll need to calibrate the crop mark sensor.
The board is probably not necessary, but that way, we've covered all the basesand it has to come out to replace the cables anyway and the board is cheaper than another service visit later.

Good luck,
Joe

Sent from my SM-G955U using Tapatalk
