Hi all

After reading many posts and looking at many videos, I can’t get my head around making a new media and profile in Onyx, so I thought I would start a new thread so that any newbies like myself have a step by step guide to follow. To do this I need everyones help first and I’ll keep editing this first post with the updated info.

So I’ll start with what I know or think I know… I’ll add question in bold as I go along.

**This guide is for an Epson S60600 (dual CMYK) and Onyx 12.2, i1Pro2 and I’m creating it for a gloss adhesive vinyl**

* Create a new Workgroup if not already done so
* Open Onyx Production Manager
* Click Media Manager
* Click New > Media Group
* Give it a name i.e.
* Vinyl
* Banner
* Backlit
* Static Film
* Canvas
* Photo
* Poster
* Click OK
• A new ‘Media Group’ has now been created

**What do you call your workgroups?**

* Open Onyx Production Manager
* Click Media Manager
* Click New > Media Profile
* Create a new Media
* Select Onyx Workflow
* Select the chosen media group i.e. Vinyl
* Give it a name i.e. 3M IJ180
* Ink Configuration: CMYK
* Process Colours: CMYK
* Media Type: Adhesive Vinyl
* Configure Spot Colors: Leave as it is
* Page Sizes: Leave as it is
* Print label Color: K
* Name the print mode: Standard - 720dpi, Stochastic, 4 Pass (I name this based on my selections and then I have Fast, Standard, High Quality, Best Outcome)
* Change print mode resolution: 720dpi
* Dot Pattern: Stochastic

**Is this the best dot pattern?**

* Media Options
* Print Mode: 4 Pass
* Media Setting Number: Use Panel Setting

**What is the best option here, Use panel setting or chose Media number 1, 2, 3, 4 etc?**

* Print Direction: Bi
* Print Vertical Cut Line: Off
* Margin, Feed & Dry Time: all 0
* Scale the print Width and Height: Ignore

**I have no clue what to do for ‘Scale print width and height’? So I just ignore it**

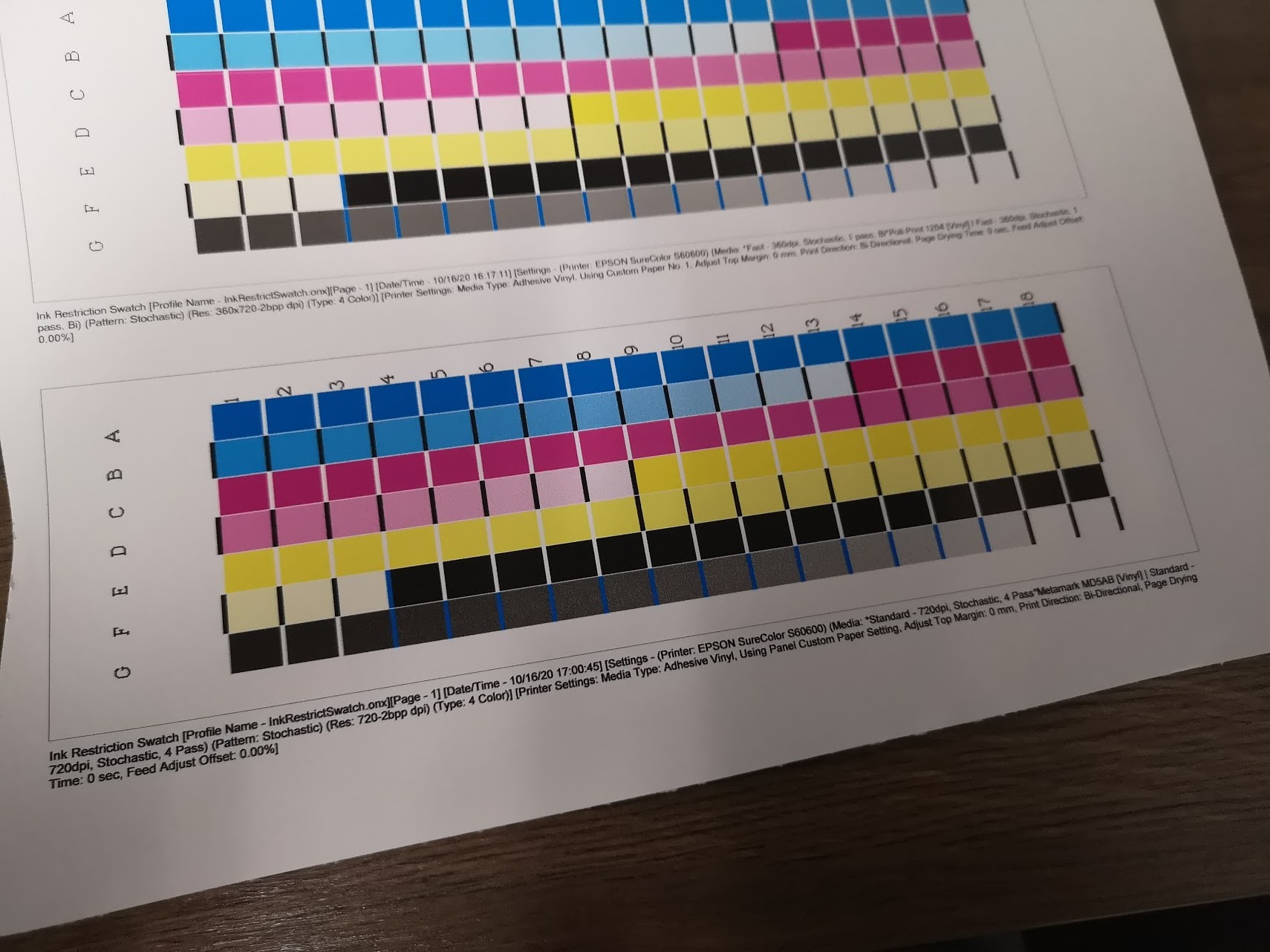

* Print Ink Restrictions Swatch: Click Print swatch
* Leave every option as it is and click print

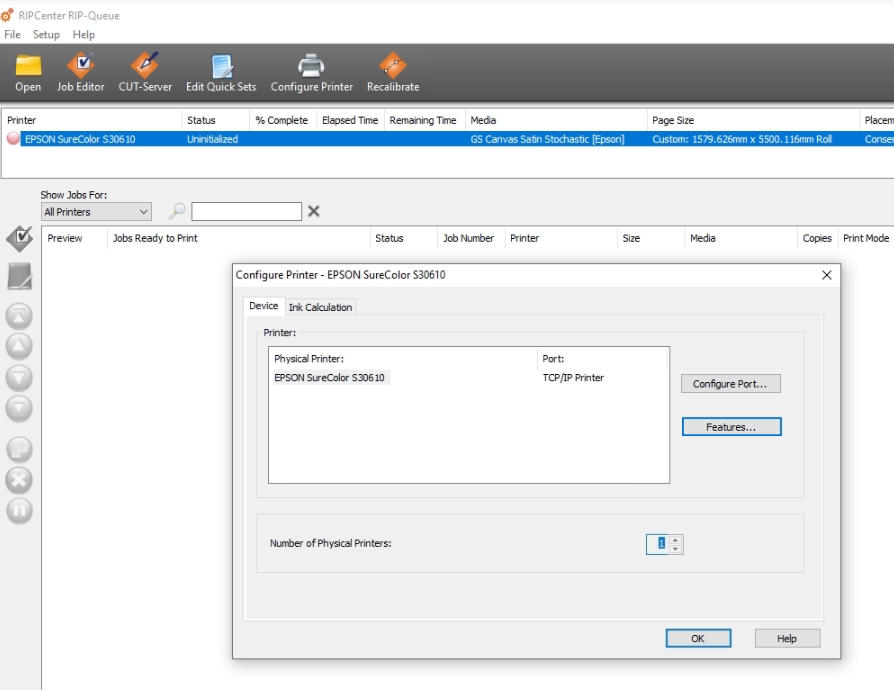

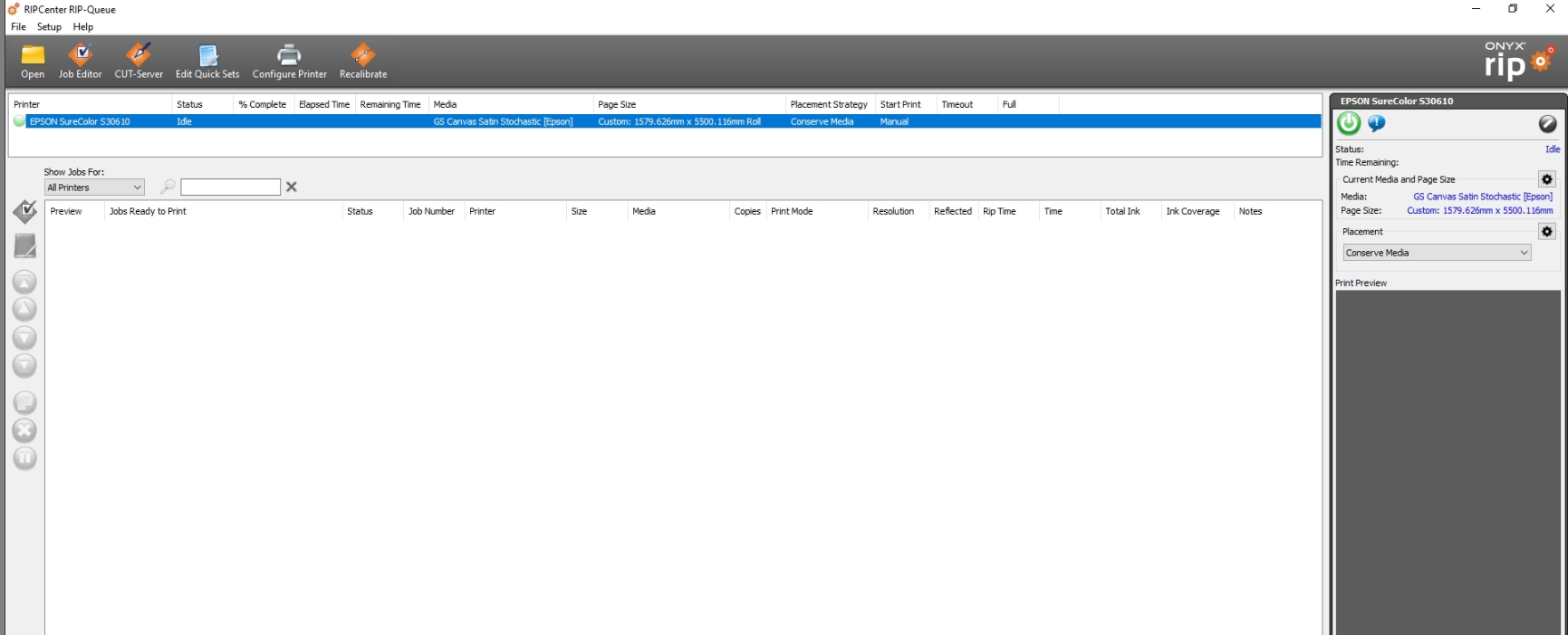

**I’m new to Onyx, it says the media is my new media and it has a media mismatch. oN the right side pane, it says current media and page size which is different. What do I do here? Do I click the settings and change the media to my new media and manually update the page size? That will work but I wanted to be sure. **

• Click Print

**When printing this chart to save time, could I not just print 1 high quality uni directional chart and limit the ink based off that?, I’m guessing no but thought I’d ask**

• Wait for the print to dry and go back to Media Manager
• Make sure your i1Pro2 is plugged in and the drivers installed (Install i1Profiler before not done already)
• Click Read swatch
• Put the i1pro2 On the white calibration tool and click the measurement button on the i1pro2
• Now follow the on screen instructions carefully, it changes from left to right to right to left.
• I’ve set my i1pro2 to read the patches twice when I set it up
• Once done, click ok
• Now click the arrow next to ‘As necessary, make adjustments to the ink restrictions’
• Click next to go the Calibration tab
• Click Print Swatch
• Leave everything as it is and click print
• The media and size should still be correct from when you printed the last chart so click print.
• Once dry, go back to Media Manager
• Click Read swatch
• Put the i1pro2 On the white calibration tool and click the measurement button on the i1pro2
• Now follow the on screen instructions carefully, it changes from left to right to right to left.
• I’ve set my i1pro2 to read the patches twice when I set it up
• Once done, click ok
• Click advanced
• Click Build
• Go to the ink limits tab
• Leave as basic and click Print swatch
• Leave everything as it is and click Print
• Media and size should still be setup so click print

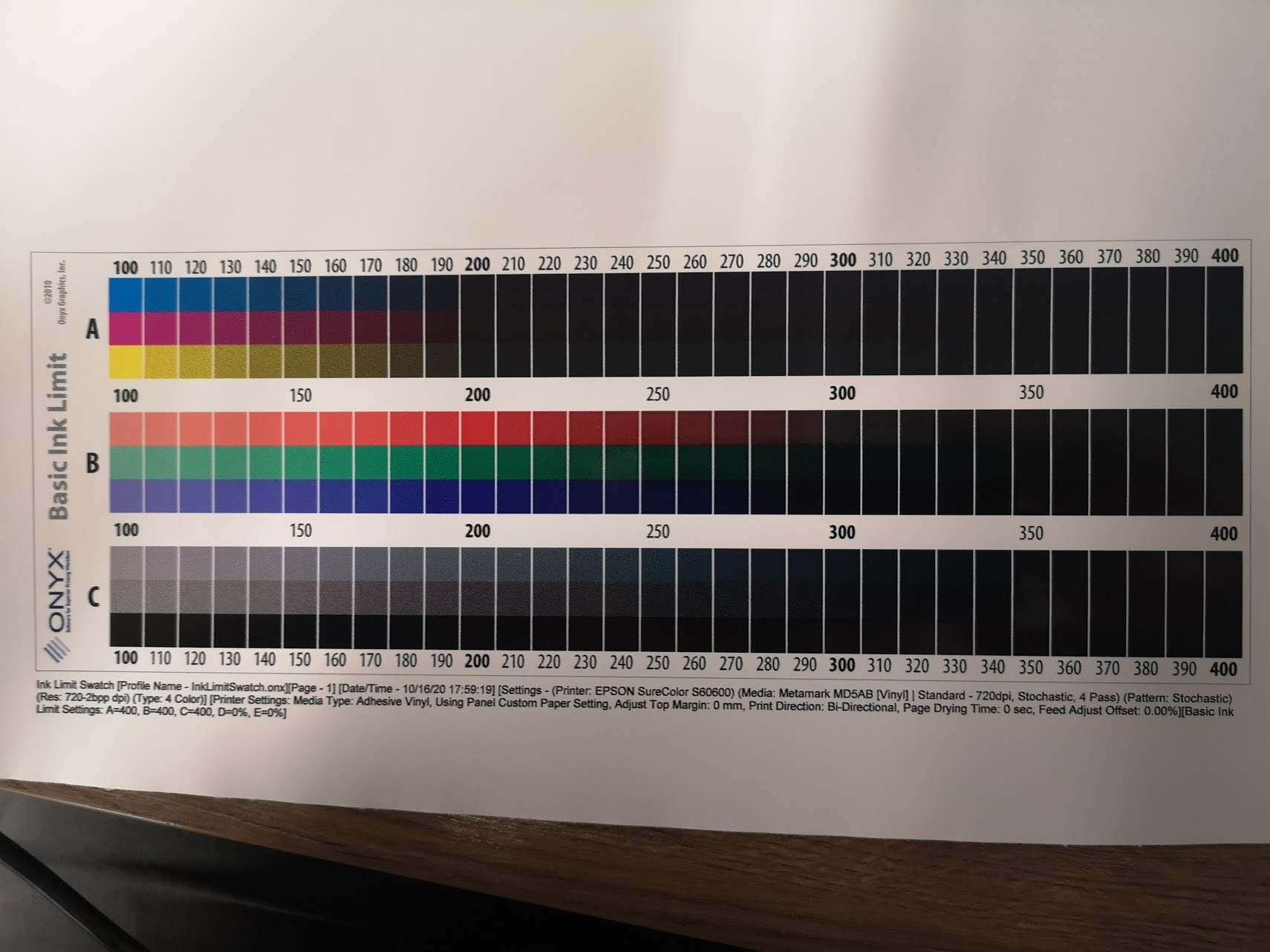

• Look at the chart and determine the Ink limit

**Looking at the image, 200%?**

This is as far as I have got today and I will continue tomorrow based on feedback.


Attachments

  • IMG_20201016_171023.jpg
    275.1 KB · Views: 91
  • IMG_20201016_180301.jpg
    234.9 KB · Views: 75
If you choose Epson workflow, you can cut out all of the ink linearization and limit steps.
99% of our media is profiled using that workflow as it's much easier than the Onyx version.
We only use the Onyx workflow if we need to do something very specific (eg. deleting Red and Orange ink from the profile).

Great write up though.


Pauly

Colour Guru
Nice write up. Although this would only benefit people with Epson printers as others are different.
I’ve used the Epson workflow too. It’s so much easier and same results.


Mata

New Member
Thank you. I appreciate it's only for the Epson printers but hopefully it will give some insight into how it's done.

I've continued with the profiling and completed my first profile yesterday so I will add this to the write up. I also want to try a few other methods such as the epson workflow and using Epson Precision dot instead of CMYK and I understand this eliminates the need for the ink limit section which I find the hardest part.

Someone also mentioned about using i1Profiler to make the profile part instead of Onyx which is also another idea.

Does anyone know who to check the gamut of a profile? I've been using Gamutvision but it only seems to like V2 profiles and not V4


Pauly

Colour Guru
Thank you. I appreciate it's only for the Epson printers but hopefully it will give some insight into how it's done.

I've continued with the profiling and completed my first profile yesterday so I will add this to the write up. I also want to try a few other methods such as the epson workflow and using Epson Precision dot instead of CMYK and I understand this eliminates the need for the ink limit section which I find the hardest part.

Someone also mentioned about using i1Profiler to make the profile part instead of Onyx which is also another idea.

Does anyone know who to check the gamut of a profile? I've been using Gamutvision but it only seems to like V2 profiles and not V4

Using i1 profiler to create icc profiles instead of onyx would have been me.

colorthink pro3 is what i use to compare profile gamut. dont know of any free software for it.


Mata

New Member
Pauly Thank you.

Wow that's expensive just to check a profile. Gamutvision is free but and I does work with Version 4 profiles but not the one from Onyx which seems strange so I can't see how big the gamut is.

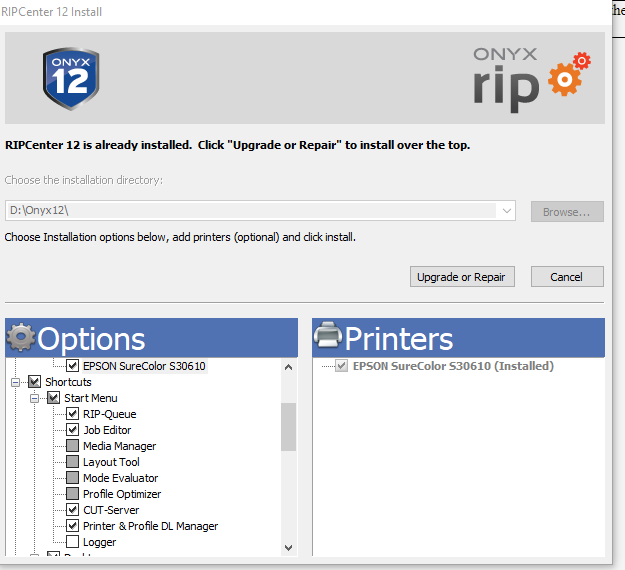

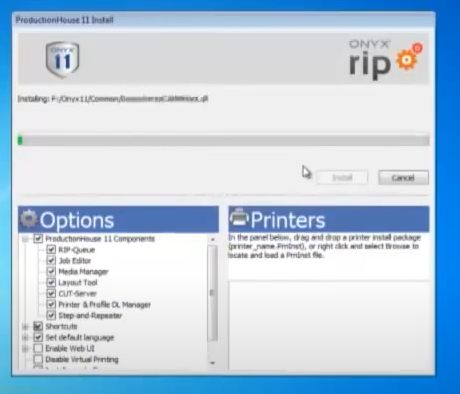

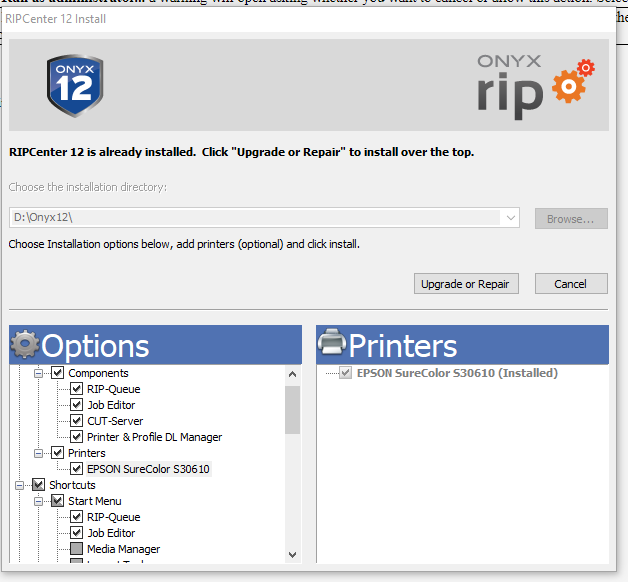

Do you know anything about the differences between Production House 12.2 vs Rip-Centre 19 (Free with the printer)? You don't have the layout tool or the swatch books tabs which I have not used yet but is it worth using that to print over the Production House 12.2?


Mata

New Member
Pauly Could I also ask if you could post one of your profiles up for a gloss vinyl media so I can compare mine to yours? Are you using an Epson S60600 or S80600? I know the S80600 will have a wider gamut

I also profile using i1Profiler so it could also have been me.

You can compare gamut plots in i1Profiler during the last step of the process in full 3D. I use it to compare my i1 plots to Onyx generated profiles.


Mata

New Member
Does anyone have an S60600 profile they have created personally that they wouldn't mind sharing.

I'd just like to compare against something that I have done on a gloss vinyl.

I do have i1Profiler but never used it to compare profiles.


Pauly

Colour Guru
Pauly Thank you.

Wow that's expensive just to check a profile. Gamutvision is free but and I does work with Version 4 profiles but not the one from Onyx which seems strange so I can't see how big the gamut is.

Do you know anything about the differences between Production House 12.2 vs Rip-Centre 19 (Free with the printer)? You don't have the layout tool or the swatch books tabs which I have not used yet but is it worth using that to print over the Production House 12.2?

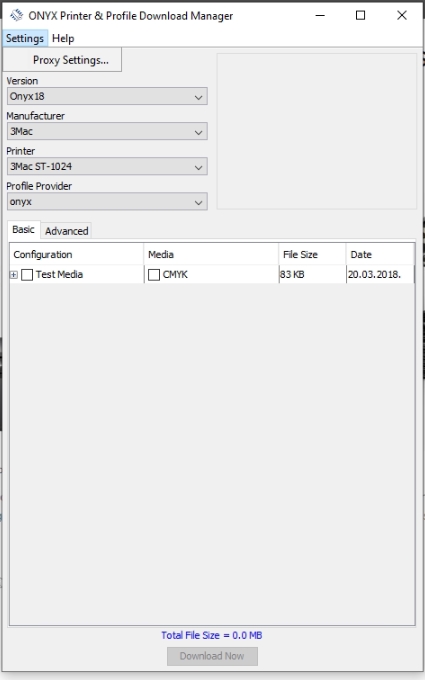

Oh in media manager you can compare profiles. media analyser i think? i'll have to check when im at work.

I dont use an Epson s60600 or any variant unfortunately for you to compare.
Just print off some test charts (onyx comes with some) to check how your colours are. or use a Granger Chart. it will show how smooth your profile is and what colours you do and dont hit.
