Looking for arrhythmia line

Tintman928

Member
Hi everyone,
I have an ambulance to do, and I am looking for the arrhythmia line, I have searched everywhere, I found the star of life, and other needed files, but am at a loss on this one.
Any help would be GREATLY appreciated, if someone has one, I would be willing to purchase it from you. :thumb:

Thanks Harold


wildside

Very Active Member
seriously?.... google it for reference material, grab the contour tool in your favorite program and draw a line.........


MikePro

Major Contributor
seriously?.... google it for reference material, grab the contour tool in your favorite program and draw a line.........
+1
don't be overly-anal about "perfection". An arrhythmia, in itself, is a deviation from the norm. you have nearly-complete freedom here to screw up and call it "art"


MikePro

Major Contributor

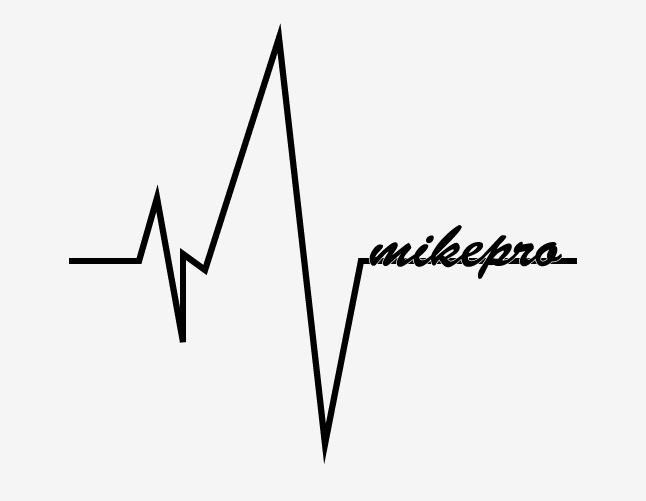

how bout this?
attachment.php


Attachments

  • Picture 64.png
    Picture 64.png
    19.2 KB · Views: 61

sar bossier

Very Active Member

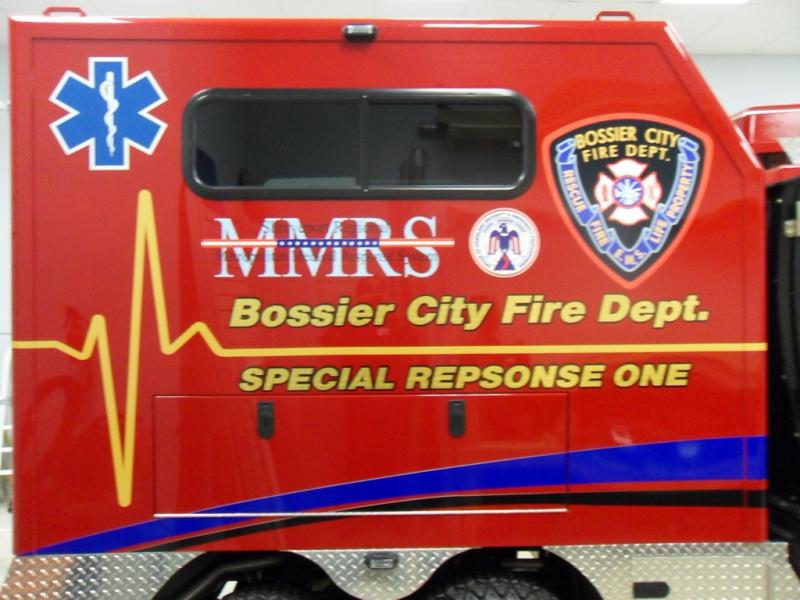

We drew ours in Flexi - Didn't take very long.


Attachments

  • AFTER Pics - Bossier Fire Dept (3).jpg
    AFTER Pics - Bossier Fire Dept (3).jpg
    64.5 KB · Views: 22

Vinylman

Very Active Member
It took me longer to read your original post than it took to CREATE FROM SCRATCH exactly what you asked for.

Are you REALLY in the sign business?


Locals Find!

Very Active Member
Come pay for my next doctors visit and you can have a copy of my readouts from my ICD I get 7 or 8 arrhythmia events a month.


CanuckSigns

Very Active Member
Use your bezier tool to draw a straight line, add a few nodes and drag them to create the heartbeat peaks and valleys. You don't have to be exact, it's meant to be irregular after all.


skyhigh

Major Contributor

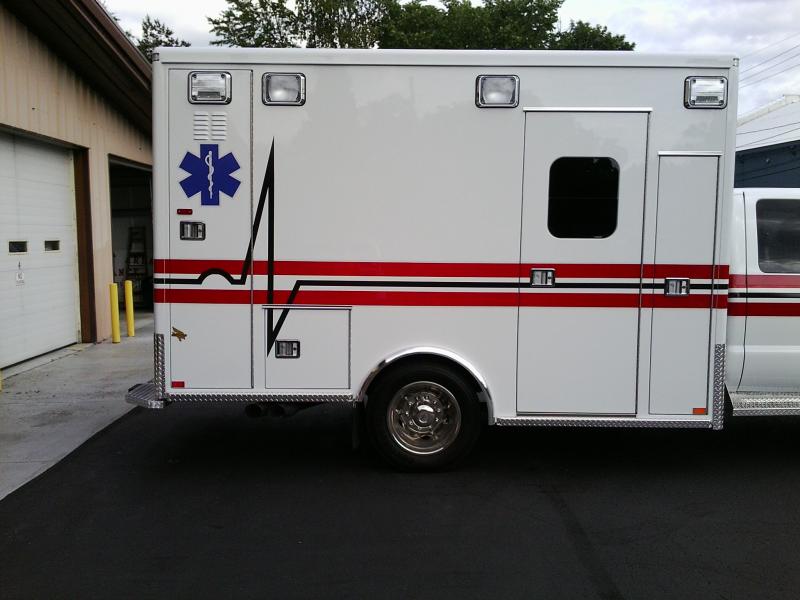

coincidentally, we did one yesterday.
Here's a pic after we finished the stripes (before we added the name of the station).

If your new to node editing, I'd be happy to send you this one I created.


Attachments

  • 0616121719.jpg
    55.4 KB · Views: 52

Vinylman

Very Active Member
coincidentally, we did one yesterday.
Here's a pic after we finished the stripes (before we added the name of the station).

If your new to node editing, I'd be happy to send you this one I created.


H3LL skyhigh, he can't use THAT!

it doesn't have (2) round bumpy thingies. Therefore it must not be genuine!!:Oops:


jfiscus

Map Wraster
EVERY one that I use is unique to the customer/department, you're going to have to get a photo of the customer's existing arrhythmia pattern & trace it. Just cut 20 out for new ambulances today...

Also - the pattern ONLY goes one way; no matter what side of the truck it's on & MikePro & Skyhigh's are both incorrect.


jfiscus

Map Wraster
Here is a proof of a recent ambulance; it has an arrhythmia in it if you can pull it out of there. But, I would assume your dept has a different one.


Attachments

  • Union Amb Proof.pdf
    1.8 MB · Views: 32
