Anybody with DIY media basket or a cheap one for sale?

[doktorek]

I have a small 24" cutter and I was wondering if I can add a media basket. Anybody made one themselves? Maybe links to some cheap ones out there? BTW, what fabric best to use? Do I need a fabric, maybe just simple backing paper.
I jsut dont want my vinyl to get dirty on some of the longer stuff I cut. Just looking for some ideas

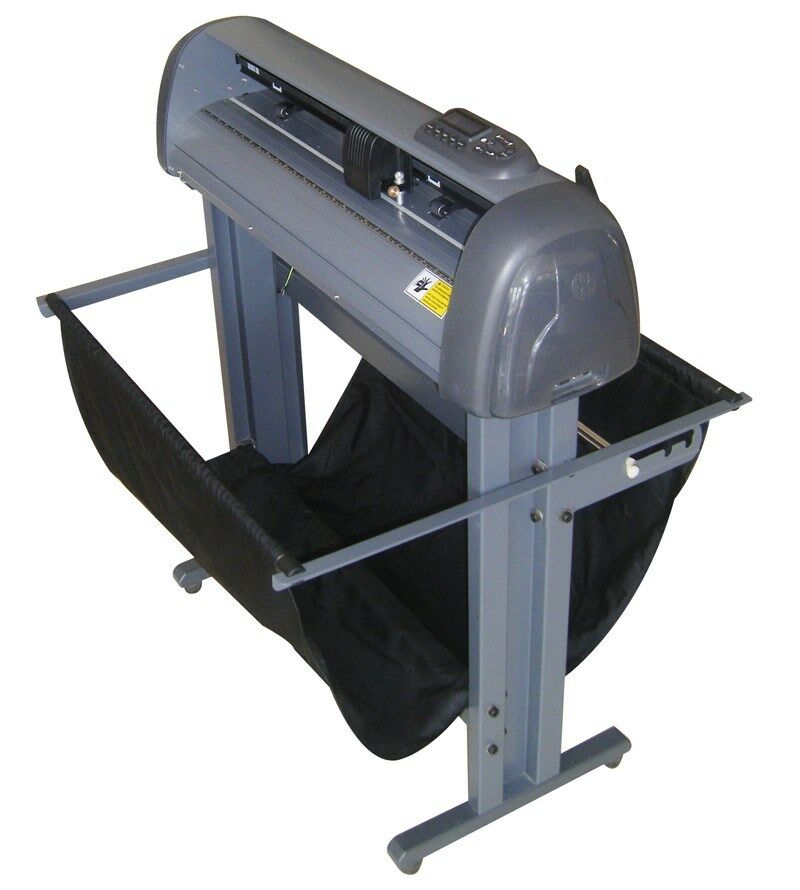

I figure I can make something like you see below with some brackets from HD.



[CanuckSigns]

Get some electrical conduit and an old banner.



[rjssigns]

Get some electrical conduit and an old banner.

BOOM!!! /



[tulsagraphics]

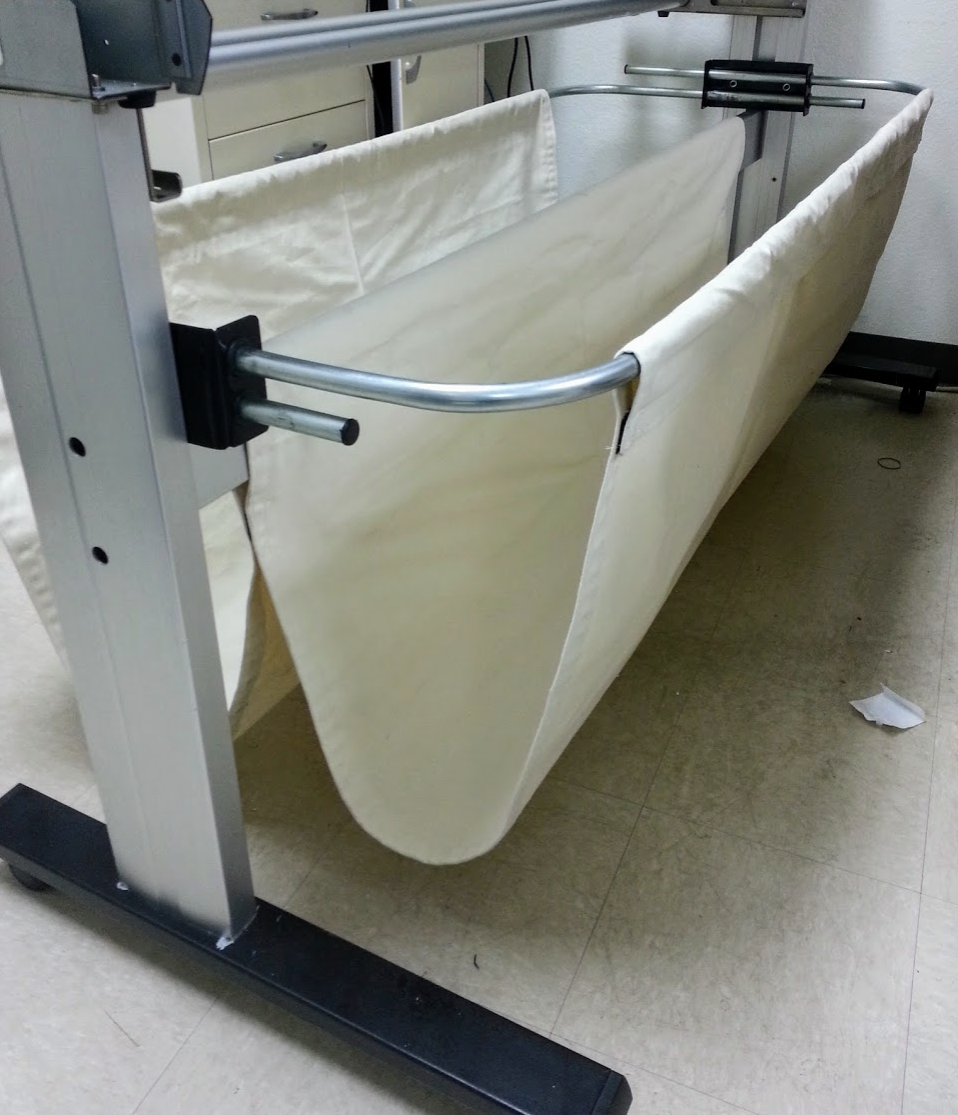

This is what I made for my Graphtec plotter about 9 years ago:
- metal conduit (shaped with pipe bender), rubber grommets / end caps from Lowe's

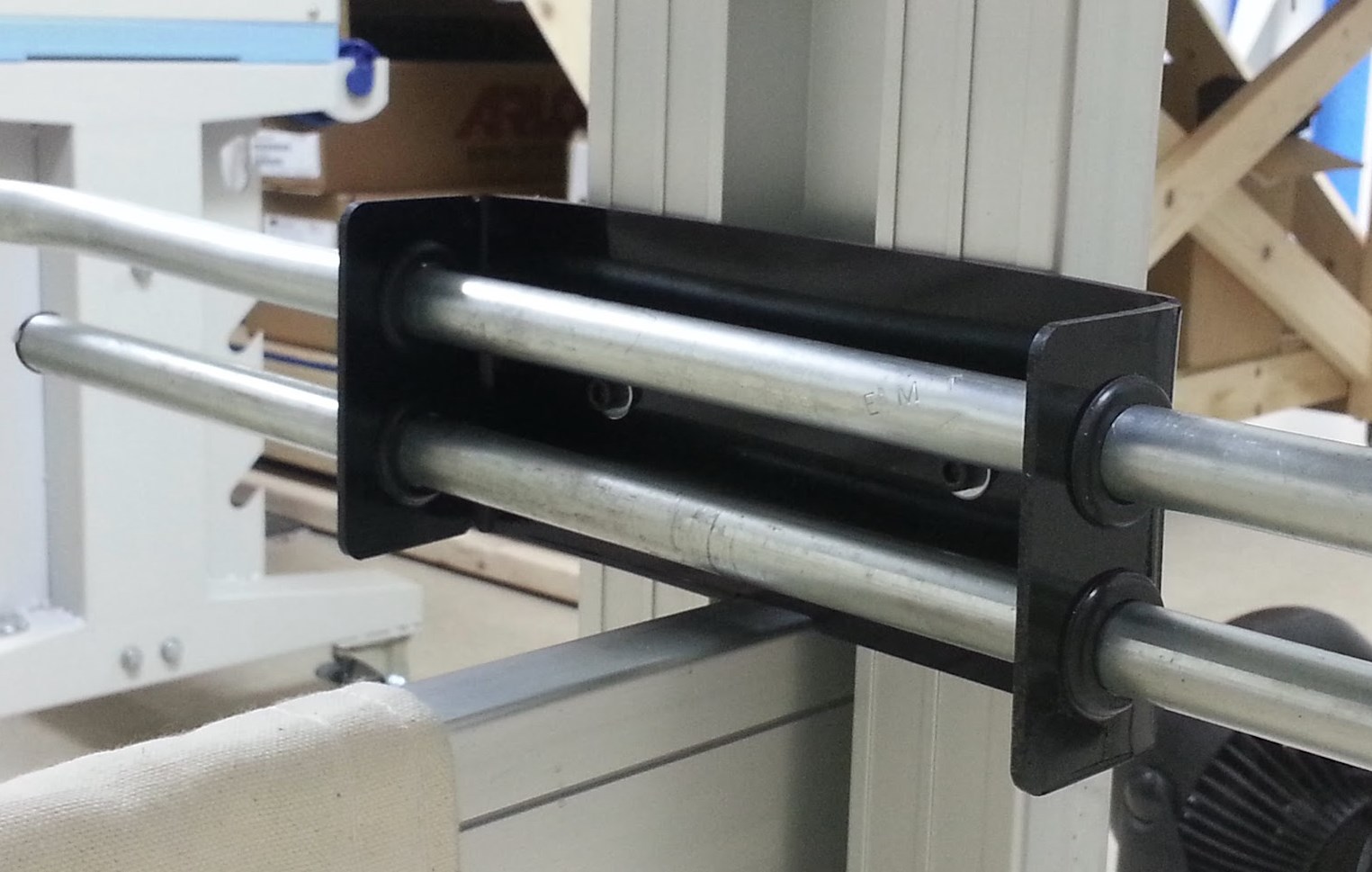

- custom plastic bracket (black engraved acrylic + heat gun for bending)
- a few yards of fabric from Hobby Lobby, stitched on my sewing machine (w/ velcro)



[doktorek]

This is what I made for my Graphtec plotter about 9 years ago:
- metal conduit (shaped with pipe bender), rubber grommets / end caps from Lowe's
- custom plastic bracket (black engraved acrylic + heat gun for bending)
- a few yards of fabric from Hobby Lobby, stitched on my sewing machine (w/ velcro)

Wow, not bad.
Im thinking maybe drawer slides and connected with some sort of pipe or stick



[bob]

Some PVC pipe, fittings, glue, banner material or other fabric, and some snaps. It shouldn't take an hour or two to design and create just what you need.



[White Haus]

This is what I made for my Graphtec plotter about 9 years ago:
- metal conduit (shaped with pipe bender), rubber grommets / end caps from Lowe's
- custom plastic bracket (black engraved acrylic + heat gun for bending)
- a few yards of fabric from Hobby Lobby, stitched on my sewing machine (w/ velcro)

Thanks for this, I need to build a couple for the shop! I tried using pvc pipes in the past and they just didn't have the strength. I like your design much better, looks solid.



[tulsagraphics]

Thanks for this, I need to build a couple for the shop! I tried using pvc pipes in the past and they just didn't have the strength. I like your design much better, looks solid.

Thanks! I modeled it from Graphtec's older designs. Quick tip: If you use the same materials I did... maybe do away with the rubber grommets so the rods will slide in/out more easily. Mine were a little snug so I had to keep them greased.



[White Haus]

Thanks! I modeled it from Graphtec's older designs. Quick tip: If you use the same materials I did... maybe do away with the rubber grommets so the rods will slide in/out more easily. Mine were a little snug so I had to keep them greased.

Good to know, thanks for the tip!



[Geneva Olson]

Get some electrical conduit and an old banner.

where have you been all my sign making life? I'm doing this!



[johnnysigns]

We used a banner,wooden dowels and we taped in a piece of 6mm PVC that was Vshaped with notches to capture the dowels.



[netsol]

Get some electrical conduit and an old banner.

You're a genius! i was lazy, didn't bother to find the conduit bender. i had 3 lengths of 10' on the shelf
i just had to dig up 8 elbows, and took 5' of canvas (the kind for you sail boat, not the kind we print on

i love it. not every job needs the automatic takeup reel
