Illy cs
- Thread starter skyhigh
- Start date
Shovelhead
New Member
...
object/path/outline stroke
object/path/outline stroke
gROUND cHUCK
New Member
I find it better to use the "offset stroke" function because "outline stroke" just adds a non-vector stroke (and to make it a vector just makes a mess of the job) while offset path adds a vector path.
Shovelhead
New Member
yes.....
that too.
that too.
skyhigh
New Member
OK then... I did try the "offset path" feature, but unlike Flexi, where you can do a "Contour" of a multi layered graphic, Illy will give you an "offset path" of every element in that graphic.

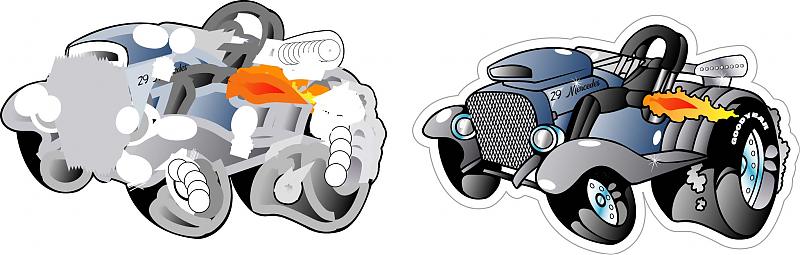

The right picture is what I wanted... so mission accomplished. What I failed to realize, on my previous attempts (the left pic), was that I needed to "Ungroup" then apply an offset path to the outer-most portion of the graphic......is that correct, or is there more than one way to do this?
I THANK YOU !!!!!!
The right picture is what I wanted... so mission accomplished. What I failed to realize, on my previous attempts (the left pic), was that I needed to "Ungroup" then apply an offset path to the outer-most portion of the graphic......is that correct, or is there more than one way to do this?
I THANK YOU !!!!!!
Attachments
iSign
New Member
sometimes there are multiple componants that fit inside one cutline, so I copy the whole design to the clipboard, then select all & change to black fill, black stroke, then object>path>outline stroke, then in the pathfinder dialog box, choose Unite to weld it all together. This creates a perimeter contour like you would have on your examples outer-most contour if the multiple elements overlap each othr. If they dont, at this point, I would convert the fill to none, & the stroke to black... then I would increase the stroke width, until the strokes of my non-overlapping contours are overlapping. I would make sure my stroke options are set to rounded corners, then I would repeate the object>path>outline stroke command and then convert the fill to none, & the stroke to black again. Then I "paste-in-front" the original artwork which should center it right where it was. If the cut line got too far from the art, I'd repeat the outline stroke process to create an inner contour thats the right distance from my art.
GAC05
Quit buggin' me
Doug that sounds like too much work.
Draw does it pretty much like Flexi
Select a bunch of (ungrouped) objects and click a single button in the boolean toolbar(options load as soon as you select more than one object).
It makes a single object around all of the selected objects (no inner islands).
The new object is now the current selection and you can add an offset (contour) to it with one more click.
wayne k
guam usa
Draw does it pretty much like Flexi
Select a bunch of (ungrouped) objects and click a single button in the boolean toolbar(options load as soon as you select more than one object).
It makes a single object around all of the selected objects (no inner islands).
The new object is now the current selection and you can add an offset (contour) to it with one more click.
wayne k
guam usa
iSign
New Member
it's more work to type it then do it...
That one task has always been the absolute weakest link in my favorite software for years now, but it still gets done in well under a minute.
Besides, he didn't ask how to do it in corel. Sporadic, less click, methods always make good ammo in all the age old software debates, but if Illy didn't have it's advantages too, it wouldn't have the market share it has.
That one task has always been the absolute weakest link in my favorite software for years now, but it still gets done in well under a minute.
Besides, he didn't ask how to do it in corel. Sporadic, less click, methods always make good ammo in all the age old software debates, but if Illy didn't have it's advantages too, it wouldn't have the market share it has.
GAC05
Quit buggin' me
Fair point, that is why I addressed my reply to you.
As far as market share, Windows blows Mac's OS out of the water in market share 6 ways to Sunday, but I as a PC user can't honestly say that it is any better than OSX.
take care
wayne k
guam usa
iSign
New Member
interesting comparison.
I don't pretend to know any stats on Corel's share of the market, and only meant to imply that creating an "offset cutline" represents such an infinitesimal fraction of the value of vector illustration software, so as to render the several seconds one might save as rather irrelevant in the grand scheme, unless it were indicative of overall superiority. I don't consider Corel inferior, or superior, in general.
I don't pretend to know any stats on Corel's share of the market, and only meant to imply that creating an "offset cutline" represents such an infinitesimal fraction of the value of vector illustration software, so as to render the several seconds one might save as rather irrelevant in the grand scheme, unless it were indicative of overall superiority. I don't consider Corel inferior, or superior, in general.
