Mutoh Rockhopper 38 head adjustment

A

ahmed

New Member

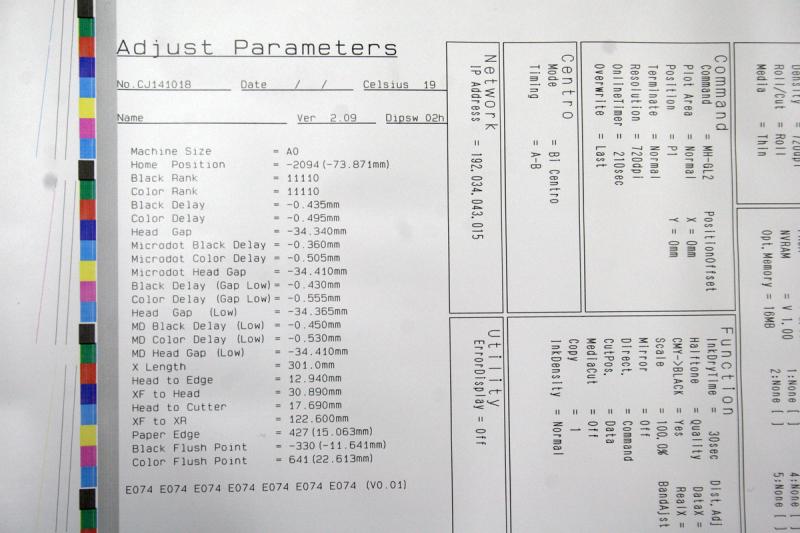

After I managed to fix the leak in the black ink line, & when I did a nozzle check, the black colour was not in one line with the other colours (picture attached), any idea of how to solve this problem? I would greatly appreciate your help.

I think the Rockhopper 38 in the Uk is the same machine as Falcon JR 4 colour outdoor in the USA & Canada


Attachments

  • Picture 349.jpg
    Picture 349.jpg
    59.4 KB · Views: 254
Last edited:
R

randya

New Member
It is the same as the Jr.

You need to do timing adjustments in maintance mode.
I forget exactly what it is called.

You will need a maintenance manual or a tech to walk you through it.

S

Sign-Man Signs

Guest
Email me and I'll send you the service manual. You might want to contact MacDaddy here on the forum. He's the man.

Jackpine

Jackpine

New Member
You can get it close by adjusting the print head in the holder. It sets with 2 screws I believe. This is to adjust the tilt and forward and back. It takes time. Adjust and nozzle check.....until it is close. Or contact MacDaddy as Sign-Man said.

A

ahmed

New Member
Hi Sign Man, I emailed you my email address which is ahmed@sun-signs.co.uk, thanks for your help.

Jackpine, I found only one screw fixing the print head to the holder which cannot be moved as the screw washer sits in its housing.

I've contacted Macdaddy asking for his help, waiting for his kind reply.

Jackpine

Jackpine

New Member
There is a wedge in the front for tilt. It's been awhile but I am almost sure you can move it forward and back.
ahmed said:
Hi Sign Man, I emailed you my email address which is ahmed@sun-signs.co.uk, thanks for your help.

Jackpine, I found only one screw fixing the print head to the holder which cannot be moved as the screw washer sits in its housing.

I've contacted Macdaddy asking for his help, waiting for his kind reply.
Click to expand...

A

ahmed

New Member
I found one screw but its on the colour print head, its tightened to the end, I will have another look tomorrow morning & see if I can find one for the black head, its 22:55 here in London now

A

ahmed

New Member
Thank you Jackpine for the email, I will read the manual & try to fix the problem.

My friend has the same machine (but with no fault), I was wondering if I print his parameter values & copy them to my printer, would that solve the problem?

A

ahmed

New Member
yes Macdaddy, sure I need your help please, I have some jobs to print & I dont know how to align the print head

A

ahmed

New Member
The printer is fixed, I followed the manual instructions & its up & running very well, thanks for everyones help.

Jackpine, you are a star, many thanks

A

astnt

New Member
how do I get into the maintenance mode to reset the head ranks, I just changed out both print heads and capping station and pump.Now what.

dj_elite

dj_elite

New Member
I know this thread is old, but I am in need of a service manual. Does anyone have a downloadable version?

G

gsi5150

New Member
i could use the manual or at least the head rank setup instructions. exp on how to adjust them, i cant find any screws and wedges i have a area behind the heads that have notches that are made of metal. and plastic caps that slide around the radius and on fron the same thing except horizontal. any help will be ar8'd
