Trying to find out which order the colors of the Test Print are in for a Roland VS-540i so I can find out which color is missing nozzles to flush with cleaning solution.

Looking closely at my test print I think the Color Order is Light Black, Cyan, Magenta, Yellow, Black, Light Magenta and Light Cyan. I just need someone to confirm that it is my Light Cyan that is missing nozzles in my test print.

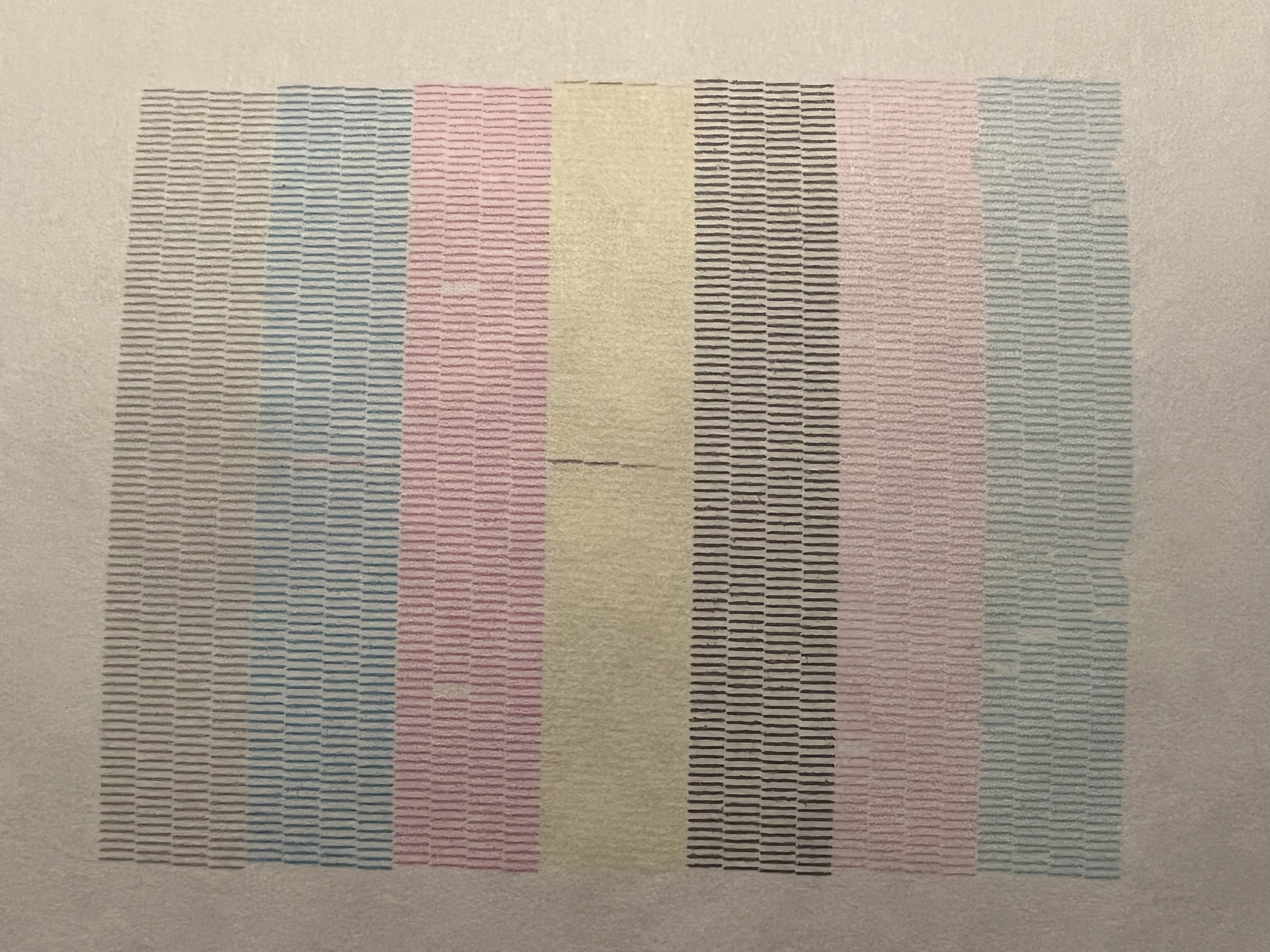

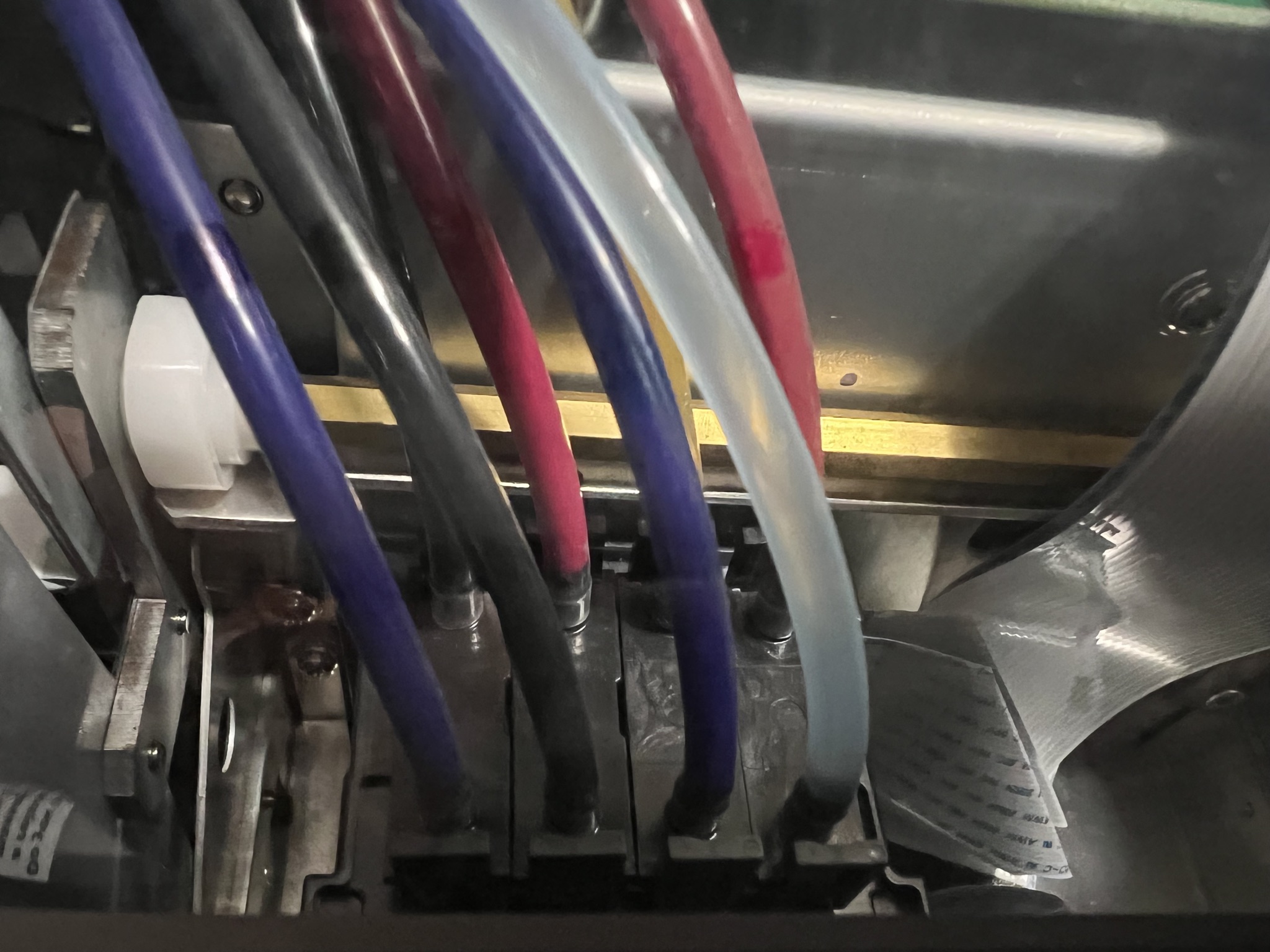

I have attached a picture of my test print and the view of my ink lines going to my dampers.

The cartridge order I have the printer setup with are Light Cyan, Cyan, Light Magenta, Magenta, Yellow, Black, Light Black and Cleaning Solution.

After I find which color is missing the nozzles do you think I should try flushing that ink line with cleaning solution then replace the damper and Cap top? What else should I do? Head soak?

Thanks,



[Applied Graphics WY]

Trying to find out which order the colors of the Test Print are in for a Roland VS-540i so I can find out which color is missing nozzles to flush with cleaning solution.

Looking closely at my test print I think the Color Order is Light Black, Cyan, Magenta, Yellow, Black, Light Magenta and Light Cyan. I just need someone to confirm that it is my Light Cyan that is missing nozzles in my test print.

I have attached a picture of my test print and the view of my ink lines going to my dampers.

The cartridge order I have the printer setup with are Light Cyan, Cyan, Light Magenta, Magenta, Yellow, Black, Light Black and Cleaning Solution.

After I find which color is missing the nozzles do you think I should try flushing that ink line with cleaning solution then replace the damper and Cap top? What else should I do? Head soak?

Thanks,

Your cartridges & ink line positions are the same as mine. Yes, it is light cyan that you are missing. I don't know a whole lot about how to fix but it looks to me like either a damaged print head or dried out ink. From what I have read on the subject, your line of thinking for possible fixes seems reasonable. Hopefully someone with more experience can also chime in here.



[netsol]

i know what i would try, having salvaged quite a few "bad" heads.

take a postagevor kitchen scale and figure out how much ink is in that cartridge
( weigh a full cartridge, weigh an empty, calculate how much ink is left.
add 5% acetone to the cartridge with a syringe
agitate cartridge
many people tell me this is not advisable but we have had very good luck.

adding more acetone can certainly be dangerous



[graphicsphere]

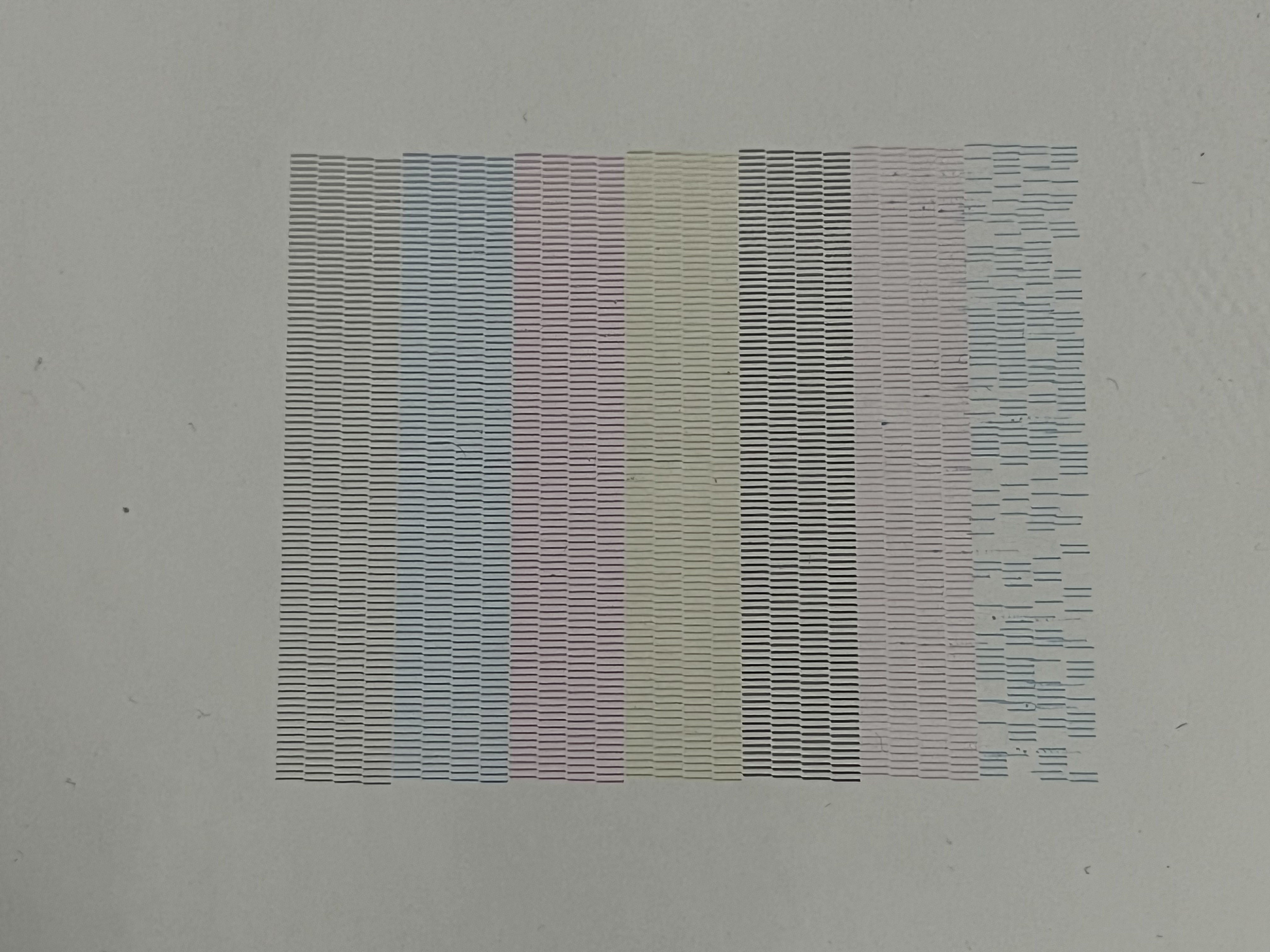

I ended up replacing the cap top then I plugged the drain line that is at the end of the drain bottle then filled the new cap to the top with cleaning fluid and let the head soak for 3 days. Then after I unplugged the drain line and did another cleaning and the new test print was almost 100%. I attached a picture of my new nozzle test after the head soak.

After I did some more printing I did some block printing of just light cyan which is the nozzles I was missing in the test print before. So after I did that I did another test print and the light cyan nozzles are starting to disappear again. So now should I try to replace the damper or what else would you recommend I replace.



[Zoogee World]

I would change the damper first and see. You can also check the lines to make sure there are no air leaks.
