First a word on the design. IMO, the "fold" of the ribbon should be at least as long as the ribbon is high......in this case, the ribbon is 5" high, so the fold is 5"...A bigger fold is great, but any shorter, the ribbon looks a little stiff.....IMO.

I make the ends in two layers to give it some depth.......it certainly can be done as a single piece and the basic process is the same (except for the glue-up).

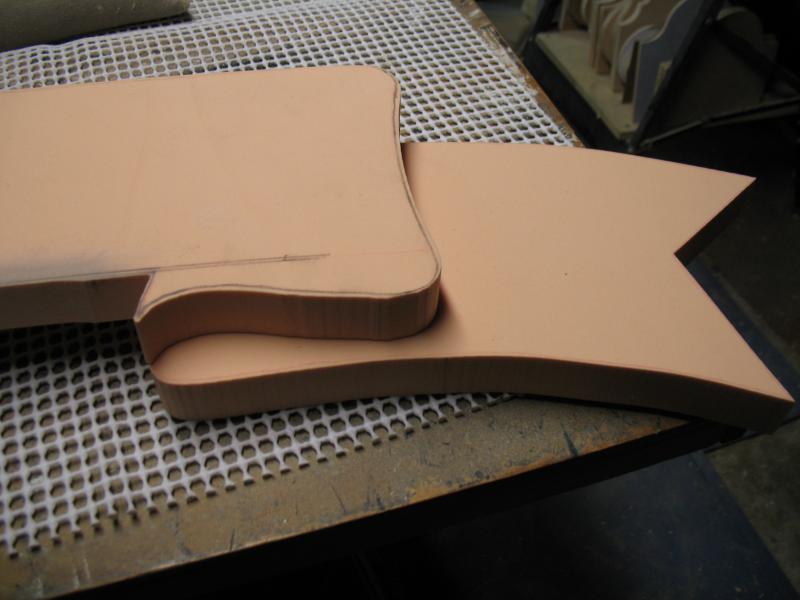

pic 1...top and ends cut out on a band saw.

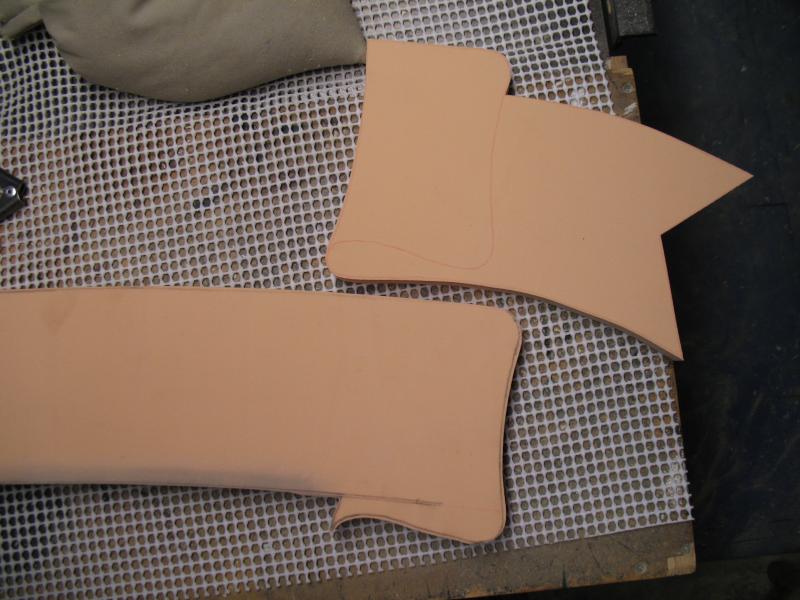

pic 2...how they look together

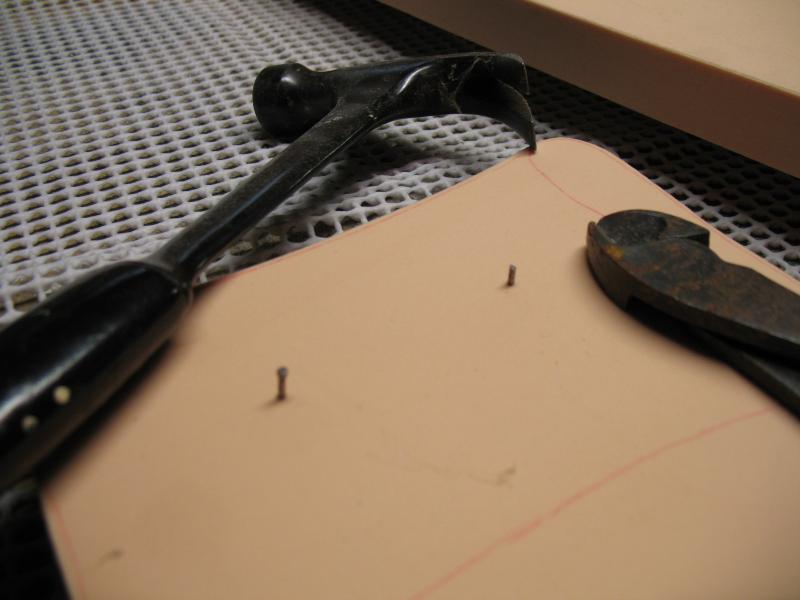

pic 3...I hammer two 1" brads into one piece and cut off the heads with wire cutters and press the top and bottom together.....this gives me good alignment when glueing and prevents the two pieces from sliding around when they are clamped.

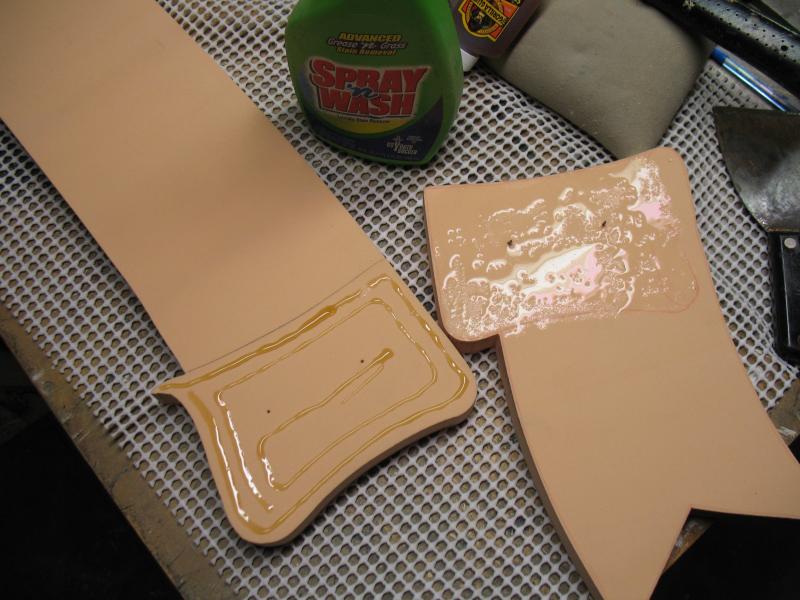

pic 4...Now spread gorilla glue, in thin beads, on one side and spray as much water as possible on the other......it CAN'T be TOO wet.

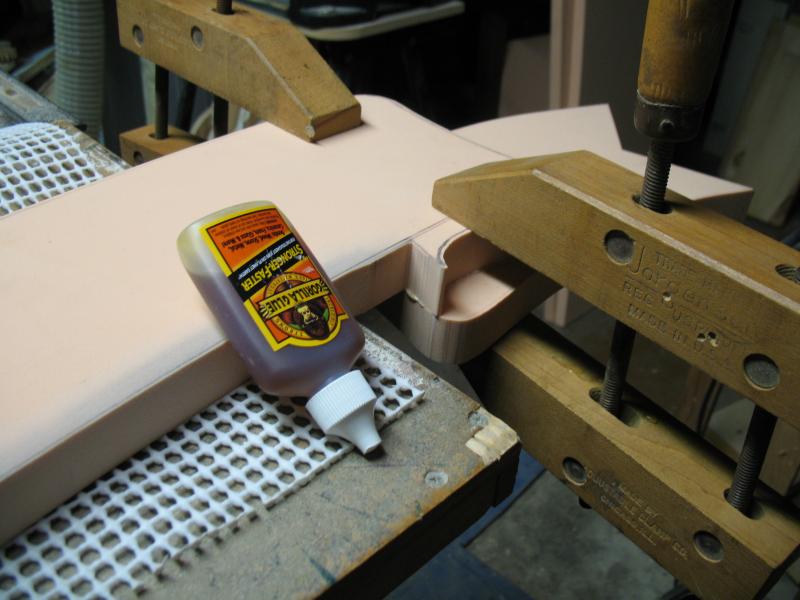

pic 5...clamp. Very quickly, what looks like little beads of water will show up on the seams. Within about a half hour, it will expand and look foamy. Start checking the foam to see if it's sticky.....if it is, wait a bit. As soon as the stickyness is gone......

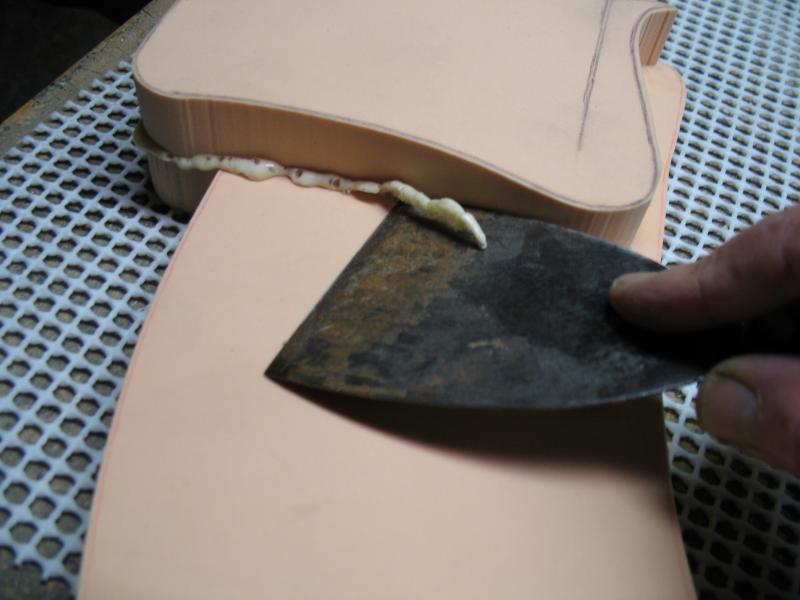

pic 6... remove the foam with any kind of dull blade. If you wait for the foam to harden, you may tear out pieces of hdu with the removal.

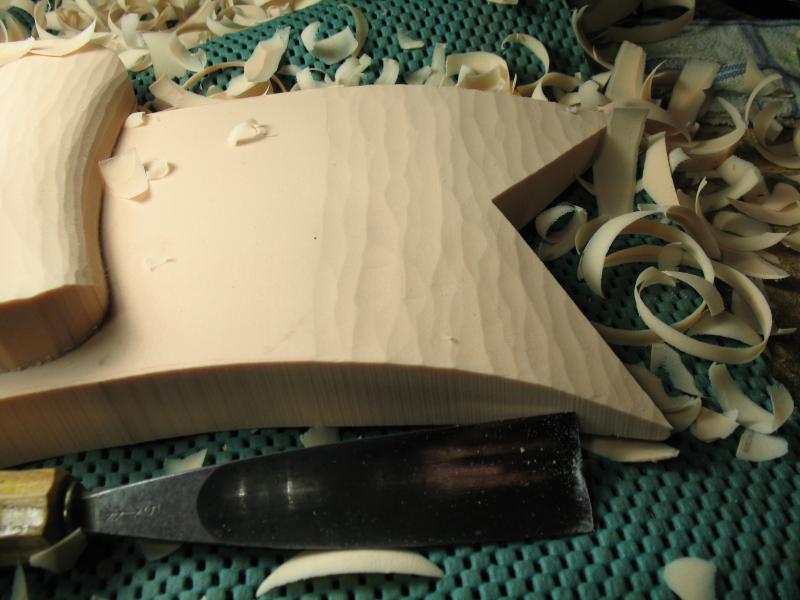

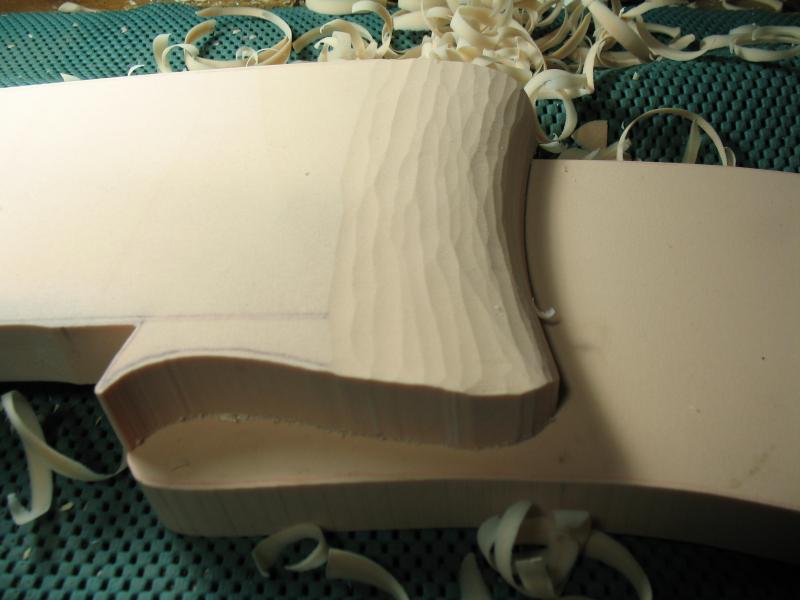

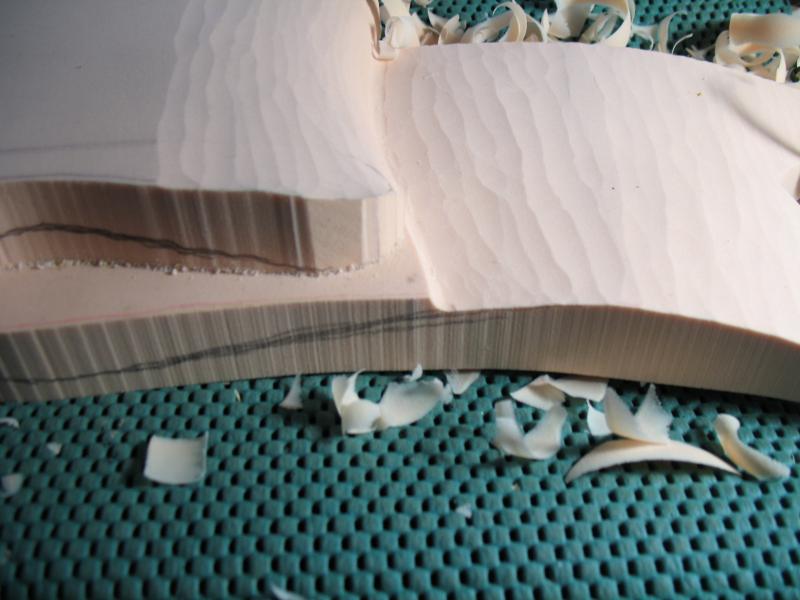

pic 7...using a somewhat flat gouge (#5 is ok), shape the top of the ribbon fold.

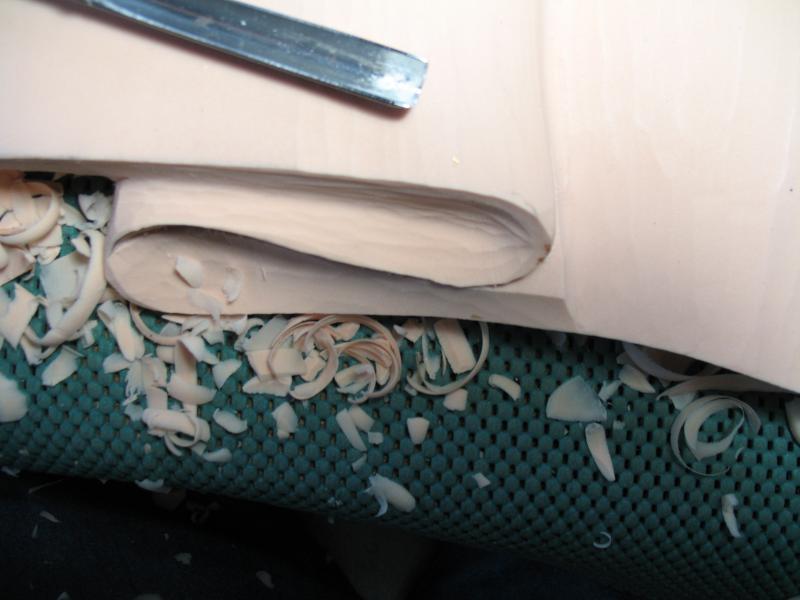

pic 8...do the same to the end.
pic 9...sketch the fold profile.
pic 10..using a veiner (a gouge with a very deep curve forming a complete "U"), set the depth of the ribbon return next to the fold.

I'll try to get some time later this afternoon and show the next stage.

Joe,

Makin Chip$ and Havin Fun!


Attachments

  • 026.jpg
    45 KB · Views: 60
  • 030.jpg
    41.5 KB · Views: 56
  • 031.jpg
    68.3 KB · Views: 47
  • 028.jpg
    56.5 KB · Views: 45
  • 022.jpg
    63.7 KB · Views: 62
  • 034.jpg
    45.4 KB · Views: 54
  • 036.jpg
    42.9 KB · Views: 61
  • 039.jpg
    56.3 KB · Views: 58
  • 045.jpg
    45.7 KB · Views: 52
  • 046.jpg
    38.9 KB · Views: 56

mrchips

Member

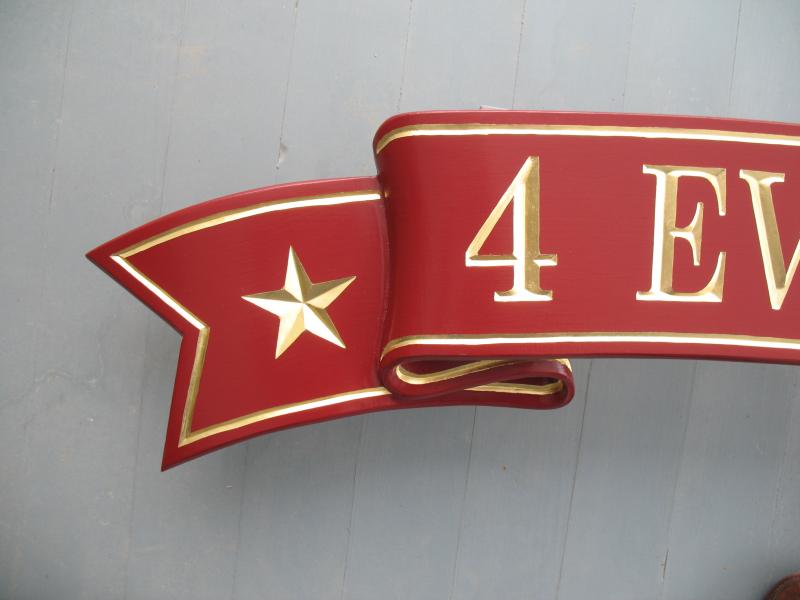

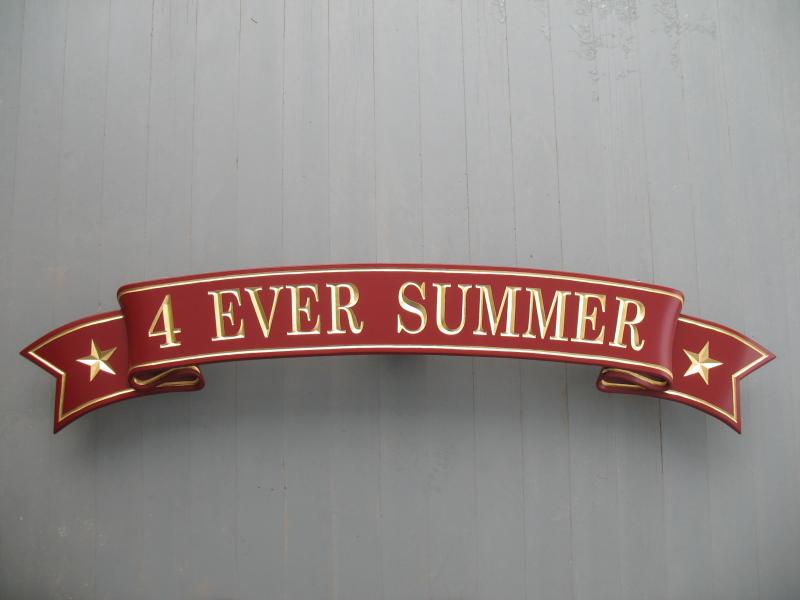

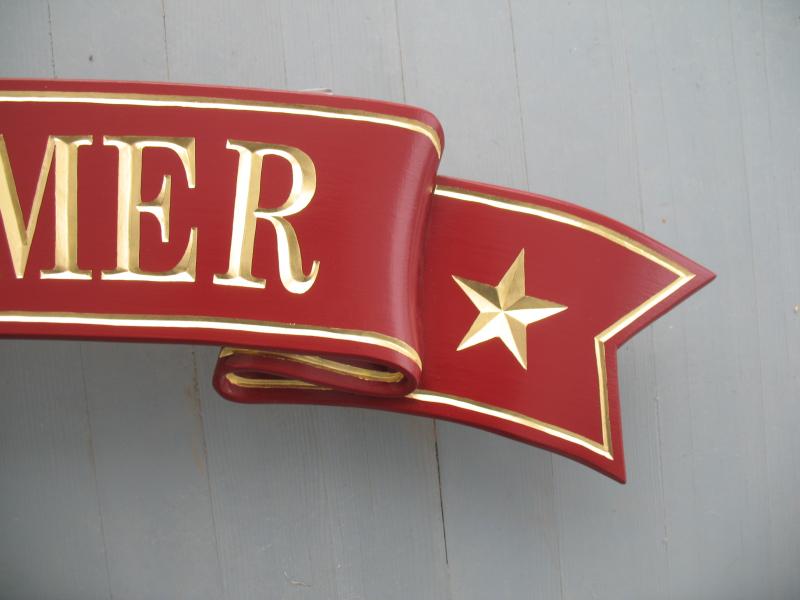

I'll throw these in now for those that didn't see the finished ribbon before.

Joe,

Makin Chip$ and Havin Fun!


Attachments

  • 007.jpg
    36.7 KB · Views: 61
  • 006.jpg
    38.2 KB · Views: 50
  • 004.jpg
    33.2 KB · Views: 51

SignManiac

Major Contributor
Joe, very nice step by step...I'd say you have it down pat! I've done a few over the years but never as nice as those..


mrchips

Member

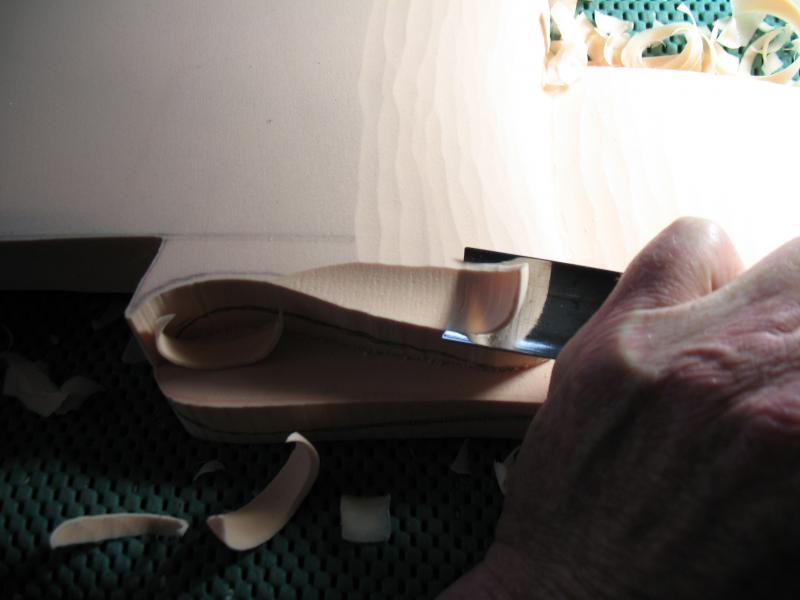

pic 11...here the ribbon end is carved against the fold.

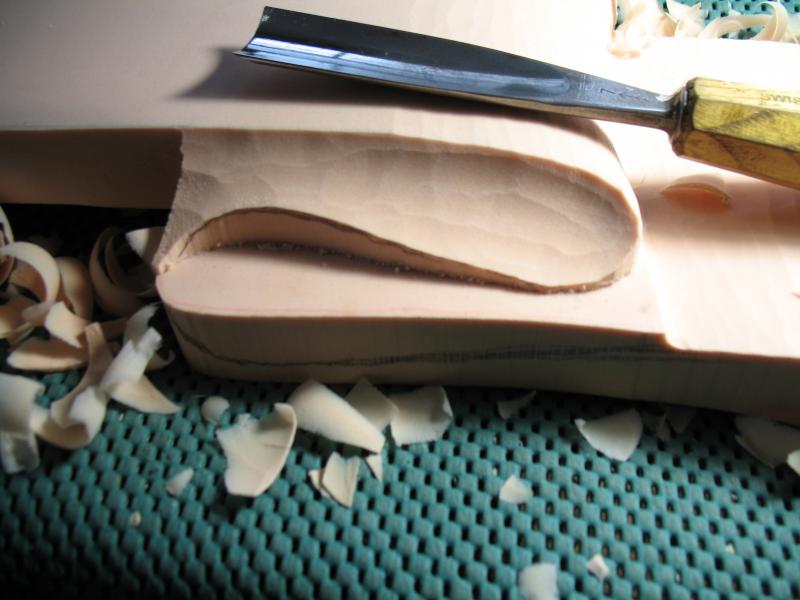

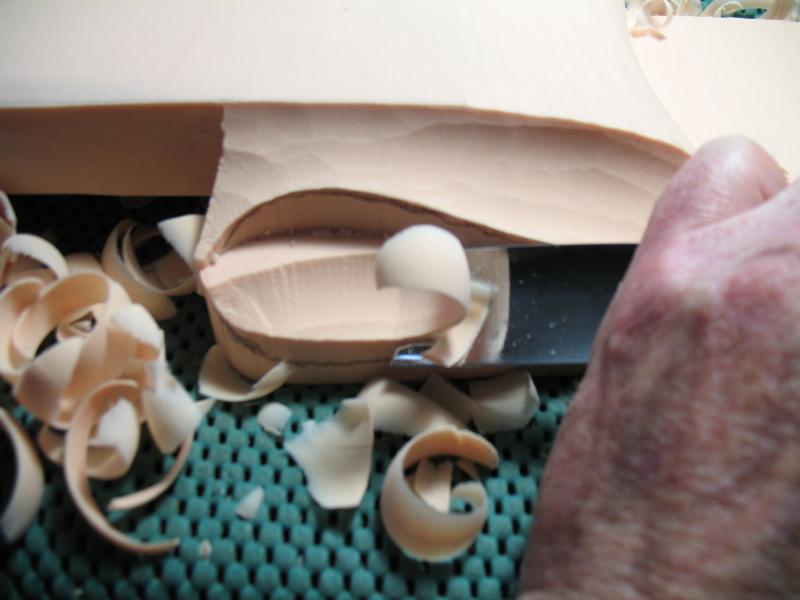

pic 12 & 13...now, usinga #7 22mm gouge, carve the hollow under the top ribbon.
pic 14...the lower hollow is carved the same way.

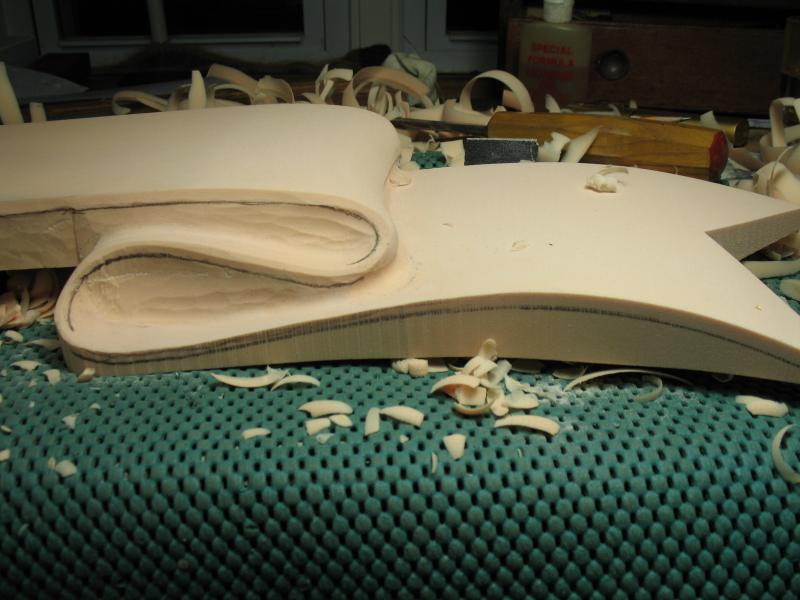

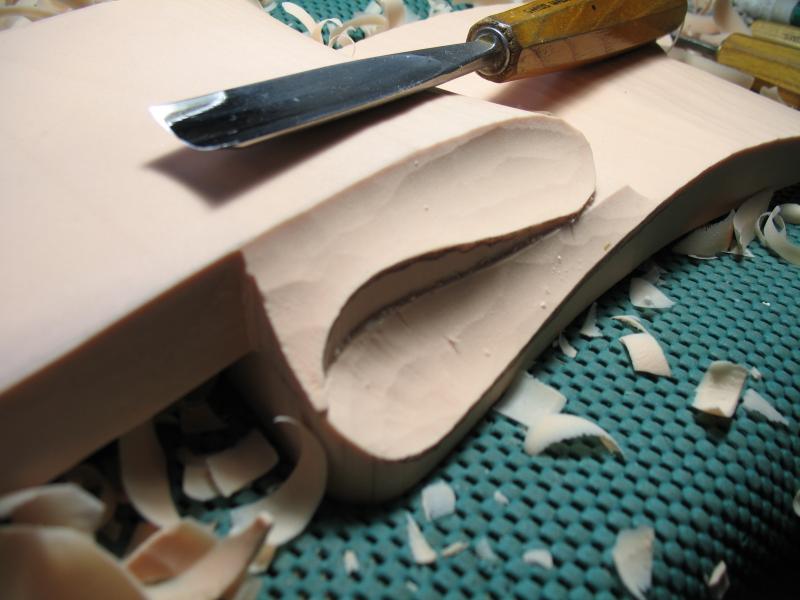

pic 15...shows both roughed out.

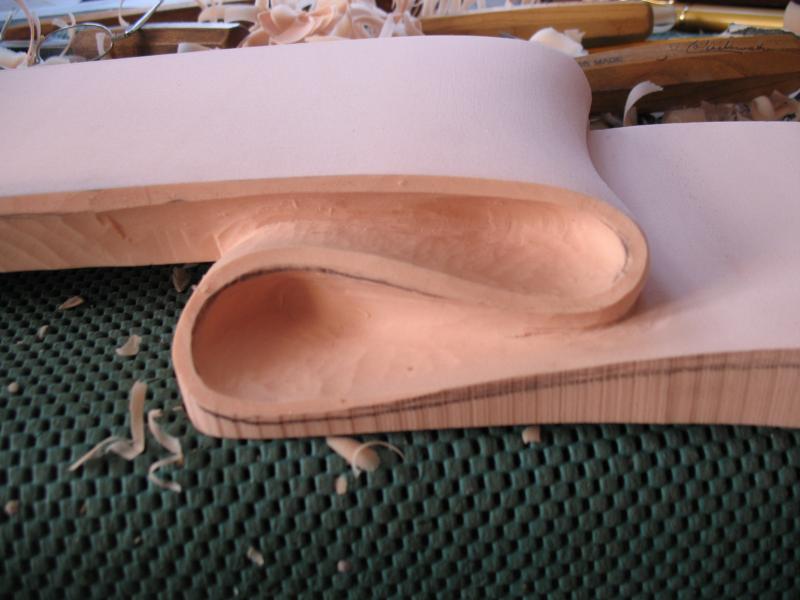

pic 16...using the veiner, the hollow is deepened and the flat of the lower ribbons take shape.
pic 17...the thickness of the ribbon is sketched in about 1/4 to 3/8" thick.
pic 18...the veiner is again used here to deepen the hollow under the top and middle ribbon. The visable tops of the ribbon should be flat and flow evenly. This completes the tops of the ribbons. It is now sanded and preped for painting.

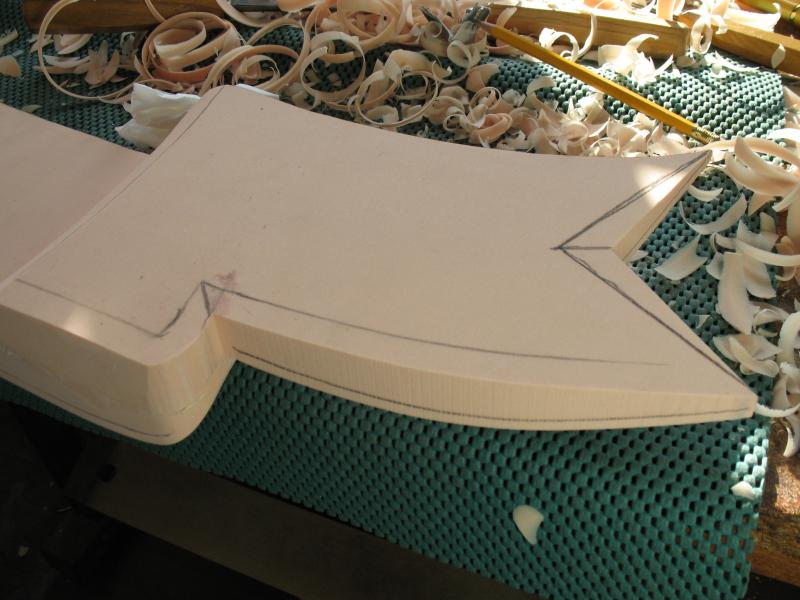

pic 19..Here, I've marked the undercutting of the remaining edges of the ribbon. The edge of the ribbon should be marked as thick as I did the folds and I set it back about 3/4"

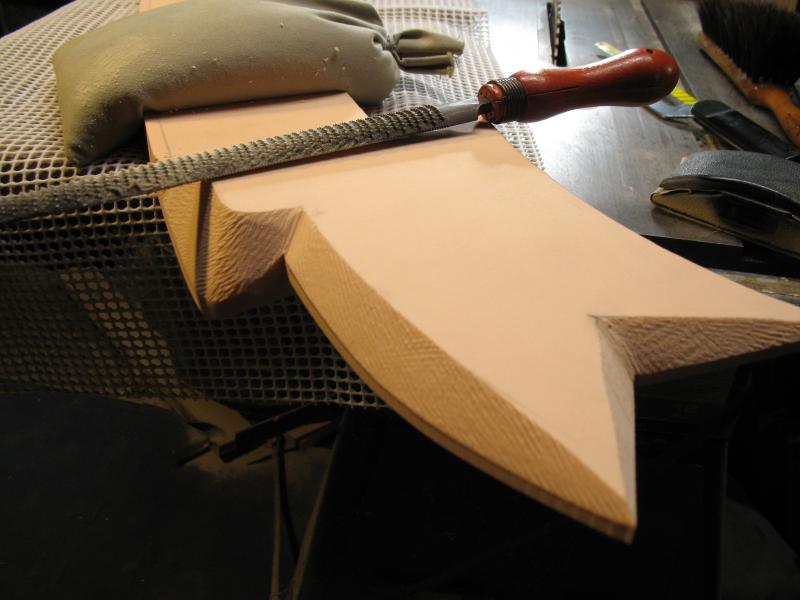

pic 20...I used a rasp and sandpaper to quickly create the undercut.

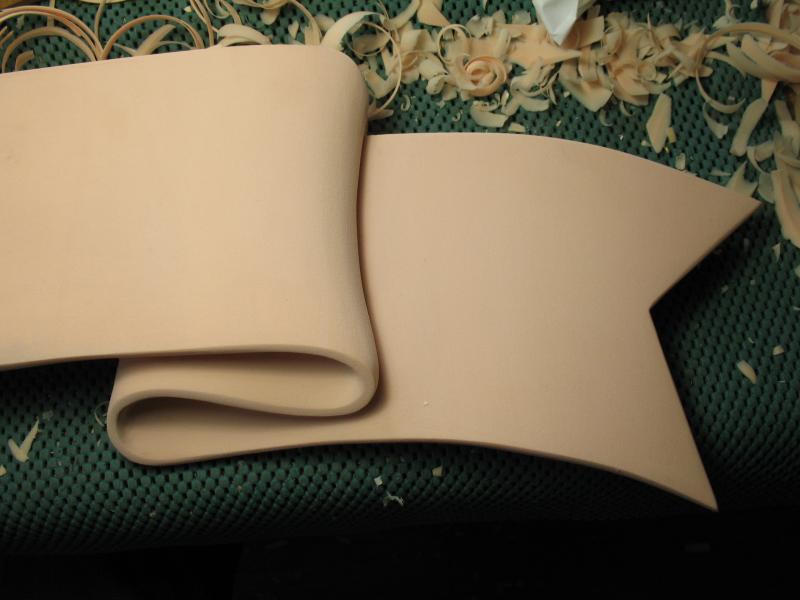

pic 21...here she is all sanded up ready for paint.
pic 22...I glue and screw galvanized brick ties to the back for wall mounting. It will be hung in an elevated position so the mounting won't be visable from the ground.

That's it! I'm sorry for some of the blurry photos :banghead:

I'll do my best to answer questions. Hope this helped get someone started carving one of the most visable icons from the "Ship Carving" days of old.

Thanks for following along.

Joe,

Makin Chip$ and Havin Fun!


Attachments

  • 047.jpg
    52.2 KB · Views: 51
  • 048.jpg
    33.4 KB · Views: 60
  • 049.jpg
    53.3 KB · Views: 68
  • 052.jpg
    41.9 KB · Views: 54
  • 053.jpg
    51.2 KB · Views: 54
  • 056.jpg
    45.3 KB · Views: 77
  • 059.jpg
    58.6 KB · Views: 58
  • 060.jpg
    49.8 KB · Views: 56
  • 066.jpg
    63.9 KB · Views: 61
  • 069.jpg
    48.9 KB · Views: 60
  • 078.jpg
    43.1 KB · Views: 62
  • 008.jpg
    23.1 KB · Views: 52

mrchips

Member
oooops,

Someone always asks "how long did it take?" and "How Much?"

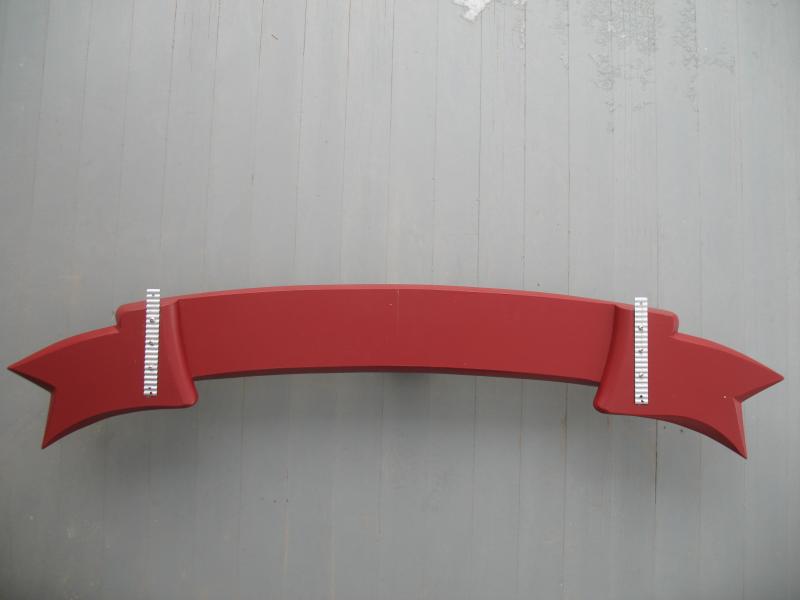

Each end takes close to 1 1/2hrs to carve. The back undercuts and sanding take about 2 hours. Total of 5 hours. I charged $450 (includes 3 coats of paint....1 primer and 2 topcoats.....latex) for the ribbon plus the gilded lettering.
