More Recent Wraps...
- Thread starter grafixemporium
- Start date
grafixemporium
New Member
grafixemporium
New Member
Mason
New Member
Nice, I like it very much
grafixemporium
New Member
The door handles? Those are removed prior to installing the vinyl... along with side mirrors, window rubber, emblems, etc.
Sign Works
New Member

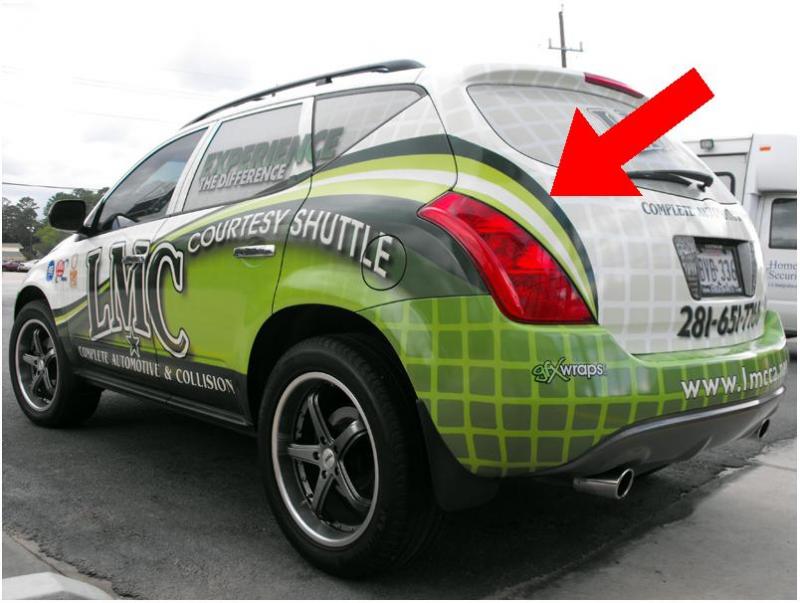

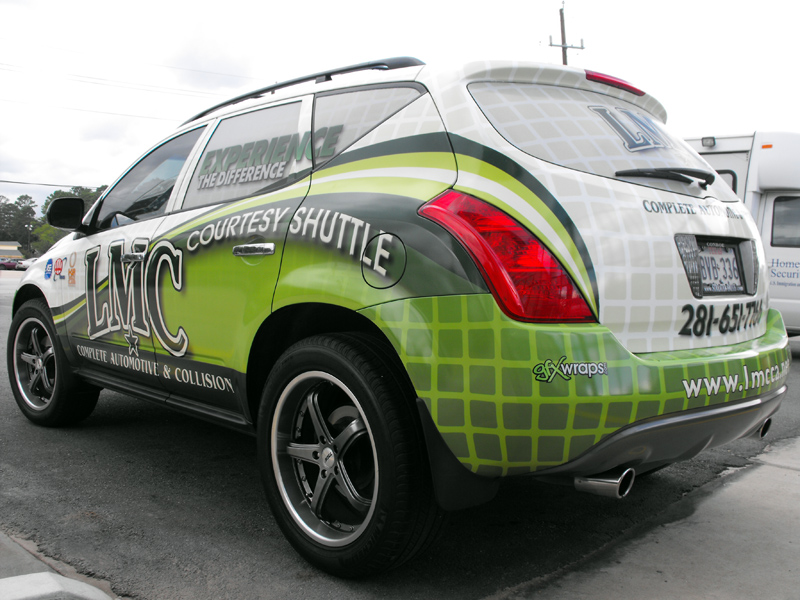

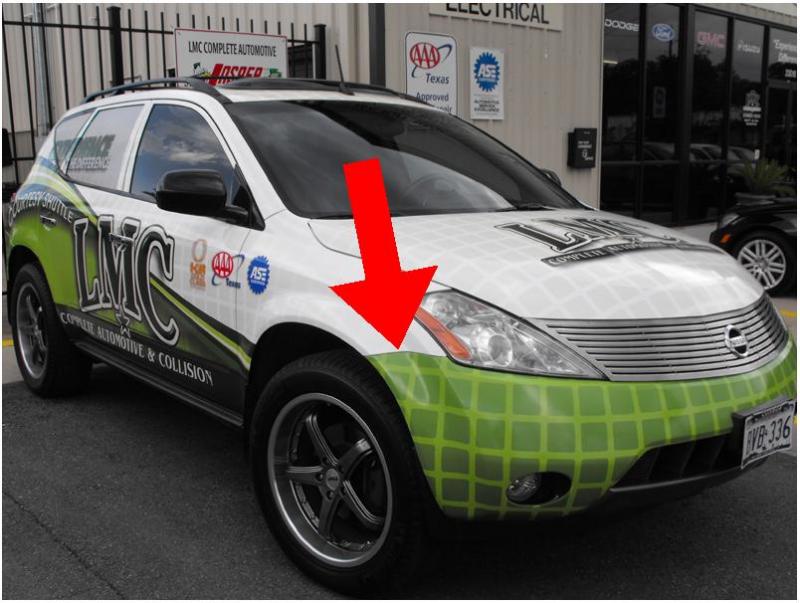

GFX, I've got a question, Is the green stripe section on the tail gate overlaid on the beige chex pattern? (right above the taillight) seems like it would have been difficult to have it line up properly otherwise. Also seems the same technique might have been needed on the green chex pattern from the front bumper to the fender. I have limited wrap experience and am curious as to how these areas were managed, care to elaborate?
By the way the work looks top notch.
By the way the work looks top notch.
Attachments
Jack Knight1979
New Member
I second the request.
Fuzzbuster
New Member
Nice work!
Did you template the boat??
and Third request for the tailight
Did you template the boat??
and Third request for the tailight
grafixemporium
New Member
Sign Works: Awesome question! It was only a matter of time before someone noticed that. Sure enough the stripes carrying on to the rear tailgate area are a seperate piece printed and overlayed on top of the wrap. It was the only way to get it perfect. Even then we had to draw a template on each side so the stripes lined up with the stripes on the sides.

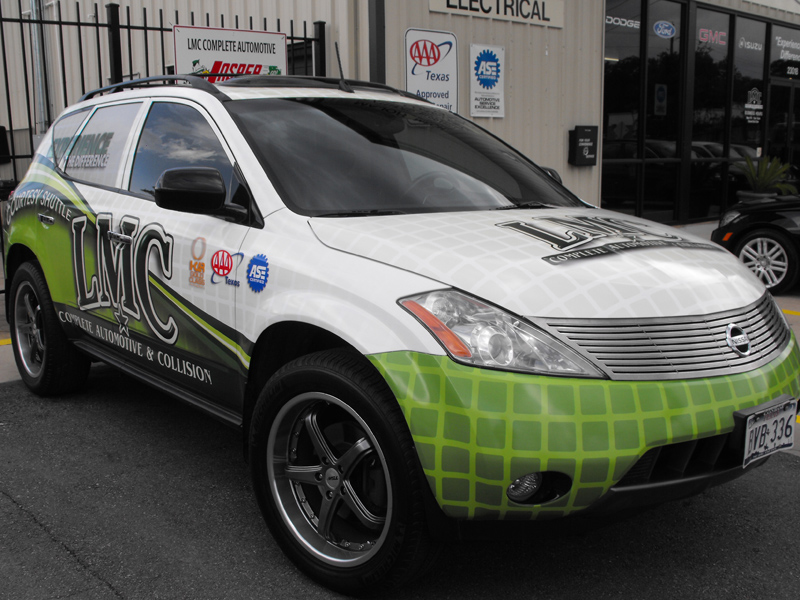

The front bumper was a design choice. In retrospect it could have flowed a little better. Cars these days are crazy... a bumper isn't a bumper anymore. You can't really always treat it as a separate piece.

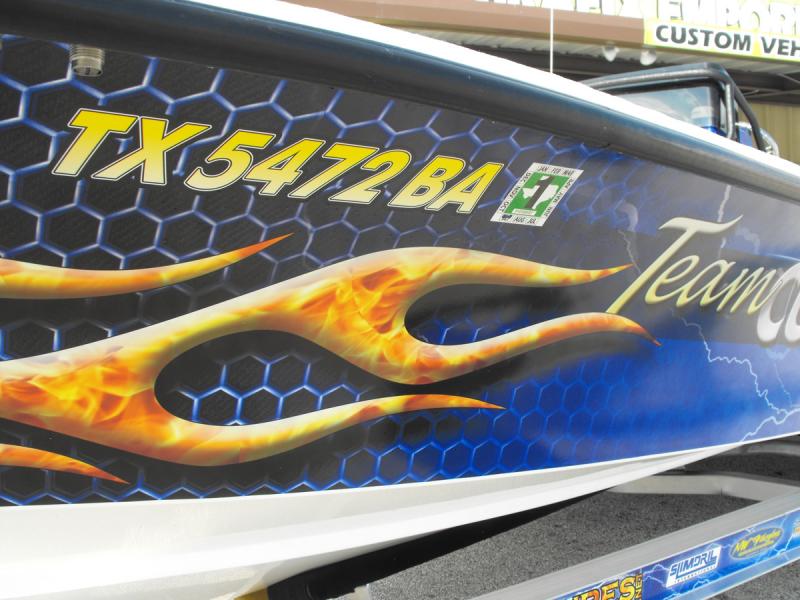

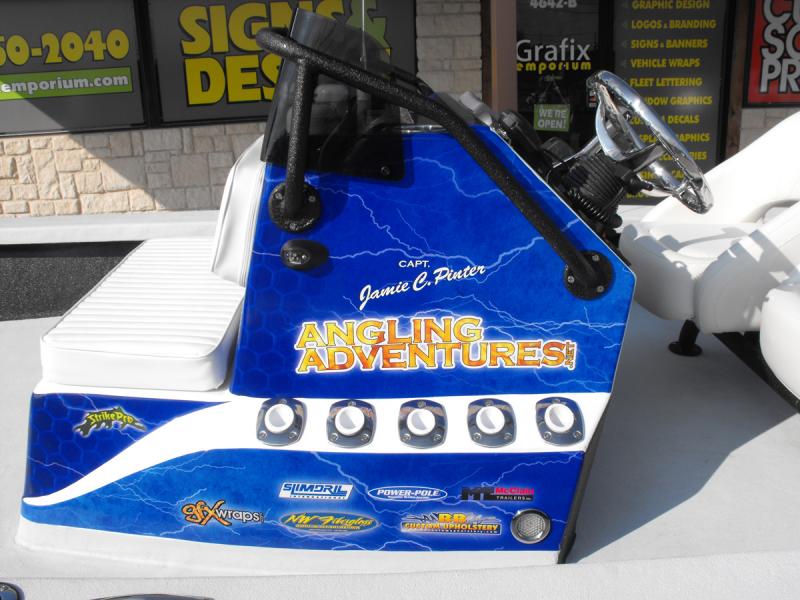

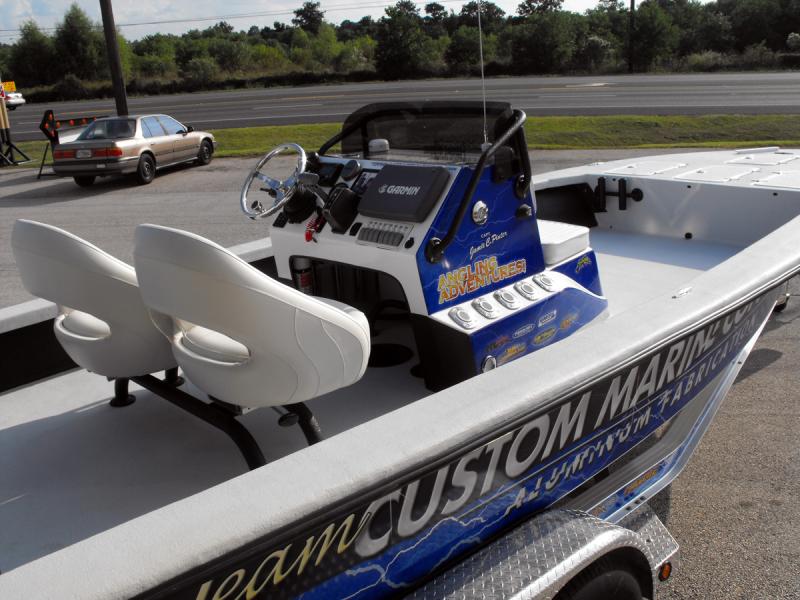

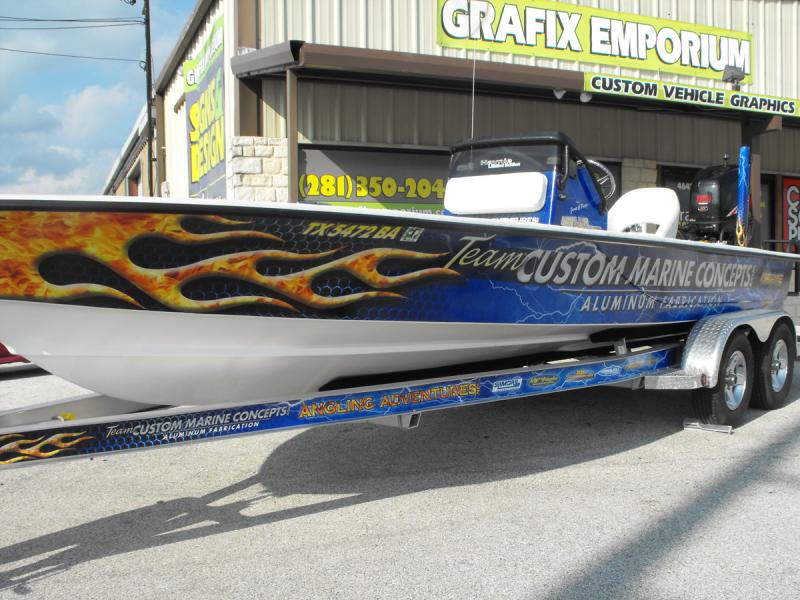

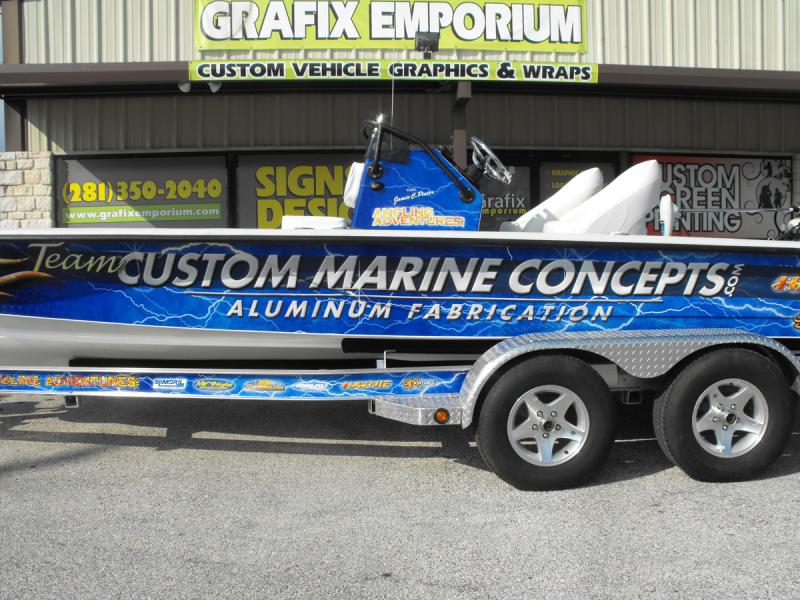

Fuzzbuster: We always make a paper pattern of boats before laying out the graphics. There simply is no other way. Boats have too many crazy compound curves that appear subtle, but when stretched over the length of the boat really make a huuuge difference on where things fall in the wrap. If you make a pattern then throw it up on wall and take a picture of it, you have a perfect template for laying out your graphics.
SSG Sign: Yes, the door panels always have to come off to remove the door handles. Some sideview mirrors can be removed without taking off the entire door panel, though. We remove them every time though. Our customers know that we strip the cars during the prep stage of the install in order to provide a seamless, paint-like finish product. So, yes, we have permission. In reality, not only does stripping the car make the install easier because you have less obstacles, it also protects the paint finish. When you strip everything, most of your trimming is done in areas that are covered by rubber, door handles, etc. There are very few people I'd trust with an exacto blade trimming out vinyl my truck's paint... that's for sure.
The front bumper was a design choice. In retrospect it could have flowed a little better. Cars these days are crazy... a bumper isn't a bumper anymore. You can't really always treat it as a separate piece.
Fuzzbuster: We always make a paper pattern of boats before laying out the graphics. There simply is no other way. Boats have too many crazy compound curves that appear subtle, but when stretched over the length of the boat really make a huuuge difference on where things fall in the wrap. If you make a pattern then throw it up on wall and take a picture of it, you have a perfect template for laying out your graphics.
SSG Sign: Yes, the door panels always have to come off to remove the door handles. Some sideview mirrors can be removed without taking off the entire door panel, though. We remove them every time though. Our customers know that we strip the cars during the prep stage of the install in order to provide a seamless, paint-like finish product. So, yes, we have permission. In reality, not only does stripping the car make the install easier because you have less obstacles, it also protects the paint finish. When you strip everything, most of your trimming is done in areas that are covered by rubber, door handles, etc. There are very few people I'd trust with an exacto blade trimming out vinyl my truck's paint... that's for sure.
grafixemporium
New Member
Thanks Allen. Yup, these are all done with 180c v3 and 8519. Haven't had any reason to try the 380 yet.
